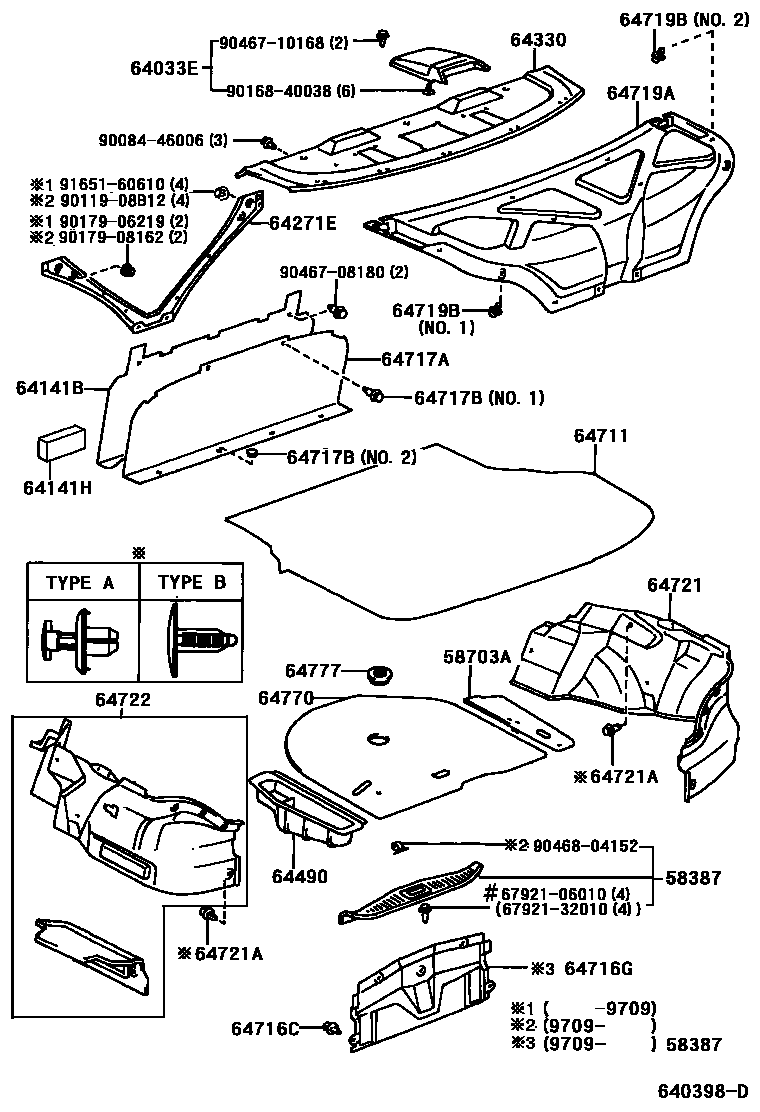

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-AC010iMCX10199503-199709

main58387-AC020iMCX10199709

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06010iMCX10199503

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-AC010-E3iMCX10199503-199608

ADOBE,TRIM4#

main64033-AC010-E5iMCX10199608-199709

DK. ADOBE,TRIM4#

main64033-AC010-E6iMCX10199709-200002

ROSE STONE,TRIM4#

64141BSILENCER, BACK PANEL, NO.1

main64141-07010iMCX10199704

64141HSILENCER, BACK PANEL, NO.1

main64141-AC010×2iMCX10199508-199703

64271EPANEL, ROOM PARTITION

main64241-07010iMCX10199709

main64241-AC010iMCX10199503-199709

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-AC010-E1iMCX10199503-199709

ADOBE,TRIM4#

main64330-AC011-E2iMCX10199709

ROSE STONE,TRIM4#

main64330-AC020-E1iMCX10199503-199709

main64330-AC021-E2iMCX10199709

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-06010-C0iMCX10199503

BLACK,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-AC030-C0iMCX10199503-199709

BLACK,TRIM4#

main64711-AC040-C0iMCX10199503-199709

main64711-AC070-C0iMCX10199709

BLACK,TRIM4#

main64711-AC080-C0iMCX10199709

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07138×2iMCX10199801

main90467-07146×2iMCX10199709-199801

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-AC010-C1iMCX10199503-199709

BLACK,TRIM4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-AC010-C1iMCX10199503-199709

BLACK,TRIM4#

main64717-AC020-C0iMCX10199709

BLACK,TRIM4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08150×2iMCX10199503-199709

main90467-09156-C0×4iMCX10199503

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-AC010-C1iMCX10199503-199709

BLACK,TRIM4#

main64719-AC020-C0iMCX10199709

BLACK,TRIM4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07117×10iMCX10199709-199801

main90467-07138×14iMCX10199801

main90467-07146×2iMCX10199801

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-AC010-C1iMCX10199503-199709

BLACK,TRIM4#

main64721-AC020-C0iMCX10199709

BLACK,TRIM4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0×4iMCX10199503-199710

sub90467-06175

main90467-07146×10iMCX10199710

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64720-AC020-C0iMCX10199709-200002

main64722-AC010-C1iMCX10199503-199709

BLACK,TRIM4#

main64722-AC020-C1iMCX10199503-199608

main64722-AC030-C0iMCX10199709-200002

BLACK,TRIM4#

64770COVER ASSY, SPARE WHEEL

main64770-AA010iMCX10199503-199511

main64770-AC010iMCX10199512

64777CLAMP, SPARE WHEEL COVER

main64777-32030iMCX10199503

6792106010RETAINER, FRONT DOOR SCUFF PLATE

main67921-06010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9008446006

main90084-46006

9011908B12

main90119-08B12

9016840038

main90168-40038

9017906219

main90179-06219

9017908162

main90179-08162

9046708180

main90467-08180

9046710168

main90467-10168

9046804152

main90468-04152

9165160610

main91651-60610

31 parts on this diagram · 1 diagram in section
