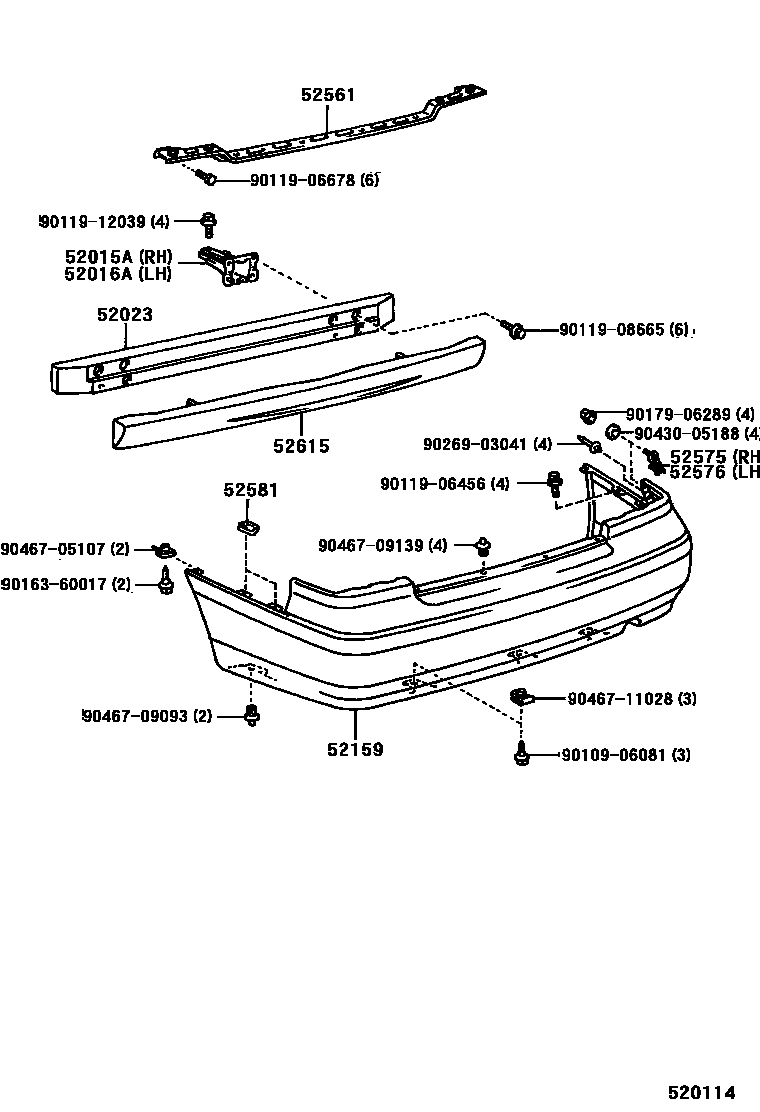

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-AC010iMCX10199503-199709

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-AC010iMCX10199503-199709

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-AC010iMCX10199503-199709

52159COVER, REAR BUMPER

main52159-AC010-A1iMCX10199503-199709

SUPER WHITE PEARL MC,051

main52159-AC010-H0iMCX10199503-199709

DK.TEAL GREEN MC.,751

main52159-AC010-J0iMCX10199503-199608

DK.BLUE M.M.,8K0

main52159-AC010-J1iMCX10199608-199709

DK.BLUE M.M.,8L3

main52159-AC020-A0iMCX10199709-200002

S.WHITE PM/FLAXEN MM,28Y

main52159-AC020-G1iMCX10199709-200002

DK.GREEN M.M.,6P2

main52159-AC020-J0iMCX10199709-200002

DK.BLUE M.M.,8L3

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-AC010iMCX10199503-199709

main52561-AC020iMCX10199709

52575RETAINER, REAR BUMPER SIDE, RH

main52575-AC010iMCX10199503

52576RETAINER, REAR BUMPER SIDE, LH

main52575-AC010iMCX10199503

52581PROTECTOR, REAR BUMPER, RH

main52581-AC010×2iMCX10199503

52615ABSORBER, REAR BUMPER ENERGY

main52615-AC010iMCX10199503-199709

main52615-AC020iMCX10199709

9010906081

main90109-06081

9011906456

main90119-06456

9011906678

main90119-06678

9011908665

main90119-08665

9011912039

main90119-12039

9016360017

main90163-60017

9017906289

main90179-06289

9026903041

main90269-03041

9043005188

main90430-05188

9046705107

main90467-05107

9046709093

main90467-09093

9046709139

main90467-09139

9046711028

main90467-11028

22 parts on this diagram · 2 diagrams in section
