FRONT AXLE ARM & STEERING KNUCKLE

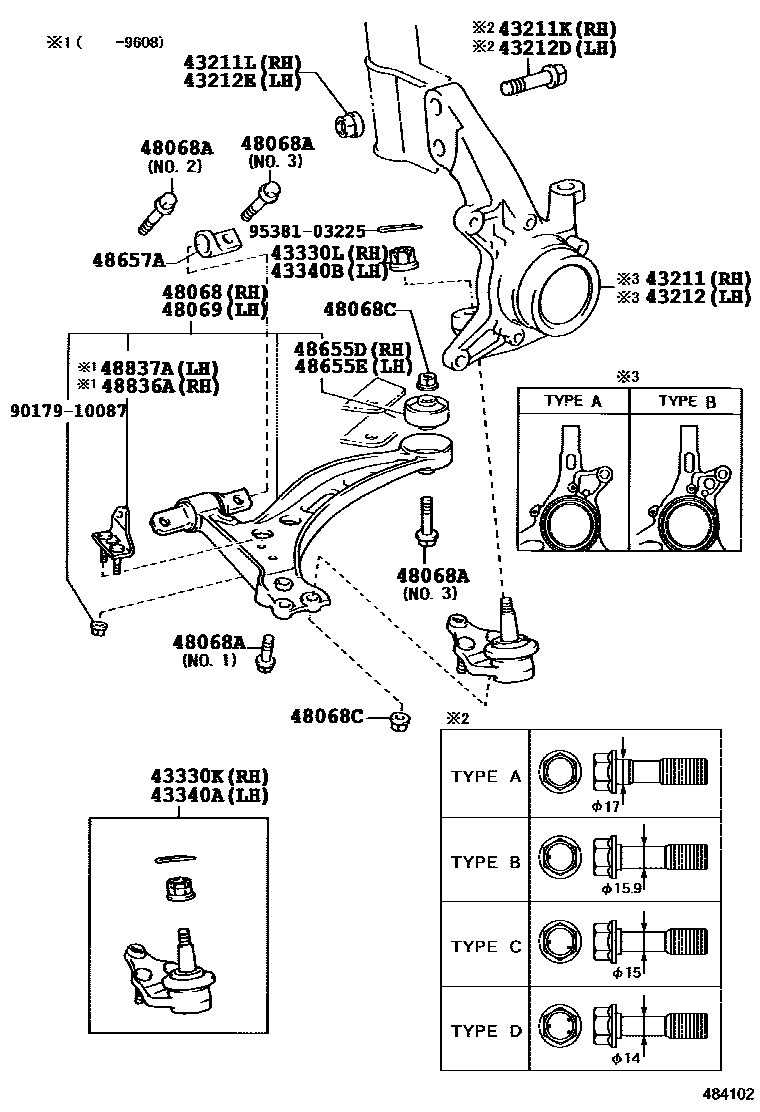

Parts diagram
43211KNUCKLE, STEERING, RH
main43211-06020i199503-199505
sub43211-06021
sub90389-16020
main43211-06021i199505-199608
main43211-06050i199503-199505
sub43211-06051
sub90389-16020
main43211-06070i199608
main43211-33060i199607
43211KBOLT (FOR STEERING KNUCKLE RH)
main90105-17001i199503
main90105-17003i199503
main90105-17004i199503
main90105-17005i199503
43211LNUT (FOR STEERING KNUCKLE RH)
main90179-17001i199503
43212KNUCKLE, STEERING, LH
main43212-06020i199503-199505
sub43212-06021
sub90389-16020
main43212-06021i199505-199608
main43212-06050i199503-199505
sub43212-06051
sub90389-16020
main43212-06070i199608
main43212-33060i199607
43212DBOLT (FOR STEERING KNUCKLE LH)
main90105-17001i199503
main90105-17003i199503
main90105-17004i199503
main90105-17005i199503
43212ENUT (FOR STEERING KNUCKLE LH)
main90179-17001i199503
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-09050i199503
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-14003i199503
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43330-09050i199503
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-14003i199503
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-06040i199608-199701
main48068-06040i199701-199709
main48068-06050i199605-199608
main48068-07010i199503-199605
sub48068-06050
main48068-07030i199710
main48068-08010i199709-199710
sub48068-08011
main48068-33020i199503-199608
main48068-33030i199608-199701
sub48068-33031
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
main90080-10065i199702-199709
main90105-12122i199709
main90105-12216i199503-199709
main90105-14081i199503
main90105-14084i199503
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
main90179-12052i199709
BALL JOINT SIDE
main90179-12103i199503-199709
BALL JOINT SIDE
main90179-14048i199503
BODY SIDE
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-06040i199608-199709
main48069-06050i199605-199608
main48069-07010i199503-199605
sub48069-06050
main48069-07030i199710
main48069-08010i199709-199710
sub48069-08011
main48069-33020i199503-199608
main48069-33030i199608-199701
sub48069-33031
48655DBUSH, FRONT LOWER ARM, NO.2 RH
main48655-07020i199710
main48655-08010i199709-199710
48655EBUSH, FRONT LOWER ARM, NO.2 LH
main48655-07020i199710
main48655-08010i199709-199710
48657ASTOPPER, FRONT LOWER ARM BUSH
main48657-33010i199503-199604
sub48657-33020
main48657-33020i199604
48836ABRACKET, FRONT STABILIZER END, RH
main48836-33011i199503-199608
48837ABRACKET, FRONT STABILIZER END, LH
main48837-33011i199503-199608
9017910087
main90179-10087
9538103225
main95381-03225

21 parts on this diagram · 1 diagram in section
