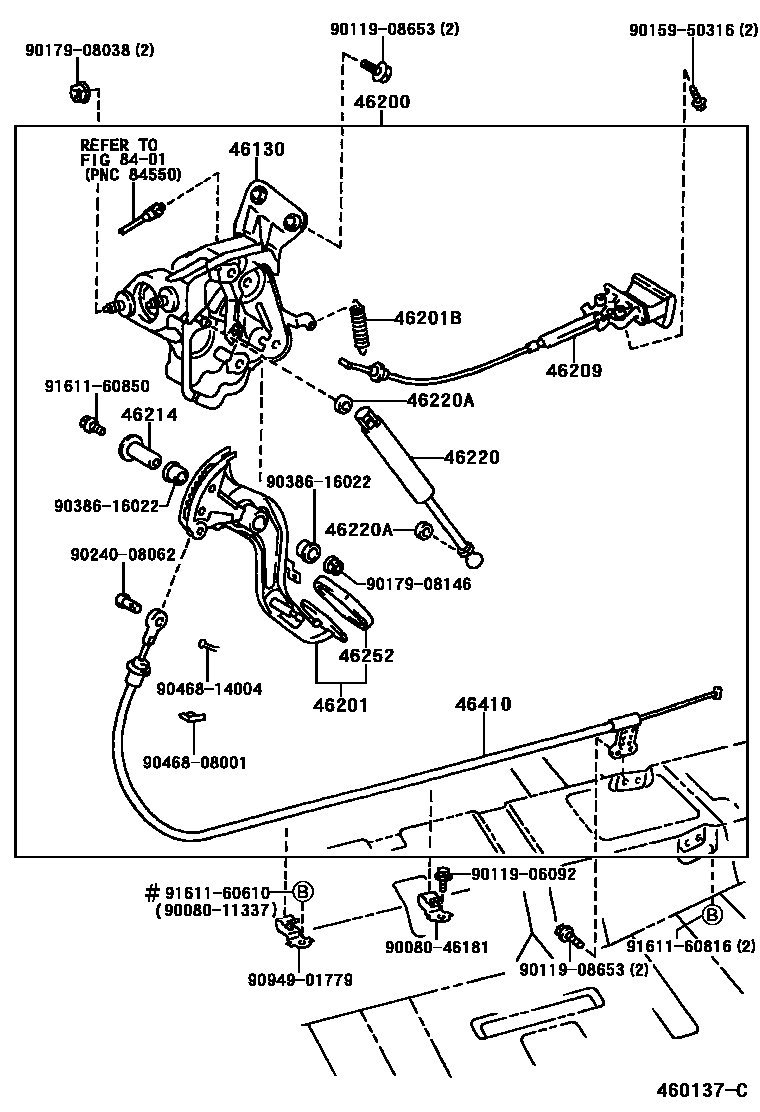

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-07010iMCX10199503

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-07030-E0iMCX10199503-199709

ADOBE,TRIM4#

main46200-07030-E1iMCX10199709

QUARTZ,TRIM4#

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-07020iMCX10199503

46201BSPRING, TENSION

main90507-16023iMCX10199503

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-41020-E0iMCX10199503-199609

ADOBE,TRIM4#

main46209-41021-E0iMCX10199609-199709

ADOBE,TRIM4#

main46209-41021-E1iMCX10199709

QUARTZ,TRIM4#

46214BOSS, PARKING BRAKE PEDAL

main46214-07030iMCX10199503

46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN

main46220-30010iMCX10199503

46220ACUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

main90540-07010×2iMCX10199503

46252PAD, PARKING PEDAL

main46252-07010iMCX10199503

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-07030iMCX10199503

8401

9008011337

main90080-11337

9008046181

main90080-46181

9011906092

main90119-06092

9011908653

main90119-08653

9015950316

main90159-50316

9017908038

main90179-08038

9017908146

main90179-08146

9024008062

main90240-08062

9038616022

main90386-16022

9046808001

main90468-08001

9046814004

main90468-14004

9094901779

main90949-01779

9161160610

main91611-60610

9161160816

main91611-60816

9161160850

main91611-60850

26 parts on this diagram · 4 diagrams in section
