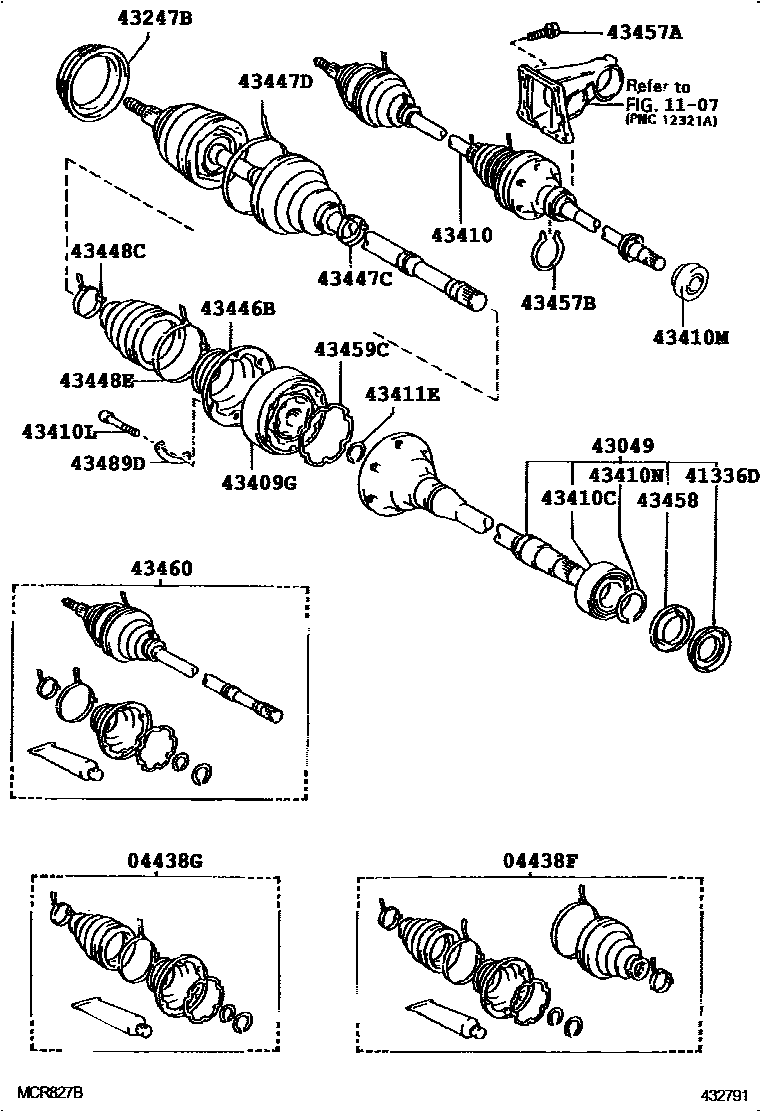

FRONT DRIVE SHAFT

0001 1RH,TYPE A 0002 1LH,TYPE A 0003 1RH,TYPE B 0004 1LH,TYPE B

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06060iMCX10199503-199608

sub04438-06062

main04438-06100iMCX10199608-199610

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06050iMCX10199503-199608

sub04438-06052

main04438-06090iMCX10199608-199610

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iMCX10199503

43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE

main43049-06020iMCX10199503-199610

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iMCX10199503

43409GJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH

main43409-06010iMCX10199503-199610

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06080iMCX10199503-199608

main43410-06170iMCX10199608-199610

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-41001iMCX10199503

sub90363-41002

43410LBOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)

main90080-11034×6iMCX10199503-199610

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40010iMCX10199503

sub90311-40028

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iMCX10199503

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52036iMCX10199503-199610

43446BCOVER, FRONT AXLE INBOARD JOINT, RH

main43446-03020iMCX10199503-199610

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06060iMCX10199608

main90080-46084iMCX10199503-199608

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06070iMCX10199608-199610

main90080-46109iMCX10199503-199608

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90080-46084iMCX10199610-199705

main90080-46106iMCX10199503-199608

main90080-46238iMCX10199705

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90080-46173iMCX10199503

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCX10199503

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iMCX10199503

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iMCX10199503

43459CGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43459-06010iMCX10199503-199610

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09180iMCX10199503-199608

main43470-09340iMCX10199608

43489DWASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43489-03010×3iMCX10199503-199608

24 parts on this diagram · 4 diagrams in section
