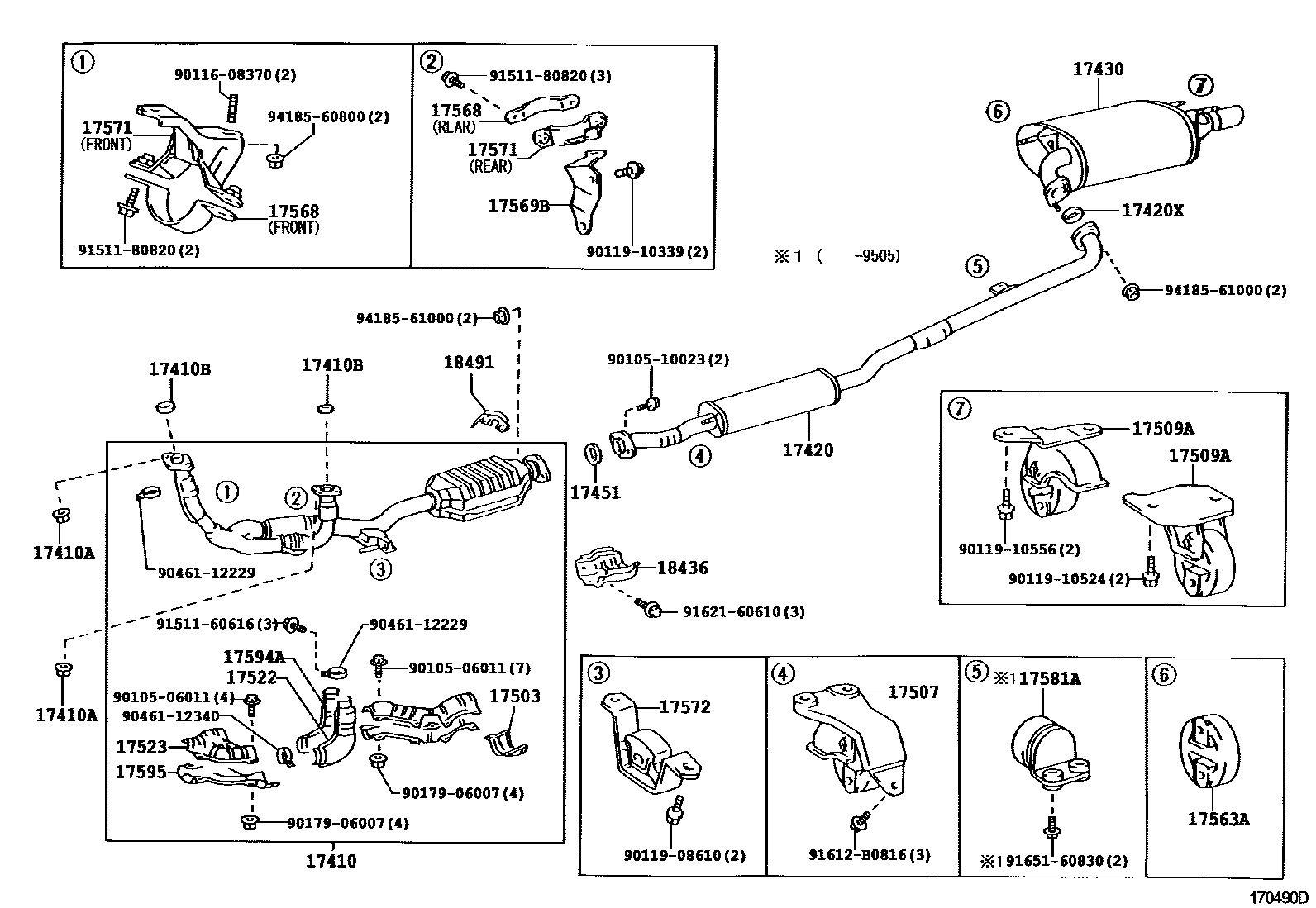

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
sub17507-0A020
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17523PROTECTOR, EXHAUST PIPE, UPPER NO.3
17563ASUPPORT, EXHAUST PIPE, NO.3
17568STAY, EXHAUST PIPE SUPPORT
17569BSTAY, EXHAUST PIPE SUPPORT, NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17581ADAMPER, EXHAUST PIPE
17594APROTECTOR, EXHAUST PIPE, LOWER NO.2
17595PROTECTOR, EXHAUST PIPE, LOWER NO.3
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
18491FLANGE, THERMOSENSOR INLET
9010506011
main90105-06011
9010510023
main90105-10023
9011608370
main90116-08370
9011908610
main90119-08610
9011910339
main90119-10339
9011910524
main90119-10524
9011910556
main90119-10556
9017906007
main90179-06007
9046112229
main90461-12229
9046112340
main90461-12340
9151160616
main91511-60616
9151180820
main91511-80820
91612B0816
main91612-B0816
9162160610
main91621-60610
9165160830
main91651-60830
9418560800
main94185-60800
9418561000
main94185-61000
39 parts on this diagram · 2 diagrams in section
