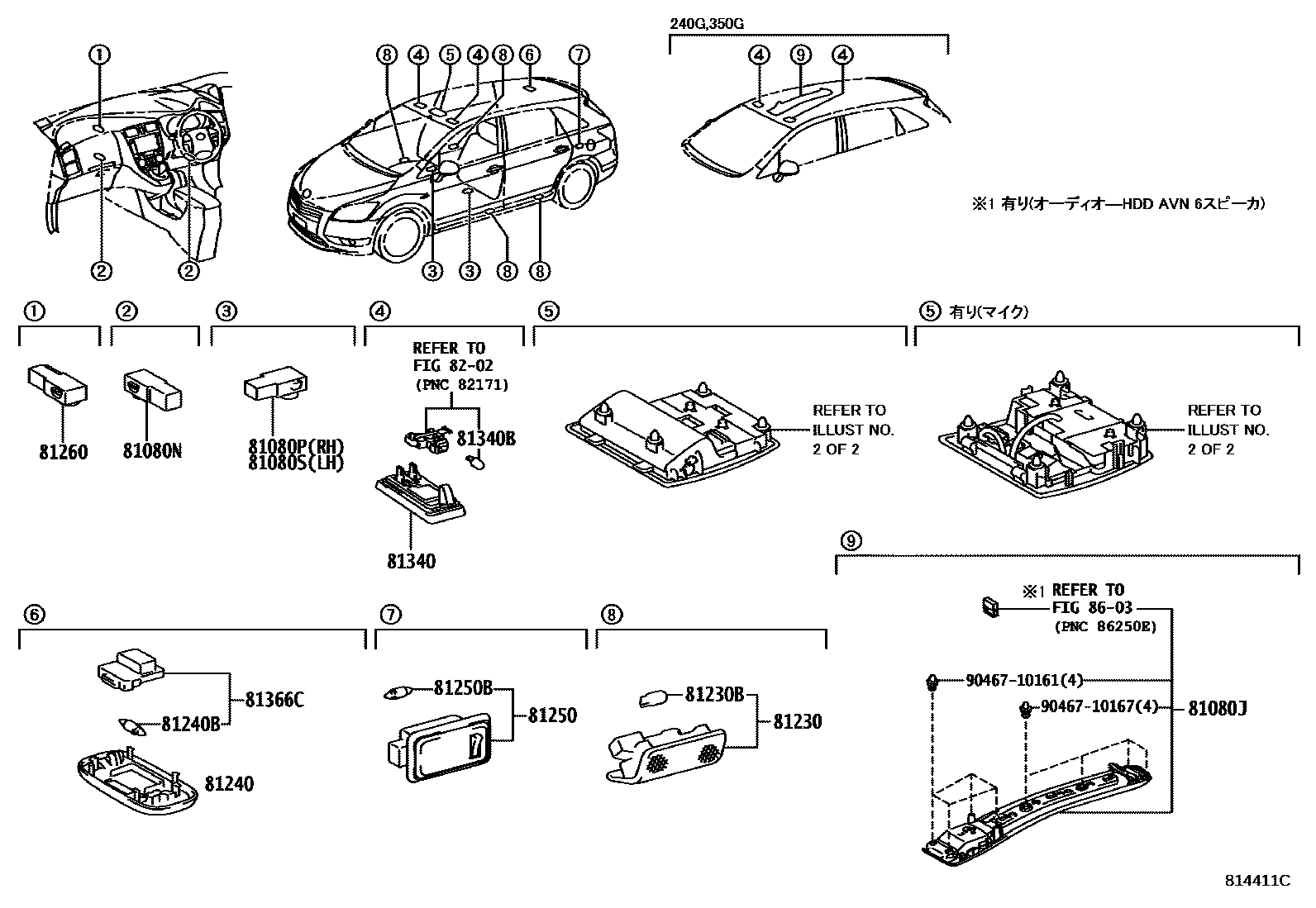

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-72040-B0iANA1#,GGA10..(240G,350G)..CBU200709-201102

GRAY,TRIM1#,4#

main81080-72040-B0iGGA10..CBU201102-201310

GRAY,TRIM2#,4#

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-22040iANA1#,GGA10..240,240G,350G,ARIAL¥1,030200909-201102

main81080-30010iANA1#,GGA10¥1,020200709-200909

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-22040iGGA10¥1,030201102

main81080-22040iANA1#..ARIAL¥1,030200910-201102

main81080-22040iANA1#..ARIAL¥1,030200910-201102

main81080-22040iANA1#,GGA10..(240G,350G)..CBU¥1,030200910-201102

main81080-22040iANA1#,GGA10..(240G,350G)..CBU¥1,030200910-201102

main81080-30010iANA1#..(240F,ARIAL)..CBU¥1,020200709-200909

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-22040iGGA10¥1,030201102

main81080-22040iANA1#,GGA10..(240G,350G)..CBU¥1,030200910-201102

main81080-22040iANA1#,GGA10..(240G,350G)..CBU¥1,030200910-201102

main81080-30010iANA1#..(240F,ARIAL)..CBU¥1,020200709-200909

81230LAMP ASSY, COURTESY

main81230-47010iANA1#,GGA10..240,240G,350G,ARIAL¥1,750200709-201102

sub81230-30200¥990

81230BBULB(FOR COURTESY LAMP)

main90981-12010iANA1#..240F¥110200709-201102

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iANA1#..240,ARIAL200709-201102

GRAY,TRIM1#,2#,4#

main81240-52040-B0iANA1#..ARIAL..CBU201102-201310

GRAY,TRIM2#

main81240-52040-B0iANA1#..ARIAL..CBU201102-201310

GRAY,TRIM2#,4#

main81240-52040-B0iANA1#..240F..CBU200709-201102

GRAY,TRIM1#,4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iANA1#..240,ARIAL¥180200709-201102

81250LAMP ASSY, ROOM, NO.2

main81250-48010iANA1#,GGA10..240,240G,350G,ARIAL¥2,420200709-201102

81250BBULB, ROOM LAMP, NO.2

main99132-13050iANA1#,GGA10..240,240G,350G,ARIAL¥150200709-201102

81260LAMP ASSY, GLOVE BOX

main81080-22040iANA1#,GGA10..240,240G,350G,ARIAL¥1,030200709-201102

81340LAMP ASSY, VANITY

main81340-30100-B1iANA1#,GGA10..(240F,240G,350G)..CBU200709-201102

GRAY,TRIM1#,4#

main81340-30100-B1iANA1#,GGA10..(240F,240G,350G)..CBU200709-201102

GRAY,TRIM1#,2#,4#

main81340-30100-B1iANA1#..ARIAL201102-201201

GRAY,TRIM2#

main81340-30100-B1iANA1#..ARIAL201102-201201

GRAY,TRIM2#,4#

main81340-30110iANA1#,GGA10¥1,670201202

81340BBULB (FOR VANITY LAMP)

main90981-11062iANA1#,GGA10..240,240G,350G,ARIAL¥340200709-201102

81366CBASE, ROOM LAMP SWITCH

main81366-68010iANA1#..(240,240F,ARIAL)..CBU¥860200709-201310

8202

8603

9046710161

main90467-10161¥90

9046710167

main90467-10167¥90

18 parts on this diagram · 2 diagrams in section
