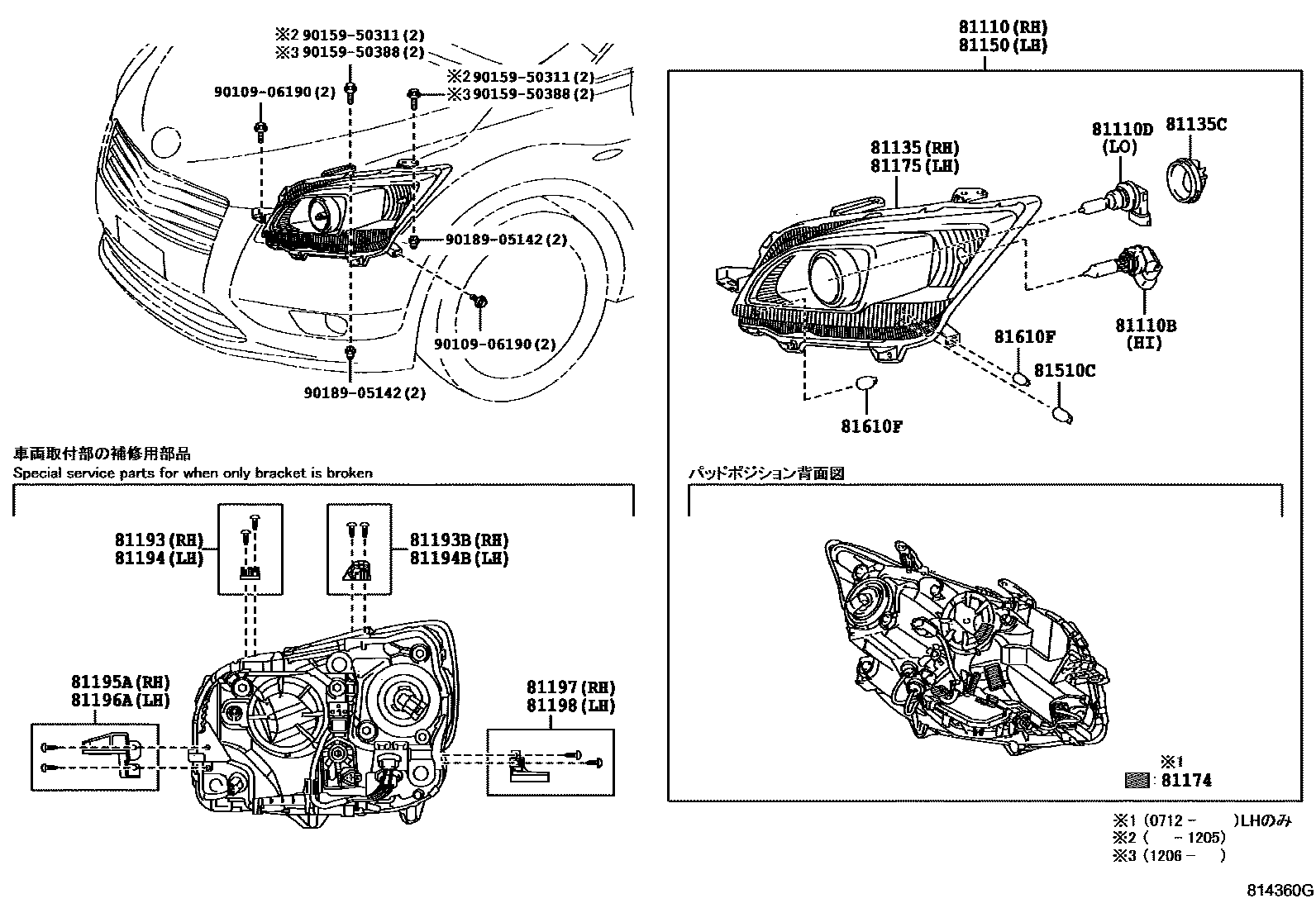

HEADLAMP

0001 1������������� 0002 1�����������������

81110HEADLAMP ASSY, RH

main81110-72020iANA1#..240200709-200801

main81110-72021supersedes 81110-72011iANA1#..240G,ARIAL201102

main81110-72030iGGA10..CBU200709-200801

main81110-72031iGGA10..CBU200802-200902

main81110-72032iGGA10201102

main81110-72050iANA1#..240G200807-200902

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iANA1#..CBU200709-200802

main90981-13046×2iANA1#,GGA10..240,240G,350G,ARIAL201102

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13081×2iANA1#..240201102

81135UNIT ASSY, HEADLAMP, RH

main81145-72020supersedes 81130-72010iANA1#..240200709-201102

main81145-72030iGGA10200709-200903

main81145-72031iGGA10200903-201102

main81145-72050iANA1#..240G200807-200902

81135CCOVER, HEADLAMP BACK, NO.1

main81135-72020×2iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

81150HEADLAMP ASSY, LH

main81150-72020iANA1#..240200709-200801

main81150-72021supersedes 81150-72011iANA1#..240200802-201102

main81150-72030iGGA10..CBU200709-200801

main81150-72031iGGA10..CBU200802-200902

main81150-72032iGGA10200903-201102

main81150-72040iANA1#..240G200807-200902

81174GASKET, HEADLAMP BODY, LH

main81174-72020iANA1#,GGA10..240,240G,350G,ARIAL200712-201102

81175UNIT ASSY, HEADLAMP, LH

main81185-72020supersedes 81170-72010iANA1#..240G,ARIAL201102

main81185-72030iGGA10200709-200903

main81185-72031iGGA10201102

main81185-72040iANA1#..240G200807-200902

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-72020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-72010iANA1#..240F200709

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-72020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-72010iANA1#,GGA10..CBU200709-200801

main81195-72011iANA1#,GGA10..240,240G,350G,ARIAL200802-201102

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-72010iANA1#,GGA10..CBU200709-200801

main81196-72011iANA1#,GGA10..240,240G,350G,ARIAL200802-201102

81197BRACKET, HEADLAMP, LOWER RH

main81197-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

81198BRACKET, HEADLAMP, LWR LH

main81198-72010iANA1#..240F200709

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iANA1#..240F200709

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×4iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

9010906190

main90109-06190

9015950311

main90159-50311

9015950388

main90159-50388

9018905142

main90189-05142

22 parts on this diagram · 2 diagrams in section
