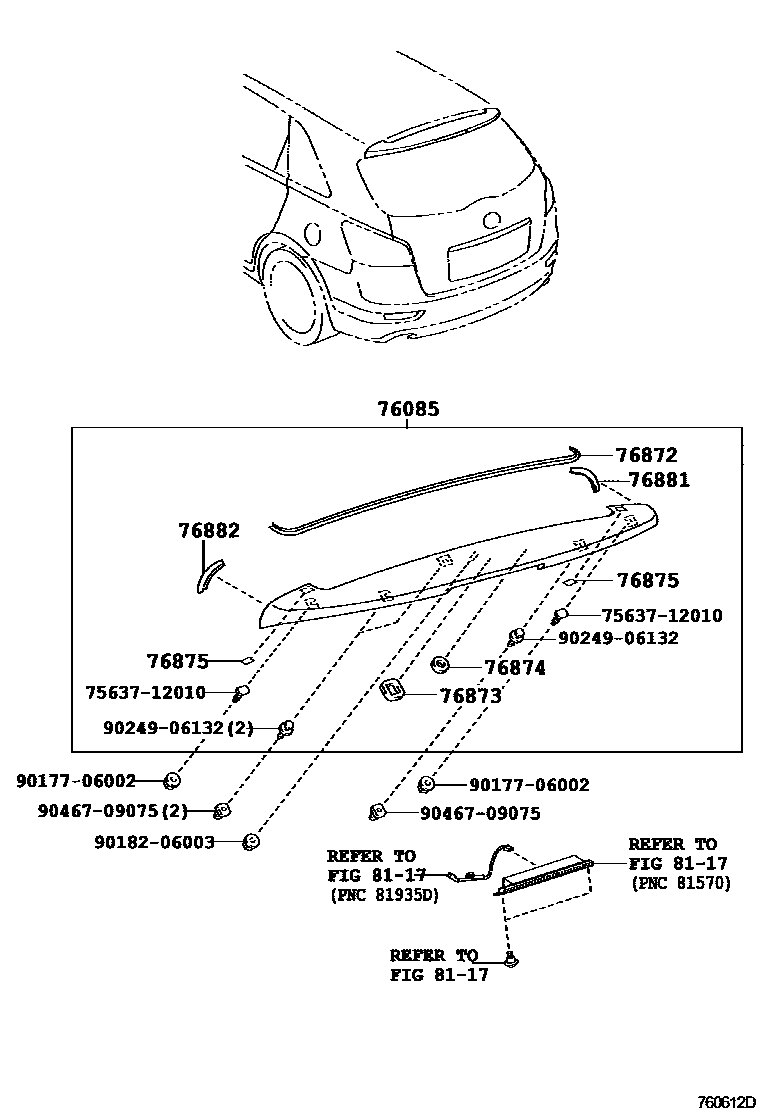

MUDGUARD & SPOILER

0001 1 0002 1

76085SPOILER SUB-ASSY, REAR

main76088-72010-A0iANA1#,GGA10..CBU200709-201310

WHITE PEARL CS.,070

main76088-72010-B0iANA1#,GGA10..CBU200709-200807

DK.GRAY M.M.,1E9

main76088-72010-B1iANA1#,GGA10..CBU200709-201102

SILVER ME.,1G7

main76088-72010-B2iANA1#,GGA10..CBU201102-201310

DK. STEEL MC.,1H2

main76088-72010-B3iANA1#,GGA10..CBU201102-201310

SILVER ME.,1F7

main76088-72010-C0iANA1#,GGA10..CBU200709-201102

BLACK MC.,209

main76088-72010-C1iANA1#,GGA10..CBU201102-201310

BLACK,202

main76088-72010-D0iANA1#,GGA10..CBU200709-201310

BLACKISH RED MC.,3R0

main76088-72010-D1iANA1#,GGA10..CBU200709-201310

RED M.M.,3R3

main76088-72010-H0iANA1#,GGA10..CBU200709-201102

FROSTY GREEN MC.,781

main76088-72010-J0iANA1#,GGA10..CBU200709-201102

DK.BLUE MC.,8S6

main76088-72010-J1iANA1#,GGA10..CBU200807-201102

LT.BLUE M.M.,8S7

76872PROTECTOR, REAR SPOILER, NO.1

main76872-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

76873PROTECTOR, REAR SPOILER, NO.2

main76873-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

76874PROTECTOR, REAR SPOILER, NO.3

main76874-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

76875PROTECTOR, REAR SPOILER, NO.4

main76875-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8117

7563712010

main75637-12010

9017706002

main90177-06002

9018206003

main90182-06003

9024906132

main90249-06132

9046709075

main90467-09075

13 parts on this diagram · 2 diagrams in section
