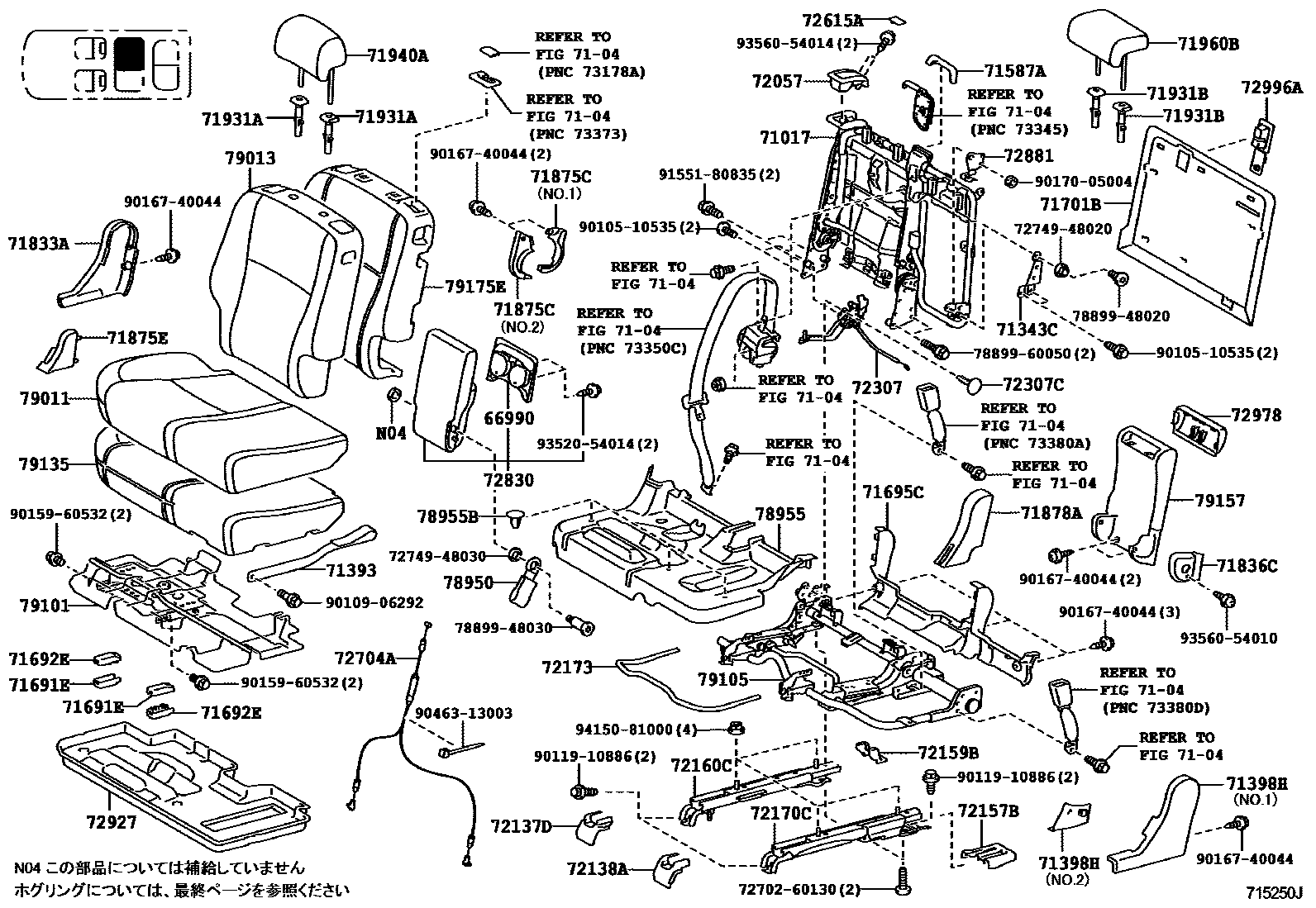

REAR SEAT & SEAT TRACK

0001 1�� NO.1 ���(RH=6:4����� ���) 0003 1�� NO.1 ���(RH=������ ���) 0004 1�� NO.1 ���(LH) 0005 1�� NO.2��� 0006 1�������

66990HOLDER ASSY, CUP

main66990-48020-B1iANA1#..240G200807-200902

main66990-48020-B1iANA1#..240G200807-200902

main66990-48020-B1iANA1#..240200709-200902

GRAY,TRIM1#

main66990-48020-C0iANA1#..(240G,ARIAL)..CBU201102-201310

BLACK,TRIM2#

main66990-48020-C0iANA1#..(240G,ARIAL)..CBU201102-201310

main66990-48020-C0iANA1#..(240G,ARIAL)..CBU201102-201310

main66990-48020-E0iANA1#..240G200807-201310

main66990-48020-E0iANA1#..240200709-201310

PLUM BROWN,TRIM4#

main66990-48020-E0iANA1#..240G200807-200902

main66990-48020-P2iANA1#..240G200902-201102

main66990-48020-P2iANA1#..240200902-201102

MD.GRAY,TRIM1#,2#

main66990-48020-P2iANA1#..240200902-201102

MD.GRAY,TRIM1#

main66990-48020-P2iANA1#..240200902-201102

main66990-48020-P2iANA1#..ARIAL200912-201102

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-72010iANA1#..240G200807-200902

main71017-72010iANA1#..(240,240F)..CBU200709-201102

main71017-72010iANA1#..ARIAL..CBU200807-201310

main71017-72010iANA1#..ARIAL..CBU201102-201310

main71017-72010iANA1#..ARIAL200912-201102

main71017-72020iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

7104

71343CHINGE, REAR SEATBACK, CENTER

main71343-72020iANA1#..240G200807-200902

main71343-72020iANA1#..(240,240F)..CBU200709-201102

main71343-72020iANA1#..240G,ARIAL200807-201310

main71343-72020iANA1#..ARIAL200912-201102

main71343-72020iANA1#..240201102-201310

71393BAND, REAR SEAT CUSHION

main71393-72010-B1iANA1#,GGA10..CBU200709-200902

GRAY,TRIM1#

sub71393-72010

main71393-72010-B2iANA1#..ARIAL200902-201102

MD.GRAY,TRIM1#

sub71393-72010

main71393-72010-B2iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

MD.GRAY,TRIM15

sub71393-72010

main71393-72010-C0iANA1#..ARIAL200902-201102

sub71393-72010

main71393-72010-C0iANA1#..ARIAL200902-201102

BLACK,TRIM15,2#

sub71393-72010

main71393-72010-C0iANA1#..ARIAL200902-201102

sub71393-72010

main71393-72010-C0iANA1#..240200912-201102

BLACK,TRIM15,2#,40

sub71393-72010

main71393-72010-C0iANA1#..240200912-201102

sub71393-72010

main71393-72010-C1iANA1#,GGA10..CBU201102-201310

BLACK,TRIM2#

sub71393-72010

main71393-72010-E0iANA1#..ARIAL200902-201102

sub71393-72010

main71393-72010-E0iANA1#,GGA10..(240,240G,350G)..CBU200709-201310

PLUM,TRIM4#

sub71393-72010

main71393-72010-E0iANA1#..240200912-201102

PLUM,TRIM40

sub71393-72010

71398HCOVER, CENTER SEAT HINGE, UPPER LH

main71398-72010-B0iANA1#..240G200807-200902

sub71398-72010

main71398-72010-B0iANA1#..(240,240F)..CBU200709-200902

sub71398-72010

main71398-72010-B0iANA1#..240G200807-200902

sub71398-72010

main71398-72010-B2iANA1#..240201102-201310

sub71398-72010

main71398-72010-B2iANA1#..240200902-201102

sub71398-72010

main71398-72010-B2iANA1#..240200902-201102

sub71398-72010

main71398-72010-B2iANA1#..240200902-201102

sub71398-72010

main71398-72010-B2iANA1#..240200902-201102

sub71398-72010

main71398-72010-B2iANA1#..ARIAL200912-201102

sub71398-72010

main71398-72010-B2iANA1#..240201102-201310

sub71398-72010

main71398-72010-B2iANA1#..240201102-201310

sub71398-72010

main71398-72010-E0iANA1#..240G..CBU200807-201310

sub71398-72010

main71398-72010-E0iANA1#..240G..CBU200709-201310

sub71398-72010

main71398-72010-E0iANA1#..240G200807-200902

sub71398-72010

main71398-72020-B0iANA1#..240G200807-200902

sub71398-72020

main71398-72020-B0iANA1#..240G200807-200902

sub71398-72020

main71398-72020-B0iANA1#..(240,240F)..CBU200709-200902

sub71398-72020

main71398-72020-B2iANA1#..240200902-201102

sub71398-72020

main71398-72020-B2iANA1#..240200902-201102

sub71398-72020

main71398-72020-B2iANA1#..240F..CBU200902-201102

sub71398-72020

main71398-72020-B2iANA1#..240F..CBU200902-201102

sub71398-72020

main71398-72020-B2iANA1#..ARIAL200912-201102

sub71398-72020

main71398-72020-B2iANA1#..(240G,ARIAL)..CBU201102-201310

sub71398-72020

main71398-72020-B2iANA1#..ARIAL..CBU201102-201310

sub71398-72020

main71398-72020-B2iANA1#..240201102-201310

sub71398-72020

main71398-72020-E0iANA1#..240G200807-200902

sub71398-72020

main71398-72020-E0iANA1#..(240,240F)..CBU200709-201310

sub71398-72020

main71398-72020-E0iANA1#..240G200807-201310

sub71398-72020

71587APROTECTOR, REAR SEATBACK EDGE

main71587-72010iANA1#..ARIAL..CBU200807-201310

main71587-72010iANA1#..ARIAL..CBU201102-201310

main71587-72010iANA1#..(240,240F)..CBU200709-201102

main71587-72010iANA1#..ARIAL200912-201102

main71587-72010iANA1#..240G200807-200902

71691ECOVER, REAR SEAT CUSHION HINGE, NO.1

main71691-72010-B0iANA1#,GGA10..CBU200709-200804

sub71691-72011

main71691-72010-B0iANA1#,GGA10..CBU200709-200804

sub71691-72011

main71691-72010-E0iANA1#,GGA10..CBU200709-200804

sub71691-72011

main71691-72010-E0iANA1#,GGA10..CBU200709-200804

sub71691-72011

main71691-72011-B0iANA1#,GGA10..CBU200805-200902

sub71691-72011

main71691-72011-B0iANA1#,GGA10..CBU200805-200902

sub71691-72011

main71691-72011-B1iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

sub71691-72011

main71691-72011-B1iANA1#..240200912-201102

sub71691-72011

main71691-72011-B1iANA1#..240200902-201102

sub71691-72011

main71691-72011-B1iANA1#..240200902-200912

sub71691-72011

main71691-72011-B2iANA1#..240201102-201310

sub71691-72011

main71691-72011-B2iANA1#,GGA10..CBU201102-201310

sub71691-72011

main71691-72011-B2iANA1#..240200912-201102

sub71691-72011

main71691-72011-B2iANA1#..240200902-201102

sub71691-72011

main71691-72011-E0iANA1#..ARIAL200902-201102

sub71691-72011

main71691-72011-E0iANA1#,GGA10..(240,240F,240G,350G)..CBU200805-201310

sub71691-72011

main71691-72011-E0iANA1#,GGA10..(240,240F,240G,350G)..CBU200805-201310

sub71691-72011

main71691-72020iANA1#,GGA10..CBU200709-201310

71692ECOVER, REAR SEAT CUSHION HINGE, NO.2

main71692-72010-B0iANA1#,GGA10..CBU200709-200902

sub71692-72010

main71692-72010-B0iANA1#..240200709-200902

sub71692-72010

main71692-72010-B1iANA1#..240200902-200912

sub71692-72010

main71692-72010-B1iANA1#..240200902-201102

sub71692-72010

main71692-72010-B1iANA1#..240200912-201102

sub71692-72010

main71692-72010-B1iANA1#..ARIAL200902-201102

sub71692-72010

main71692-72010-B2iANA1#..240200912-201102

sub71692-72010

main71692-72010-B2iANA1#..ARIAL200902-201102

sub71692-72010

main71692-72010-B2iANA1#,GGA10..CBU201102-201310

sub71692-72010

main71692-72010-B2iANA1#,GGA10..CBU201102-201310

sub71692-72010

main71692-72010-E0iANA1#..240200709-201310

sub71692-72010

main71692-72010-E0iANA1#..ARIAL200902-201102

sub71692-72010

main71692-72010-E0iANA1#..240200709-201310

sub71692-72010

main71692-72020iANA1#,GGA10..CBU200709-201310

71695CPROTECTOR, REAR SEAT, NO.1

main71695-72010-B0iANA1#..240G200807-200902

sub71695-72010

main71695-72010-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

sub71695-72010

main71695-72010-B0iANA1#..240G200807-200902

sub71695-72010

main71695-72010-B2iANA1#..240G200902-201102

sub71695-72010

main71695-72010-B2iANA1#..240F..CBU200902-201102

sub71695-72010

main71695-72010-B2iANA1#..240G200902-201102

DK.GRAY,TRIM1#,2#

sub71695-72010

main71695-72010-B2iANA1#..240G200902-201102

DK.GRAY,TRIM1#

sub71695-72010

main71695-72010-B2iANA1#..ARIAL200912-201102

sub71695-72010

main71695-72010-B2iANA1#..240201102-201310

DK.GRAY,TRIM2#

sub71695-72010

main71695-72010-B2iANA1#..240201102-201310

sub71695-72010

main71695-72010-B2iANA1#..240201102-201310

sub71695-72010

main71695-72010-E0iANA1#..240G200807-200902

sub71695-72010

main71695-72010-E0iANA1#..(240,240F)..CBU200709-201310

PLUM BROWN,TRIM4#

sub71695-72010

main71695-72010-E0iANA1#..240G200807-201310

sub71695-72010

main71695-72020-B0iANA1#,GGA10..(240G,350G)..CBU200709-200902

GRAY,TRIM1#

sub71695-72020

main71695-72020-B2iANA1#..ARIAL200902-201102

DK.GRAY,TRIM1#,2#

sub71695-72020

main71695-72020-B2iANA1#,GGA10..(240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#

sub71695-72020

main71695-72020-B2iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK.GRAY,TRIM2#

sub71695-72020

main71695-72020-E0iANA1#..ARIAL200902-201102

sub71695-72020

main71695-72020-E0iANA1#,GGA10..(240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

sub71695-72020

71701BBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-72010-B0iANA1#..240G200807-200902

sub71701-72010

main71701-72010-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

sub71701-72010

main71701-72010-B0iANA1#..240G200807-200902

sub71701-72010

main71701-72010-B1iANA1#..240F..CBU200902-201102

sub71701-72010

main71701-72010-B1iANA1#..240G200902-201102

MD.GRAY,TRIM1#

sub71701-72010

main71701-72010-B1iANA1#..240200912-201102

MD.GRAY,TRIM15

sub71701-72010

main71701-72010-C0iANA1#..240201102-201310

sub71701-72010

main71701-72010-C0iANA1#..240201102-201310

sub71701-72010

main71701-72010-C0iANA1#..240201102-201310

BLACK,TRIM2#

sub71701-72010

main71701-72010-C0iANA1#..240200912-201102

BLACK,TRIM15,2#

sub71701-72010

main71701-72010-C0iANA1#..240200912-201102

sub71701-72010

main71701-72010-C0iANA1#..ARIAL200902-201102

sub71701-72010

main71701-72010-E0iANA1#..240G..CBU200709-201310

PLUM BROWN,TRIM4#

sub71701-72010

main71701-72010-E0iANA1#..240G200807-201310

sub71701-72010

main71701-72010-E0iANA1#..240G200807-200902

sub71701-72010

main71701-72020-B0iANA1#,GGA10..(240G,350G)..CBU200709-200902

GRAY,TRIM1#

sub71701-72020

main71701-72020-B1iANA1#,GGA10..(240G,350G)..CBU200902-201102

MD.GRAY,TRIM15

sub71701-72020

main71701-72020-B1iANA1#,GGA10..(240G,350G)..CBU200902-201102

MD.GRAY,TRIM1#

sub71701-72020

main71701-72020-C0iANA1#..ARIAL200902-201102

BLACK,TRIM15,2#

sub71701-72020

main71701-72020-C0iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

BLACK,TRIM2#

sub71701-72020

main71701-72020-E0iANA1#,GGA10..(240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

sub71701-72020

main71701-72020-E0iANA1#..ARIAL200902-201102

sub71701-72020

main71701-72030-C0iANA1#..240201008-201310

main71701-72030-E0iANA1#..240201102-201310

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-72010-B0iANA1#,GGA10..CBU200709-200902

GRAY,TRIM1#

sub71833-72010

main71833-72010-B2iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#

sub71833-72010

main71833-72010-B2iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#,2#

sub71833-72010

main71833-72010-B2iANA1#,GGA10..CBU201102-201310

DK.GRAY,TRIM2#

sub71833-72010

main71833-72010-E0iANA1#,GGA10..(240,240F,240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

sub71833-72010

main71833-72010-E0iANA1#..ARIAL200902-201102

sub71833-72010

71836CMOULDING, REAR SEATBACK, LH

main71836-72010-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

sub71836-72010

main71836-72010-B0iANA1#..240G200807-200902

sub71836-72010

main71836-72010-B0iANA1#..240G200807-200902

sub71836-72010

main71836-72010-B2iANA1#..ARIAL..CBU201102-201310

sub71836-72010

main71836-72010-B2iANA1#..240200902-201102

DK.GRAY,TRIM1#,2#

sub71836-72010

main71836-72010-B2iANA1#..240200902-201102

DK.GRAY,TRIM1#

sub71836-72010

main71836-72010-B2iANA1#..240200902-201102

sub71836-72010

main71836-72010-B2iANA1#..240200902-201102

sub71836-72010

main71836-72010-B2iANA1#..ARIAL200912-201102

sub71836-72010

main71836-72010-B2iANA1#..240201102-201310

DK.GRAY,TRIM2#

sub71836-72010

main71836-72010-B2iANA1#..240201102-201310

sub71836-72010

main71836-72010-E0iANA1#..240200807-201310

sub71836-72010

main71836-72010-E0iANA1#..240G..CBU200709-201310

PLUM BROWN,TRIM4#

sub71836-72010

main71836-72010-E0iANA1#..240G200807-200902

sub71836-72010

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-72010-B0iANA1#,GGA10..CBU200709-200902

main71875-72010-B2iANA1#..240,ARIAL200902-201102

main71875-72010-B2iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

main71875-72010-B2iANA1#,GGA10..CBU201102-201310

main71875-72010-E0iANA1#,GGA10..(240,240G,350G)..CBU200709-201310

main71875-72010-E0iANA1#..ARIAL200902-201102

main71875-72020-B0iANA1#,GGA10..CBU200709-200902

main71875-72020-B2iANA1#,GGA10..CBU201102-201310

main71875-72020-B2iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

main71875-72020-B2iANA1#..240,ARIAL200902-201102

main71875-72020-E0iANA1#..ARIAL200902-201102

main71875-72020-E0iANA1#,GGA10..(240,240G,350G)..CBU200709-201310

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-72030-B0iANA1#,GGA10..CBU200709-200902

GRAY,TRIM1#

main71875-72030-B2iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#

main71875-72030-B2iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#,2#

main71875-72030-B2iANA1#,GGA10..CBU201102-201310

DK.GRAY,TRIM2#

main71875-72030-E0iANA1#..ARIAL200902-201102

main71875-72030-E0iANA1#,GGA10..(240,240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-72020-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

main71878-72020-B0iANA1#..240G200807-200902

main71878-72020-B0iANA1#..240G200807-200902

main71878-72020-B2iANA1#..240200902-201102

main71878-72020-B2iANA1#..(240G,ARIAL)..CBU201102-201310

DK.GRAY,TRIM2#

main71878-72020-B2iANA1#..(240G,ARIAL)..CBU201102-201310

main71878-72020-B2iANA1#..(240G,ARIAL)..CBU201102-201310

main71878-72020-B2iANA1#..240200902-201102

DK.GRAY,TRIM1#,2#

main71878-72020-B2iANA1#..240200902-201102

DK.GRAY,TRIM1#

main71878-72020-B2iANA1#..240200902-201102

main71878-72020-B2iANA1#..ARIAL200912-201102

main71878-72020-E0iANA1#..240G200807-200902

main71878-72020-E0iANA1#..(240,240F)..CBU200709-201310

PLUM BROWN,TRIM4#

main71878-72020-E0iANA1#..240G200807-201310

main71878-72030-B0iANA1#,GGA10..(240G,350G)..CBU200709-200902

GRAY,TRIM1#

sub71878-72030

main71878-72030-B2iANA1#,GGA10..(240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#

sub71878-72030

main71878-72030-B2iANA1#,GGA10..(240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#,2#

sub71878-72030

main71878-72030-B2iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK.GRAY,TRIM2#

sub71878-72030

main71878-72030-E0iANA1#,GGA10..(240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

sub71878-72030

main71878-72030-E0iANA1#..ARIAL200902-201102

sub71878-72030

71931ASUPPORT, REAR SEAT HEADREST

main71930-52030-B0iANA1#..240200912-201102

sub71930-52030

main71930-52030-B0iANA1#,GGA10..CBU201102-201310

sub71930-52030

main71930-52030-B0iANA1#..240201008-201102

sub71930-52030

main71930-52030-B0iANA1#..ARIAL200902-201102

sub71930-52030

main71930-52030-B1iANA1#,GGA10..CBU200709-200902

sub71930-52030

main71930-52030-B7iANA1#..ARIAL200902-201102

sub71930-52030

main71930-52030-B7iANA1#..ARIAL200902-201102

sub71930-52030

main71930-52030-E2iANA1#,GGA10..(240,240G,350G)..CBU200709-201310

sub71930-52030

main71930-52030-E2iANA1#..ARIAL200902-201102

sub71930-52030

main71931-42020-B4iANA1#..240201008-201102

sub71931-42020

main71931-42020-B4iANA1#,GGA10..CBU201102-201310

sub71931-42020

main71931-42020-B4iANA1#..240200912-201102

sub71931-42020

main71931-42020-B4iANA1#..ARIAL200902-201102

sub71931-42020

main71931-42020-B6iANA1#,GGA10..(240,240F,240G,350G)..CBU200902-201102

sub71931-42020

main71931-42020-B6iANA1#..ARIAL200902-201102

sub71931-42020

main71931-42020-B7iANA1#,GGA10..CBU200709-200902

sub71931-42020

main71931-42020-E8iANA1#,GGA10..(240,240F,240G,350G)..CBU200709-201310

sub71931-42020

main71931-42020-E8iANA1#..ARIAL200902-201102

sub71931-42020

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71955-72010-B0iANA1#..240G200807-200902

main71955-72010-B0iANA1#..240G200807-200902

main71955-72010-B0iANA1#..(240,240F)..CBU200709-200902

main71955-72010-B1iANA1#..240G200902-201102

main71955-72010-B1iANA1#..(240,240F)..CBU200902-201102

main71955-72010-B2iANA1#..240201102-201310

main71955-72010-B2iANA1#..ARIAL200902-201102

main71955-72010-B2iANA1#..ARIAL200912-201102

main71955-72010-B2iANA1#..ARIAL200912-201102

main71955-72010-B2iANA1#..240201008-201102

main71955-72010-B2iANA1#..240201102-201310

main71955-72010-B2iANA1#..240201102-201310

main71955-72010-E0iANA1#..240G200807-201310

main71955-72010-E0iANA1#..240G..CBU200709-201310

main71955-72010-E0iANA1#..240G200807-200902

main71956-48010-B1iANA1#..240G200807-200902

sub71956-48010

main71956-48010-B1iANA1#..240G200807-200902

sub71956-48010

main71956-48010-B1iANA1#..(240,240F)..CBU200709-200902

sub71956-48010

main71956-48010-B2iANA1#..240G200902-201102

sub71956-48010

main71956-48010-B2iANA1#..(240,240F)..CBU200902-201102

sub71956-48010

main71956-48010-B4iANA1#..ARIAL..CBU201102-201310

sub71956-48010

main71956-48010-B4iANA1#..240200912-201102

sub71956-48010

main71956-48010-B4iANA1#..240201008-201102

sub71956-48010

main71956-48010-B4iANA1#..240200912-201102

sub71956-48010

main71956-48010-B4iANA1#..ARIAL200902-201102

sub71956-48010

main71956-48010-B4iANA1#..240201102-201310

sub71956-48010

main71956-48010-B4iANA1#..240201102-201310

sub71956-48010

main71956-48010-E0iANA1#..240200807-201310

sub71956-48010

main71956-48010-E0iANA1#..240G..CBU200709-201310

sub71956-48010

main71956-48010-E0iANA1#..240G200807-200902

sub71956-48010

71940AHEADREST ASSY, REAR SEAT

main71940-72040-B2iANA1#..240200709-200902

GRAY,TRIM1#

main71940-72040-B3iANA1#..240200902-201102

MEDIUM GRAY,TRIM1#

main71940-72040-E1iANA1#..240200709-201102

PLUM BROWN,TRIM4#

main71940-72050-B1iANA1#,GGA10..(240F,240G,350G)..CBU200709-200902

GRAY,TRIM1#

sub71940-72052

sub71940-72051

main71940-72050-B3iANA1#,GGA10..(240F,240G,350G)..CBU200902-201003

MD.GRAY,TRIM1#

sub71940-72052

sub71940-72051

main71940-72050-E1iANA1#,GGA10..(240F,240G,350G)..CBU200709-201003

PLUM BROWN,TRIM4#

sub71940-72052

sub71940-72051

main71940-72051-B3iANA1#,GGA10..(240F,240G,350G)..CBU201004-201102

MD.GRAY,TRIM1#

main71940-72051-E1iANA1#,GGA10..(240F,240G,350G)..CBU201004-201102

PLUM,TRIM4#

main71940-72060-B1iANA1#,GGA10..(240G,350G)..CBU200709-200902

main71940-72060-B3iANA1#,GGA10..(240G,350G,ARIAL)..CBU200902-201102

main71940-72060-C1iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

main71940-72060-E1iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

main71940-72080-C1iANA1#..ARIAL200902-201102

BLACK,TRIM1#,2#

main71940-72090-B0iANA1#..240201008-201102

main71940-72090-B0iANA1#..240200912-201102

main71940-72110-C0iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

BLACK,TRIM2#

main71940-72110-E1iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

PLUM,TRIM4#

main71940-72130-B0iANA1#..ARIAL..CBU201102-201310

DK.GRAY,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-72010-B2iANA1#..240200709-200902

GRAY,TRIM1#

main71960-72010-B3iANA1#..240200902-201102

MEDIUM GRAY,TRIM1#

main71960-72010-E1iANA1#..240200709-201102

PLUM BROWN,TRIM4#

main71960-72020-B1iANA1#..240G200807-200902

sub71960-72022

sub71960-72021

main71960-72020-B1iANA1#..240F..CBU200709-200902

GRAY,TRIM1#

sub71960-72022

sub71960-72021

main71960-72020-B1iANA1#..240G200807-200902

sub71960-72022

sub71960-72021

main71960-72020-B2iANA1#..240F..CBU200902-201003

sub71960-72022

sub71960-72021

main71960-72020-B2iANA1#..240F..CBU200902-201003

MD.GRAY,TRIM1#

sub71960-72022

sub71960-72021

main71960-72020-E1iANA1#..240G200807-201003

sub71960-72022

sub71960-72021

main71960-72020-E1iANA1#..240F..CBU200709-201003

PLUM BROWN,TRIM4#

sub71960-72022

sub71960-72021

main71960-72020-E1iANA1#..240G200807-200902

sub71960-72022

sub71960-72021

main71960-72021-B2iANA1#..240F..CBU201004-201102

MD.GRAY,TRIM1#

main71960-72021-B2iANA1#..240G201004-201102

main71960-72021-E1iANA1#..240G201004-201102

PLUM,TRIM4#

main71960-72021-E1iANA1#..240F..CBU201004-201102

main71960-72030-C1iANA1#..ARIAL200912-201102

main71960-72030-C1iANA1#..ARIAL200902-201102

main71960-72040-B0iANA1#..240201008-201102

main71960-72040-B0iANA1#..240200912-201102

main71960-72050-C0iANA1#..240G..CBU201102-201310

main71960-72050-C0iANA1#..240201102-201310

BLACK,TRIM2#

main71960-72050-E1iANA1#..240201102-201310

main71960-72050-E1iANA1#..240201102-201310

PLUM,TRIM4#

main71960-72070-B0iANA1#..ARIAL..CBU201102-201310

main71960-72070-B0iANA1#..ARIAL..CBU201102-201310

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-72010-B0iANA1#,GGA10..CBU200709-200902

GRAY,TRIM1#

sub72057-72010

main72057-72010-B1iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

MD.GRAY,TRIM1#

sub72057-72010

main72057-72010-B1iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

MD.GRAY,TRIM15

sub72057-72010

main72057-72010-B2iANA1#..240200912-201102

sub72057-72010

main72057-72010-B2iANA1#..ARIAL200902-201102

DK.GRAY,TRIM15,2#

sub72057-72010

main72057-72010-B2iANA1#..ARIAL200902-201102

sub72057-72010

main72057-72010-B2iANA1#,GGA10..CBU201102-201310

DK.GRAY,TRIM2#

sub72057-72010

main72057-72010-E0iANA1#,GGA10..(240,240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

sub72057-72010

main72057-72010-E0iANA1#..ARIAL200902-201102

sub72057-72010

72137DCOVER, REAR SEAT TRACK, RH

main72137-72030-C0iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

BLACK,TRIM2#

main72137-72030-C0iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

BLACK,TRIM2#,4#

main72137-72030-C0iANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,2#,4#

main72137-72030-C0iANA1#,GGA10..(240F,240G,350G)..CBU200709-201102

BLACK,TRIM1#,4#

72138ACOVER, REAR SEAT TRACK, LH

main72137-72040-C0iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

BLACK,TRIM2#

main72137-72040-C0iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

BLACK,TRIM2#,4#

main72137-72040-C0iANA1#..240,ARIAL200709-201102

BLACK,TRIM1#,4#

main72137-72040-C0iANA1#,GGA10..(240F,240G,350G)..CBU200709-201102

BLACK,TRIM1#,2#,4#

72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH

main72137-72050-C0iANA1#..240201102-201310

main72137-72050-C0iANA1#..240G..CBU201102-201310

BLACK,TRIM2#,4#

main72137-72050-C0iANA1#..240G..CBU201102-201310

main72137-72050-C0iANA1#..240G..CBU201102-201310

main72137-72050-C0iANA1#..240G200807-200902

main72137-72050-C0iANA1#..240200709-201102

BLACK,TRIM1#,2#,4#

main72137-72050-C0iANA1#..240200709-201102

BLACK,TRIM1#,4#

main72137-72050-C0iANA1#..240G200807-201102

main72137-72050-C0iANA1#..ARIAL200902-201102

main72137-72050-C0iANA1#..ARIAL200912-201102

main72137-72070-C0iANA1#,GGA10..(240G,350G)..CBU200709-201102

BLACK,TRIM1#,4#

main72137-72070-C0iANA1#..ARIAL200902-201102

BLACK,TRIM1#,2#,4#

main72137-72070-C0iANA1#,GGA10..(240G,350G)..CBU201102-201310

BLACK,TRIM2#,4#

main72137-72070-C0iANA1#,GGA10..(240G,350G)..CBU201102-201310

BLACK,TRIM2#

72159BCOVER, REAR SEAT TRACK BRACKET, OUTER

main72137-68020-C0iANA1#,GGA10..CBU200709-200802

BLACK

main72137-72100iANA1#,GGA10..CBU200803-201310

72160CTRACK ASSY, REAR NO.1 SEAT, OUTER RH

main72160-72010iANA1#,GGA10..CBU200709-201310

72170CTRACK ASSY, REAR NO.1 SEAT, INNER RH

main72170-72010iANA1#..(240G,ARIAL)..CBU201102-201310

main72170-72010iANA1#..240G200807-200902

main72170-72010iANA1#..(240,240F)..CBU200709-201102

main72170-72010iANA1#..240G,ARIAL200807-201310

main72170-72010iANA1#..ARIAL200912-201102

main72170-72020iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-72010iANA1#,GGA10..CBU200709-201310

72307LINK SUB-ASSY, RECLINING CONTROL, RH

main72307-72010iANA1#,GGA10..CBU200709-201310

72307CCLIP, RECLINING CONTROL LINK

main90467-05161-C0iANA1#,GGA10..(240,240G,350G)..CBU201102-201310

BLACK,TRIM2#

sub90467-05161

main90467-05161-C0iANA1#..ARIAL..CBU201102-201310

BLACK,TRIM2#,4#

sub90467-05161

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-48020-B1iANA1#,GGA10..CBU200709-200902

GRAY,TRIM1#

sub72615-48020

main72615-48020-B2iANA1#..ARIAL200912-201102

sub72615-48020

main72615-48020-B2iANA1#..240200902-201102

DK.GRAY,TRIM15,2#

sub72615-48020

main72615-48020-B2iANA1#..ARIAL200902-201102

sub72615-48020

main72615-48020-B2iANA1#,GGA10..CBU201102-201310

DK.GRAY,TRIM2#

sub72615-48020

main72615-48020-B3iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

MD.GRAY,TRIM1#

sub72615-48020

main72615-48020-B3iANA1#,GGA10..(240F,240G,350G)..CBU200902-201102

MD.GRAY,TRIM15

sub72615-48020

main72615-48020-E0iANA1#,GGA10..(240,240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

sub72615-48020

main72615-48020-E0iANA1#..ARIAL200902-201102

sub72615-48020

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-72020iANA1#,GGA10..CBU200709-201310

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-72010-B2iANA1#..240200709-200807

GRAY,TRIM1#

sub72830-72011

sub78950-72010

main72830-72010-E1iANA1#..240200709-200807

PLUM BROWN,TRIM4#

sub72830-72011

sub78950-72010

main72830-72011-B2iANA1#..240200807-200902

MD.GRAY,TRIM1#

main72830-72011-B3iANA1#..240200902-201102

MD.GRAY,TRIM1#

main72830-72011-E1iANA1#..240200807-201102

PLUM BROWN,TRIM4#

main72830-72020-B1iANA1#..240F..CBU200709-200807

GRAY,TRIM1#

sub72830-72021

sub78950-72010

main72830-72020-E1iANA1#..240G200807-200902

sub72830-72021

sub78950-72010

main72830-72020-E1iANA1#..240G200807-200902

sub72830-72021

sub78950-72010

main72830-72020-E1iANA1#..240F..CBU200709-200902

PLUM BROWN,TRIM4#

sub72830-72021

sub78950-72010

main72830-72021-B2iANA1#..240G200902-201003

MD.GRAY,TRIM1#

sub72830-72080

sub72830-72022

main72830-72021-B2iANA1#..240G200902-201003

sub72830-72080

sub72830-72022

main72830-72021-E1iANA1#..240G200902-201003

sub72830-72080

sub72830-72022

main72830-72021-E1iANA1#..240F..CBU200902-201003

PLUM BROWN,TRIM4#

sub72830-72080

sub72830-72022

main72830-72022-B2iANA1#..240F..CBU201004-201102

main72830-72022-B2iANA1#..240G201004-201102

MD.GRAY,TRIM1#

main72830-72022-E1iANA1#..240F..CBU201004-201102

PLUM,TRIM4#

main72830-72022-E1iANA1#..240G201004-201102

main72830-72031-C1iANA1#..ARIAL200902-201102

main72830-72031-C1iANA1#..ARIAL200912-201102

main72830-72040-B0iANA1#..240200912-201102

main72830-72040-B0iANA1#..240201008-201102

main72830-72050-C0iANA1#..240201102-201307

BLACK,TRIM2#

sub72830-72051

main72830-72050-C0iANA1#..240201102-201307

sub72830-72051

main72830-72050-E1iANA1#..240201102-201307

PLUM,TRIM4#

sub72830-72051

main72830-72050-E1iANA1#..240201102-201307

sub72830-72051

main72830-72051-C0iANA1#..240201308-201310

BLACK,TRIM2#

main72830-72051-C0iANA1#..240G..CBU201308-201310

main72830-72051-E1iANA1#..240G..CBU201308-201310

main72830-72051-E1iANA1#..240201308-201310

PLUM,TRIM4#

main72830-72070-B0iANA1#..ARIAL..CBU201102-201307

sub72830-72071

main72830-72070-B0iANA1#..ARIAL..CBU201102-201307

sub72830-72071

main72830-72071-B0iANA1#..ARIAL..CBU201308-201310

main72830-72071-B0iANA1#..ARIAL..CBU201308-201310

72881SUPPORT, REAR SEAT CENTER ARMREST, RH

main72881-48010iANA1#..240G200807-200902

main72881-48010iANA1#..(240,240F)..CBU200709-201102

main72881-48010iANA1#..240G,ARIAL200807-201310

main72881-48010iANA1#..ARIAL200912-201102

main72881-48010iANA1#..240201102-201310

72927COVER, REAR SEAT CUSHION UNDER, RH

main72927-72010-B0iANA1#..240G200807-200902

main72927-72010-B0iANA1#..240G200807-200902

main72927-72010-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

main72927-72010-B3iANA1#..(240,240F)..CBU200902-201102

main72927-72010-B3iANA1#..240G200902-201102

MD.GRAY,TRIM1#

main72927-72010-C1iANA1#..ARIAL200902-201310

main72927-72010-C1iANA1#..240200912-201310

BLACK,TRIM2#

main72927-72010-C1iANA1#..240200912-201102

main72927-72010-C1iANA1#..240201102-201310

main72927-72010-E1iANA1#..240G..CBU200807-201310

main72927-72010-E1iANA1#..240G..CBU200709-201310

PLUM,TRIM4#

main72927-72010-E1iANA1#..240G200807-200902

main72927-72020-B0iANA1#,GGA10..(240G,350G)..CBU200709-200902

GRAY,TRIM1#

sub72927-72020

main72927-72020-B1iANA1#..ARIAL200902-200903

MD.GRAY,TRIM15

sub72927-72020

main72927-72020-B1iANA1#,GGA10..(240G,350G)..CBU200902-200903

MD.GRAY,TRIM1#

sub72927-72020

main72927-72020-B2iANA1#..ARIAL200902-200903

DK.GRAY,TRIM15,2#

sub72927-72020

main72927-72020-B3iANA1#,GGA10..(240G,350G,ARIAL)..CBU200903-201102

MD.GRAY,TRIM1#

sub72927-72020

main72927-72020-C1iANA1#..ARIAL200903-201310

BLACK,TRIM2#

sub72927-72020

main72927-72020-E0iANA1#,GGA10..240G,350G200709-200710

PLUM BROWN,TRIM4#

sub72927-72020

main72927-72020-E1iANA1#,GGA10..(240G,350G)..CBU200710-201310

PLUM,TRIM4#

sub72927-72020

72978COVER, NO.2 CENTER SEATBACK

main72978-72010-B0iANA1#..240G200807-200902

main72978-72010-B0iANA1#..240G200807-200902

main72978-72010-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

main72978-72010-B1iANA1#..240F..CBU200902-201102

main72978-72010-B1iANA1#..240200902-201102

MD.GRAY,TRIM1#

main72978-72010-B1iANA1#..240200912-201102

MD.GRAY,TRIM15

main72978-72010-B2iANA1#..240201102-201310

main72978-72010-B2iANA1#..(240G,ARIAL)..CBU201102-201310

main72978-72010-B2iANA1#..ARIAL..CBU201102-201310

DK.GRAY,TRIM2#

main72978-72010-B2iANA1#..ARIAL200902-201102

main72978-72010-B2iANA1#..240200912-201102

DK.GRAY,TRIM15,2#

main72978-72010-B2iANA1#..240200912-201102

main72978-72010-E0iANA1#..240G200807-201310

main72978-72010-E0iANA1#..(240,240F)..CBU200709-201310

PLUM BROWN,TRIM4#

main72978-72010-E0iANA1#..240G200807-200902

72996ACOVER, REAR SEATBACK

main72996-72010-B0iANA1#,GGA10..CBU200709-200902

GRAY,TRIM1#

main72996-72010-B1iANA1#..ARIAL200902-201102

MD.GRAY,TRIM1#

main72996-72010-B1iANA1#..ARIAL200902-201102

MD.GRAY,TRIM15

main72996-72010-B2iANA1#..ARIAL200902-201102

DK.GRAY,TRIM15,2#

main72996-72010-B2iANA1#..ARIAL200902-201102

main72996-72010-B2iANA1#..240200912-201102

main72996-72010-B2iANA1#,GGA10..CBU201102-201310

DK.GRAY,TRIM2#

main72996-72010-E0iANA1#..ARIAL200902-201102

main72996-72010-E0iANA1#,GGA10..(240,240F,240G,350G)..CBU200709-201310

PLUM,TRIM4#

78950BAND ASSY, FOLD SEAT STOPPER, NO.1

main78950-72010-B0iANA1#..(240,240F)..CBU200902-201102

MD.GRAY,TRIM1#

main78950-72010-B0iANA1#..240G200902-201102

main78950-72010-B1iANA1#..240G200807-200902

main78950-72010-B1iANA1#..(240,240F)..CBU200807-200902

GRAY,TRIM1#

main78950-72010-B1iANA1#..(240,240F)..CBU200807-200902

main78950-72010-C0iANA1#..(240G,ARIAL)..CBU201102-201310

main78950-72010-C0iANA1#..240201102-201310

BLACK,TRIM2#

main78950-72010-C0iANA1#..240201102-201310

main78950-72010-C0iANA1#..ARIAL200902-201102

main78950-72010-C0iANA1#..ARIAL200912-201102

main78950-72010-C0iANA1#..ARIAL200912-201102

main78950-72010-C0iANA1#..240201008-201102

main78950-72010-E0iANA1#..240G200807-201310

main78950-72010-E0iANA1#..240G200807-201310

PLUM,TRIM4#

main78950-72010-E0iANA1#..240G200807-200902

78955COVER, REAR SEAT UNDER TRAY RH

main78955-72010-B0iANA1#..240G200807-200902

main78955-72010-B0iANA1#..240G200807-200902

main78955-72010-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

main78955-72010-B2iANA1#..240200902-201102

main78955-72010-B2iANA1#..240200902-201102

DK.GRAY,TRIM1#,2#

main78955-72010-B2iANA1#..240200902-201102

DK.GRAY,TRIM1#

main78955-72010-B2iANA1#..240200902-201102

main78955-72010-B2iANA1#..ARIAL200912-201102

main78955-72010-B2iANA1#..240201102-201310

DK.GRAY,TRIM2#

main78955-72010-B2iANA1#..240201102-201310

main78955-72010-B2iANA1#..240201102-201310

main78955-72010-E0iANA1#..240G..CBU200709-201310

PLUM BROWN,TRIM4#

main78955-72010-E0iANA1#..240G200807-201310

main78955-72010-E0iANA1#..240G200807-200902

main78955-72020-B0iANA1#,GGA10..(240G,350G)..CBU200709-200902

GRAY,TRIM1#

main78955-72020-B2iANA1#..ARIAL200902-201102

DK.GRAY,TRIM1#

main78955-72020-B2iANA1#,GGA10..(240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#,2#

main78955-72020-B2iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK.GRAY,TRIM2#

main78955-72020-E0iANA1#,GGA10..(240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

main78955-72020-E0iANA1#..ARIAL200902-201102

78955BCLIP(FOR REARSEAT UNDER TRAY)

main71769-60010-B6iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

sub71769-60010

main71769-60010-B6iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK.GRAY,TRIM2#

sub71769-60010

main71769-60010-B6iANA1#..ARIAL..CBU201102-201310

sub71769-60010

main71769-60010-B6iANA1#,GGA10..(240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#

sub71769-60010

main71769-60010-B6iANA1#,GGA10..(240G,350G)..CBU200902-201102

DK.GRAY,TRIM1#,2#

sub71769-60010

main71769-60010-B6iANA1#,GGA10..(240G,350G)..CBU200902-201102

sub71769-60010

main71769-60010-B6iANA1#,GGA10..(240G,350G)..CBU200902-201102

sub71769-60010

main71769-60010-B6iANA1#..ARIAL200912-201102

sub71769-60010

main71769-60010-B9iANA1#..240G200807-200902

sub71769-60010

main71769-60010-B9iANA1#..240G200807-200902

sub71769-60010

main71769-60010-B9iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

sub71769-60010

main71769-60010-E6iANA1#,GGA10..(240G,350G)..CBU200709-201310

PLUM BROWN,TRIM4#

sub71769-60010

main71769-60010-E6iANA1#..240G200807-200902

sub71769-60010

main71769-60010-E6iANA1#..240G200807-201310

sub71769-60010

main71769-60010-E6iANA1#..ARIAL200902-201102

sub71769-60010

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-72010-B1iANA1#..240200709-200902

GRAY,TRIM1#

sub79011-72012

sub79011-72011

main79011-72010-B3iANA1#..240200902-201003

MD.GRAY,TRIM1#

sub79011-72012

sub79011-72011

main79011-72010-E0iANA1#..240200709-200902

PLUM BROWN,TRIM4#

sub79011-72012

sub79011-72011

main79011-72010-E1iANA1#..240200902-201003

PLUM,TRIM4#

sub79011-72012

sub79011-72011

main79011-72011-B3iANA1#..240201004-201102

MD.GRAY,TRIM1#

sub79011-72130

main79011-72011-E1iANA1#..240201004-201102

PLUM,TRIM4#

sub79011-72130

main79011-72020-B0iANA1#..240G200807-200902

sub79011-72022

sub79011-72021

main79011-72020-B0iANA1#..240F..CBU200709-200902

GRAY,TRIM1#

sub79011-72022

sub79011-72021

main79011-72020-B0iANA1#..240G200807-200902

sub79011-72022

sub79011-72021

main79011-72020-B2iANA1#..240G200902-201003

sub79011-72022

sub79011-72021

main79011-72020-B2iANA1#..240G200902-201003

MD.GRAY,TRIM1#

sub79011-72022

sub79011-72021

main79011-72020-E0iANA1#..240F..CBU200709-200902

PLUM BROWN,TRIM4#

sub79011-72022

sub79011-72021

main79011-72020-E0iANA1#..240G200807-200902

sub79011-72022

sub79011-72021

main79011-72020-E0iANA1#..240G200807-200902

sub79011-72022

sub79011-72021

main79011-72020-E1iANA1#..240G200902-201003

sub79011-72022

sub79011-72021

main79011-72020-E1iANA1#..240F..CBU200902-201003

PLUM,TRIM4#

sub79011-72022

sub79011-72021

main79011-72021-B2iANA1#..240G201004-201102

main79011-72021-B2iANA1#..240F..CBU201004-201102

MD.GRAY,TRIM1#

main79011-72021-E1iANA1#..240F..CBU201004-201102

PLUM,TRIM4#

main79011-72021-E1iANA1#..240F..CBU201004-201102

main79011-72030-B0iANA1#,GGA10..(240G,350G)..CBU200709-200902

GRAY,TRIM1#

sub79011-72032

sub79011-72031

main79011-72030-B1iANA1#,GGA10..(240G,350G)..CBU200902-201003

MD.GRAY,TRIM1#

sub79011-72032

sub79011-72031

main79011-72030-E0iANA1#,GGA10..(240G,350G)..CBU200709-201003

PLUM BROWN,TRIM4#

sub79011-72032

sub79011-72031

main79011-72031-B1iANA1#,GGA10..(240G,350G)..CBU201004-201102

MD.GRAY,TRIM1#

main79011-72031-E0iANA1#,GGA10..(240G,350G)..CBU201004-201102

PLUM,TRIM4#

main79011-72040-B2iANA1#,GGA10..(240G,350G)..CBU200709-200902

main79011-72040-B4iANA1#,GGA10..(240G,350G,ARIAL)..CBU200902-201102

main79011-72040-C2iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

main79011-72040-E2iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201102

main79011-72040-E3iANA1#,GGA10..(240G,350G)..CBU201102-201310

main79011-72050-C2iANA1#..ARIAL200912-201102

sub79011-72051

main79011-72050-C2iANA1#..ARIAL200902-201102

sub79011-72051

main79011-72060-C1iANA1#..ARIAL200902-201102

BLACK,TRIM2#

sub79011-72061

main79011-72070-B0iANA1#..240201008-201102

sub79011-72071

main79011-72070-B0iANA1#..240200912-201102

sub79011-72071

main79011-72080-C0iANA1#..240201102-201112

BLACK,TRIM2#

sub79011-72080

main79011-72080-C1iANA1#..240201112-201310

BLACK,TRIM2#

sub79011-72080

main79011-72080-E2iANA1#..240201102-201112

PLUM,TRIM4#

sub79011-72080

main79011-72080-E3iANA1#..240201112-201310

PLUM,TRIM4#

sub79011-72080

main79011-72090-C0iANA1#..240G..CBU201102-201112

sub79011-72090

main79011-72090-C1iANA1#..240G..CBU201112-201310

sub79011-72090

main79011-72090-E1iANA1#..240G..CBU201102-201112

sub79011-72090

main79011-72090-E2iANA1#..240G..CBU201112-201310

sub79011-72090

main79011-72100-C1iANA1#,GGA10..(240G,350G)..CBU201102-201202

BLACK,TRIM2#

sub79011-72100

main79011-72100-C2iANA1#,GGA10..(240G,350G)..CBU201202-201310

BLACK,TRIM2#

sub79011-72100

main79011-72100-E2iANA1#,GGA10..(240G,350G)..CBU201102-201202

PLUM,TRIM4#

sub79011-72100

main79011-72100-E3iANA1#,GGA10..(240G,350G)..CBU201202-201310

PLUM,TRIM4#

sub79011-72100

main79011-72110-C1iANA1#..ARIAL..CBU201102-201112

sub79011-72110

sub79011-72111

main79011-72110-C1iANA1#..ARIAL..CBU201102-201112

sub79011-72110

sub79011-72111

main79011-72110-C2iANA1#..ARIAL..CBU201112-201310

sub79011-72110

sub79011-72111

main79011-72110-C2iANA1#..ARIAL..CBU201112-201310

sub79011-72110

sub79011-72111

main79011-72120-C2iANA1#..ARIAL..CBU201102-201112

BLACK,TRIM2#

sub79011-72120

sub79011-72121

main79011-72120-C3iANA1#..ARIAL..CBU201112-201310

BLACK,TRIM2#

sub79011-72120

sub79011-72121

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main71077-72010-B1iANA1#..240200709-200902

GRAY,TRIM1#

sub71077-72012

sub71077-72011

main71077-72010-B2iANA1#..240200902-201003

MD.GRAY,TRIM1#

sub71077-72012

sub71077-72011

main71077-72010-E0iANA1#..240200709-201003

PLUM BROWN,TRIM4#

sub71077-72012

sub71077-72011

main71077-72011-B2iANA1#..240201004-201102

MD.GRAY,TRIM1#

main71077-72011-E0iANA1#..240201004-201102

PLUM,TRIM4#

main71077-72020-B0iANA1#..240G200807-200902

sub71077-72022

sub71077-72021

main71077-72020-B0iANA1#..240G200807-200902

sub71077-72022

sub71077-72021

main71077-72020-B0iANA1#..240F..CBU200709-200902

GRAY,TRIM1#

sub71077-72022

sub71077-72021

main71077-72020-B1iANA1#..240G200902-201003

MD.GRAY,TRIM1#

sub71077-72022

sub71077-72021

main71077-72020-B1iANA1#..240G200902-201003

sub71077-72022

sub71077-72021

main71077-72020-E0iANA1#..240G200807-201003

sub71077-72022

sub71077-72021

main71077-72020-E0iANA1#..240F..CBU200709-201003

PLUM BROWN,TRIM4#

sub71077-72022

sub71077-72021

main71077-72020-E0iANA1#..240G200807-200902

sub71077-72022

sub71077-72021

main71077-72021-B1iANA1#..240F..CBU201004-201102

main71077-72021-B1iANA1#..240F..CBU201004-201102

MD.GRAY,TRIM1#

main71077-72021-E0iANA1#..240G201004-201102

PLUM,TRIM4#

main71077-72021-E0iANA1#..240G201004-201102

main71077-72030-B0iANA1#,GGA10..(240G,350G)..CBU200709-200902

GRAY,TRIM1#

sub71077-72032

sub71077-72031

main71077-72030-B1iANA1#,GGA10..(240G,350G)..CBU200902-201003

MD.GRAY,TRIM1#

sub71077-72032

sub71077-72031

main71077-72030-E0iANA1#,GGA10..(240G,350G)..CBU200709-201003

PLUM BROWN,TRIM4#

sub71077-72032

sub71077-72031

main71077-72031-B1iANA1#,GGA10..(240G,350G)..CBU201004-201102

MD.GRAY,TRIM1#

main71077-72031-E0iANA1#,GGA10..(240G,350G)..CBU201004-201102

PLUM,TRIM4#

main71077-72040-B2iANA1#,GGA10..(240G,350G)..CBU200709-200902

main71077-72040-B4iANA1#,GGA10..(240G,350G,ARIAL)..CBU200902-201102

main71077-72040-C1iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

main71077-72040-E2iANA1#,GGA10..(240G,350G)..CBU200709-201310

main71077-72050-C1iANA1#..ARIAL200902-201102

sub71077-72051

main71077-72050-C1iANA1#..ARIAL200912-201102

sub71077-72051

main71077-72060-C1iANA1#..ARIAL200902-201102

BLACK,TRIM2#

sub71077-72061

main71077-72070-B0iANA1#..240200912-201102

sub71077-72071

main71077-72070-B0iANA1#..240201008-201102

sub71077-72071

main71077-72090-C0iANA1#..240201102-201310

BLACK,TRIM2#

main71077-72090-E2iANA1#..240201102-201310

PLUM,TRIM4#

main71077-72100-C0iANA1#..240G..CBU201102-201310

main71077-72100-E1iANA1#..240G..CBU201102-201310

main71077-72110-C0iANA1#,GGA10..(240G,350G)..CBU201102-201310

BLACK,TRIM2#

main71077-72110-E1iANA1#,GGA10..(240G,350G)..CBU201102-201310

PLUM,TRIM4#

main71077-72120-C1iANA1#..ARIAL..CBU201102-201310

sub71077-72121

main71077-72120-C1iANA1#..ARIAL..CBU201102-201310

sub71077-72121

main71077-72130-C1iANA1#..ARIAL..CBU201102-201310

BLACK,TRIM2#

sub71077-72131

79101FRAME SUB-ASSY, NO.1 SEAT CUSHION

main79101-72010iANA1#..240G,ARIAL200807-201310

main79101-72010iANA1#..ARIAL200912-201102

main79101-72010iANA1#..240201102-201310

main79101-72010iANA1#..240G200807-200902

main79101-72010iANA1#..(240,240F)..CBU200709-201102

main79101-72020iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

79105LEG SUB-ASSY, NO.1 SEAT, RH

main79105-72010iANA1#..ARIAL..CBU201102-201310

main79105-72010iANA1#..240G200807-200902

main79105-72010iANA1#..(240,240F)..CBU200709-201102

main79105-72010iANA1#..240G,ARIAL200807-201310

main79105-72010iANA1#..ARIAL200912-201102

main79105-72020iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

79135PAD, NO.1 SEAT CUSHION

main79135-72010iANA1#..240G200807-200902

main79135-72010iANA1#..(240,240F)..CBU200709-201102

main79135-72010iANA1#..ARIAL..CBU200807-201310

main79135-72010iANA1#..ARIAL..CBU201102-201310

main79135-72010iANA1#..ARIAL200912-201102

main79135-72020iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

79157COVER, NO.1 SEATBACK

main79157-72010-B0iANA1#..240G200807-200902

main79157-72010-B0iANA1#..240G200807-200902

main79157-72010-B0iANA1#..(240,240F)..CBU200709-200902

GRAY,TRIM1#

main79157-72010-B1iANA1#..240G200902-201102

MD.GRAY,TRIM1#

main79157-72010-B1iANA1#..240G200902-201102

main79157-72010-B1iANA1#..240200912-201102

MD.GRAY,TRIM15

main79157-72010-B2iANA1#..240201102-201310

DK.GRAY,TRIM2#

main79157-72010-B2iANA1#..240201102-201310

main79157-72010-B2iANA1#..240201102-201310

main79157-72010-B2iANA1#..ARIAL200902-201102

main79157-72010-B2iANA1#..240200912-201102

DK.GRAY,TRIM15,2#

main79157-72010-B2iANA1#..240200912-201102

main79157-72010-E0iANA1#..240G..CBU200709-201310

PLUM BROWN,TRIM4#

main79157-72010-E0iANA1#..240G200807-200902

main79157-72010-E0iANA1#..240G200807-201310

79175EPAD, NO.1 SEATBACK, RH

main71651-72010iANA1#..(240,240F)..CBU200709-201102

main71651-72010iANA1#..ARIAL..CBU200807-201310

main71651-72010iANA1#..ARIAL..CBU201102-201310

main71651-72010iANA1#..240G200807-200902

main71651-72010iANA1#..ARIAL200912-201102

main71651-72020iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

7270260130BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-60130

7274948020SPACER, REAR SEAT RECLINING

main72749-48020

7274948030SPACER, REAR SEAT RECLINING

main72749-48030

7889948020BOLT, FRONT SEAT

main78899-48020

7889948030BOLT, FRONT SEAT

main78899-48030

7889960050BOLT, FRONT SEAT

main78899-60050

9010510535

main90105-10535

9010906292

main90109-06292

9011910886

main90119-10886

9015960532

main90159-60532

9016740044

main90167-40044

9017005004

main90170-05004

9046313003

main90463-13003

9155180835

main91551-80835

9352054014

main93520-54014

9356054010

main93560-54010

9356054014

main93560-54014

9415081000

main94150-81000

65 parts on this diagram · 5 diagrams in section
