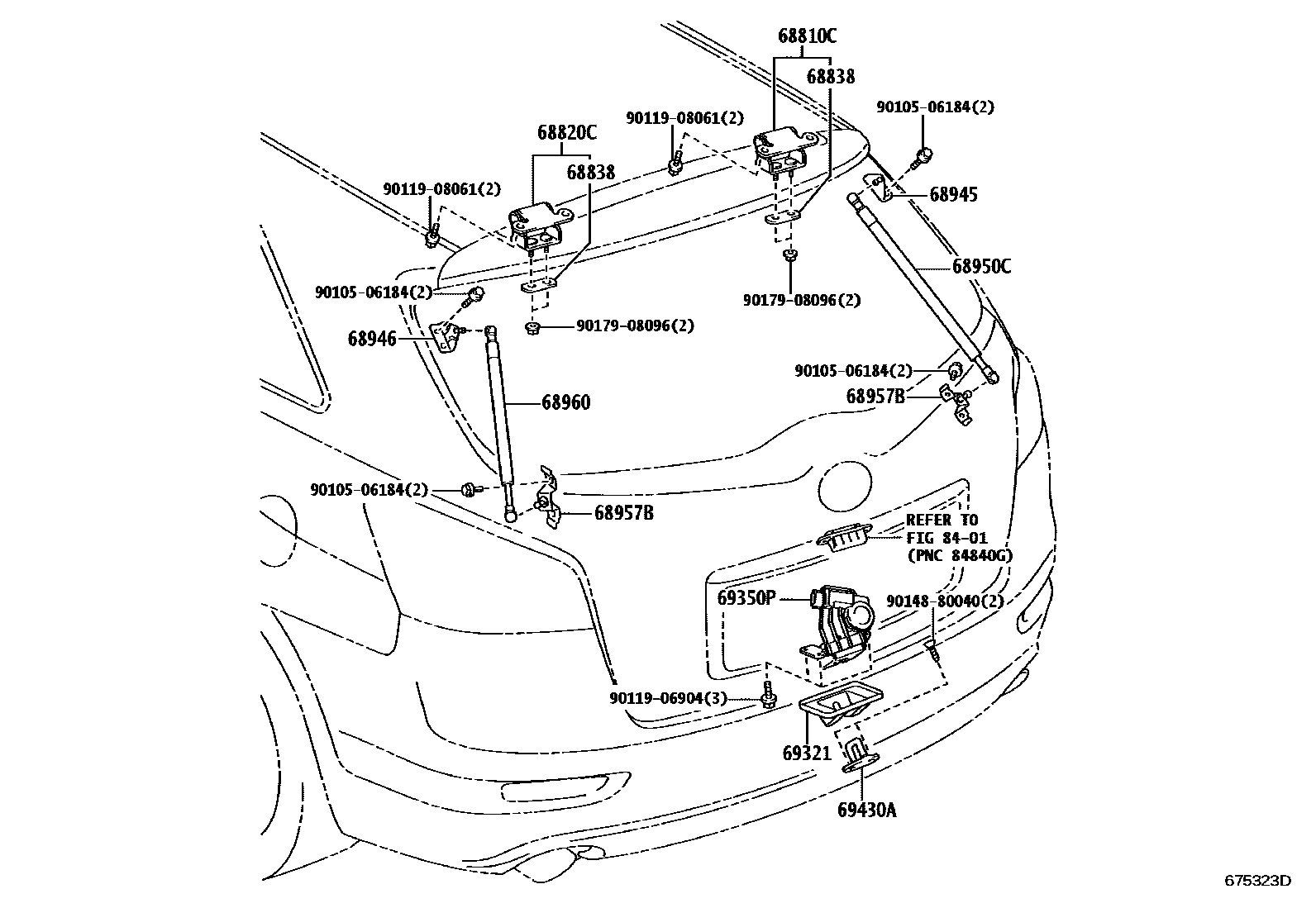

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iANA1#..240F200709-201102

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W450iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201310

68960STAY ASSY, BACK DOOR, LH

main68960-0W450iANA1#..240F200709

69321COVER, BACK DOOR LOCK

main69321-28020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iANA1#,GGA10..CBU200709-201310

sub69350-28151

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-28050iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8401

9010506184

main90105-06184

9011906904

main90119-06904

9011908061

main90119-08061

9014880040

main90148-80040

9017908096

main90179-08096

17 parts on this diagram · 1 diagram in section
