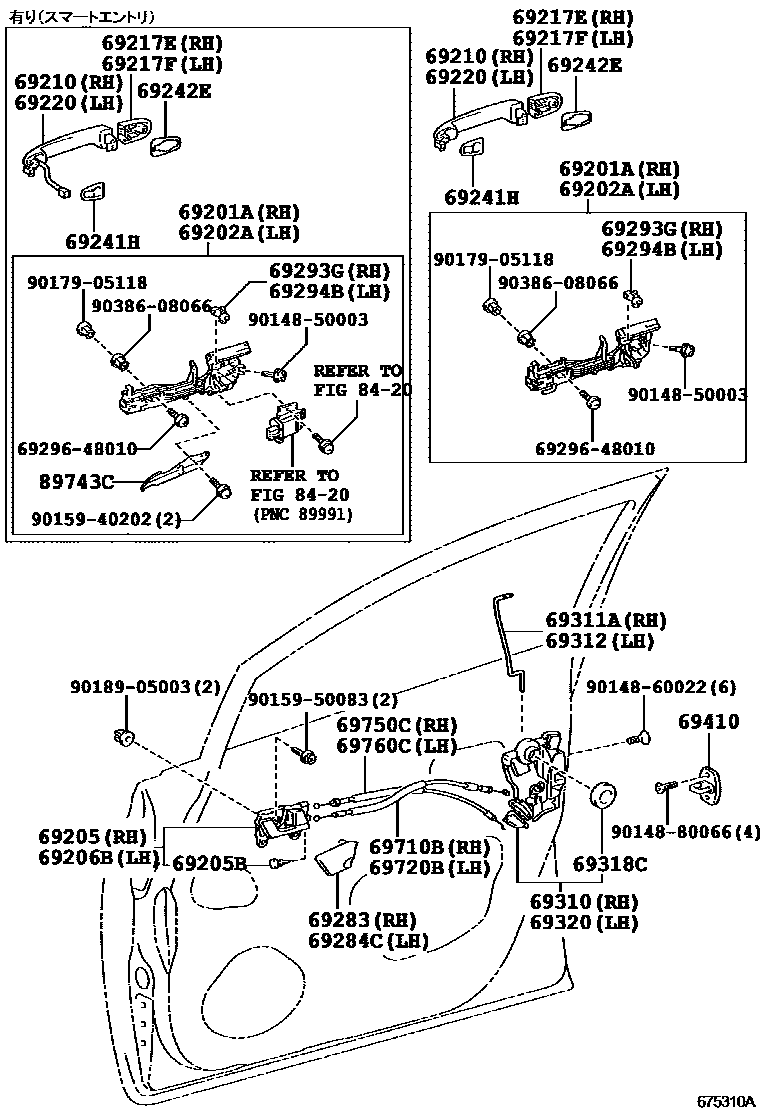

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-28010iANA1#..240201102

main69201-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-28010iANA1#..240201102

main69202-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20210-C0iANA1#,GGA10..CBU200710-201310

BLACK

sub69205-20210

main69270-22010iANA1#,GGA10..CBU200709-200710

sub69205-20210

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20210-C0iANA1#,GGA10..CBU200710-201310

BLACK

sub69206-20210

main69280-22020iANA1#,GGA10..CBU200709-200710

sub69206-20210

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20410-A1iANA1#,GGA10..(240G,350G,ARIAL)..CBU201002-201310

WHITE PEARL CS.,070

sub69210-20410

main69210-20410-B0iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

SILVER ME.,1F7

sub69210-20410

main69210-20410-B4iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

SILVER ME.,1G7

sub69210-20410

main69210-20410-B6iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK. STEEL MC.,1H2

sub69210-20410

main69210-20410-C0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

BLACK MC.,209

sub69210-20410

main69210-20410-C1iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

BLACK,202

sub69210-20410

main69210-20410-D0iANA1#,GGA10..(240G,350G,ARIAL)..CBU201002-201310

BLACKISH RED MC.,3R0

sub69210-20410

main69210-20410-D1iANA1#,GGA10..(240G,350G,ARIAL)..CBU201002-201310

RED M.M.,3R3

sub69210-20410

main69210-20410-H0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

FROSTY GREEN MC.,781

sub69210-20410

main69210-20410-J0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

LT.BLUE M.M.,8S7

sub69210-20410

main69210-20410-J1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

DK.BLUE MC.,8S6

sub69210-20410

main69210-30290-A8iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

WHITE PEARL CS.,070

sub69210-30290

main69210-30290-B8iANA1#,GGA10..(240F,240G,350G)..CBU200709-200807

DK.GRAY M.M.,1E9

sub69210-30290

main69210-30290-B9iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

SILVER ME.,1G7

sub69210-30290

main69210-30290-C2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

BLACK MC.,209

sub69210-30290

main69210-30290-D0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

BLACKISH RED MC.,3R0

sub69210-30290

main69210-30290-D3iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

RED M.M.,3R3

sub69210-30290

main69210-30290-H1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

FROSTY GREEN MC.,781

sub69210-30290

main69210-30290-J2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

DK.BLUE MC.,8S6

sub69210-30290

main69210-30290-J3iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200807-201001

LT.BLUE ME.,8S7

sub69210-30290

main69210-44030-A6iANA1#..240200709-201310

WHITE PEARL CS.,070

sub69210-44030

main69210-44030-A6iANA1#..240201102-201310

sub69210-44030

main69210-44030-A6iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-B0iANA1#..240201102-201310

SILVER ME.,1F7

sub69210-44030

main69210-44030-B0iANA1#..240201102-201310

sub69210-44030

main69210-44030-B7iANA1#..240200709-200807

DK.GRAY M.M.,1E9

sub69210-44030

main69210-44030-C1iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-C1iANA1#..240201102-201310

BLACK,202

sub69210-44030

main69210-44030-C2iANA1#..240200709-201102

BLACK MC.,209

sub69210-44030

main69210-44030-C2iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-D3iANA1#..240200709-201310

RED M.M.,3R3

sub69210-44030

main69210-44030-D3iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-D3iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-D6iANA1#..240200709-201310

BLACKISH RED MC.,3R0

sub69210-44030

main69210-44030-D6iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-D6iANA1#..240201102-201310

sub69210-44030

main69210-44030-H2iANA1#..240200709-201102

FROSTY GREEN MC.,781

sub69210-44030

main69210-44030-H2iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-J2iANA1#..240200709-201102

DK.BLUE MC.,8S6

sub69210-44030

main69210-44030-J2iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-P3iANA1#..240200709-201102

SILVER ME.,1G7

sub69210-44030

main69210-44030-P3iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-P5iANA1#..240201102-201310

DK. STEEL MC.,1H2

sub69210-44030

main69210-44030-P5iANA1#..240201102-201310

sub69210-44030

main69210-44030-R3iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-R3iANA1#..240200902-201102

LT.BLUE M.M.,8S7

sub69210-44030

main69211-28070-A3iANA1#..240201102-201310

sub69211-28070

main69211-28070-C1iANA1#..240201102-201310

sub69211-28070

main69211-28070-P2iANA1#..240201102-201310

sub69211-28070

main69211-28070-S2iANA1#..240201102-201310

sub69211-28070

main69211-28070-X1iANA1#..240201102-201310

sub69211-28070

main69211-28070-X2iANA1#..240201102-201310

sub69211-28070

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-28010-A3iANA1#..240201102-201310

sub69217-28010

main69217-28010-A3iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-A3iANA1#..240200709-201310

WHITE PEARL CS.,070

sub69217-28010

main69217-28010-B4iANA1#..240200709-200807

DK.GRAY M.M.,1E9

sub69217-28010

main69217-28010-C0iANA1#..240200709-201102

BLACK MC.,209

sub69217-28010

main69217-28010-C0iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-C1iANA1#..240201102-201310

sub69217-28010

main69217-28010-C1iANA1#..240201102-201310

BLACK,202

sub69217-28010

main69217-28010-H2iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-H2iANA1#..240200709-201102

FROSTY GREEN MC.,781

sub69217-28010

main69217-28010-P2iANA1#..240201102-201310

SILVER ME.,1F7

sub69217-28010

main69217-28010-P2iANA1#..ARIAL..CBU201102-201310

sub69217-28010

main69217-28010-R9iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-R9iANA1#..240200709-201102

DK.BLUE MC.,8S6

sub69217-28010

main69217-28010-S1iANA1#..240200709-201102

SILVER ME.,1G7

sub69217-28010

main69217-28010-S1iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-S4iANA1#..240201102-201310

sub69217-28010

main69217-28010-S4iANA1#..ARIAL..CBU201102-201310

DK. STEEL MC.,1H2

sub69217-28010

main69217-28010-V4iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-V4iANA1#..240200902-201102

LT.BLUE M.M.,8S7

sub69217-28010

main69217-28010-X2iANA1#..ARIAL..CBU201102-201310

sub69217-28010

main69217-28010-X2iANA1#..240200709-201310

RED M.M.,3R3

sub69217-28010

main69217-28010-X2iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-X3iANA1#..ARIAL..CBU200709-201310

BLACKISH RED MC.,3R0

sub69217-28010

main69217-28010-X3iANA1#..ARIAL200912-201102

sub69217-28010

main69217-28010-X3iANA1#..240201102-201310

sub69217-28010

main69250-30010-A7iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201310

WHITE PEARL CS.,070

sub69250-30010

main69250-30010-B2iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

SILVER ME.,1F7

sub69250-30010

main69250-30010-C0iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

BLACK,202

sub69250-30010

main69250-30010-C2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

BLACK MC.,209

sub69250-30010

main69250-30010-D0iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

BLACKISH RED MC.,3R0

sub69250-30010

main69250-30010-D2iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

RED M.M.,3R3

sub69250-30010

main69250-30010-H2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

FROSTY GREEN MC.,781

sub69250-30010

main69250-30010-J2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

DK.BLUE MC.,8S6

sub69250-30010

main69250-30010-J3iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200807-201102

LT.BLUE ME.,8S7

sub69250-30010

main69250-30010-P3iANA1#,GGA10..(240F,240G,350G)..CBU200709-200807

DK.GRAY M.M.,1E9

sub69250-30010

main69250-30010-P4iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

SILVER ME.,1G7

sub69250-30010

main69250-30010-P7iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK. STEEL MC.,1H2

sub69250-30010

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-60020-A1iANA1#..240200709-201310

WHITE PEARL CS.,070

sub69217-60020

main69217-60020-A1iANA1#..240201102-201310

sub69217-60020

main69217-60020-A1iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-B1iANA1#..240200709-200807

DK.GRAY M.M.,1E9

sub69217-60020

main69217-60020-C0iANA1#..240201102-201310

sub69217-60020

main69217-60020-C0iANA1#..240201102-201310

BLACK,202

sub69217-60020

main69217-60020-C1iANA1#..240200709-201102

BLACK MC.,209

sub69217-60020

main69217-60020-C1iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-H2iANA1#..240200709-201102

FROSTY GREEN MC.,781

sub69217-60020

main69217-60020-H2iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-P0iANA1#..240201102-201310

sub69217-60020

main69217-60020-P0iANA1#..240201102-201310

SILVER ME.,1F7

sub69217-60020

main69217-60020-P8iANA1#..240200709-201102

SILVER ME.,1G7

sub69217-60020

main69217-60020-P8iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-R5iANA1#..240200709-201102

DK.BLUE MC.,8S6

sub69217-60020

main69217-60020-R5iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-S1iANA1#..ARIAL..CBU201102-201310

sub69217-60020

main69217-60020-S1iANA1#..240201102-201310

DK. STEEL MC.,1H2

sub69217-60020

main69217-60020-V0iANA1#..240200902-201102

LT.BLUE M.M.,8S7

sub69217-60020

main69217-60020-V0iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-X0iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-X0iANA1#..240200709-201310

RED M.M.,3R3

sub69217-60020

main69217-60020-X0iANA1#..ARIAL..CBU201102-201310

sub69217-60020

main69217-60020-X1iANA1#..ARIAL200912-201102

sub69217-60020

main69217-60020-X1iANA1#..240200709-201310

BLACKISH RED MC.,3R0

sub69217-60020

main69217-60020-X1iANA1#..240201102-201310

sub69217-60020

main69250-30020-A6iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201310

WHITE PEARL CS.,070

sub69250-30020

main69250-30020-B2iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

SILVER ME.,1F7

sub69250-30020

main69250-30020-C0iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

BLACK,202

sub69250-30020

main69250-30020-C2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

BLACK MC.,209

sub69250-30020

main69250-30020-D0iANA1#,GGA10..(240G,350G,ARIAL)..CBU200709-201310

BLACKISH RED MC.,3R0

sub69250-30020

main69250-30020-D2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201310

RED M.M.,3R3

sub69250-30020

main69250-30020-H2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

FROSTY GREEN MC.,781

sub69250-30020

main69250-30020-J2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

DK.BLUE MC.,8S6

sub69250-30020

main69250-30020-J3iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200807-201102

LT.BLUE ME.,8S7

sub69250-30020

main69250-30020-P2iANA1#,GGA10..(240F,240G,350G)..CBU200709-200807

DK.GRAY M.M.,1E9

sub69250-30020

main69250-30020-P3iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201102

SILVER ME.,1G7

sub69250-30020

main69250-30020-P7iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK. STEEL MC.,1H2

sub69250-30020

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-20410-A1iANA1#,GGA10..(240G,350G,ARIAL)..CBU201002-201310

WHITE PEARL CS.,070

sub69210-20410

main69210-20410-B0iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

SILVER ME.,1F7

sub69210-20410

main69210-20410-B4iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

SILVER ME.,1G7

sub69210-20410

main69210-20410-B6iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

DK. STEEL MC.,1H2

sub69210-20410

main69210-20410-C0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

BLACK MC.,209

sub69210-20410

main69210-20410-C1iANA1#,GGA10..(240G,350G,ARIAL)..CBU201102-201310

BLACK,202

sub69210-20410

main69210-20410-D0iANA1#,GGA10..(240G,350G,ARIAL)..CBU201002-201310

BLACKISH RED MC.,3R0

sub69210-20410

main69210-20410-D1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201310

RED M.M.,3R3

sub69210-20410

main69210-20410-H0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

FROSTY GREEN MC.,781

sub69210-20410

main69210-20410-J0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

LT.BLUE M.M.,8S7

sub69210-20410

main69210-20410-J1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU201002-201102

DK.BLUE MC.,8S6

sub69210-20410

main69210-30290-A8iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

WHITE PEARL CS.,070

sub69210-30290

main69210-30290-B8iANA1#,GGA10..(240F,240G,350G)..CBU200709-200807

DK.GRAY M.M.,1E9

sub69210-30290

main69210-30290-B9iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

SILVER ME.,1G7

sub69210-30290

main69210-30290-C2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

BLACK MC.,209

sub69210-30290

main69210-30290-D0iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

BLACKISH RED MC.,3R0

sub69210-30290

main69210-30290-D3iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

RED M.M.,3R3

sub69210-30290

main69210-30290-H1iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

FROSTY GREEN MC.,781

sub69210-30290

main69210-30290-J2iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200709-201001

DK.BLUE MC.,8S6

sub69210-30290

main69210-30290-J3iANA1#,GGA10..(240F,240G,350G,ARIAL)..CBU200807-201001

LT.BLUE ME.,8S7

sub69210-30290

main69210-44030-A6iANA1#..ARIAL..CBU200709-201310

WHITE PEARL CS.,070

sub69210-44030

main69210-44030-A6iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-A6iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-B0iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-B0iANA1#..240201102-201310

SILVER ME.,1F7

sub69210-44030

main69210-44030-B7iANA1#..240200709-200807

DK.GRAY M.M.,1E9

sub69210-44030

main69210-44030-C1iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-C1iANA1#..ARIAL..CBU201102-201310

BLACK,202

sub69210-44030

main69210-44030-C2iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-C2iANA1#..240200709-201102

BLACK MC.,209

sub69210-44030

main69210-44030-D3iANA1#..240200709-201310

RED M.M.,3R3

sub69210-44030

main69210-44030-D3iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-D3iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-D6iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-D6iANA1#..240200709-201310

BLACKISH RED MC.,3R0

sub69210-44030

main69210-44030-D6iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-H2iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-H2iANA1#..240200709-201102

FROSTY GREEN MC.,781

sub69210-44030

main69210-44030-J2iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-J2iANA1#..240200709-201102

DK.BLUE MC.,8S6

sub69210-44030

main69210-44030-P3iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-P3iANA1#..240200709-201102

SILVER ME.,1G7

sub69210-44030

main69210-44030-P5iANA1#..ARIAL..CBU201102-201310

DK. STEEL MC.,1H2

sub69210-44030

main69210-44030-P5iANA1#..ARIAL..CBU201102-201310

sub69210-44030

main69210-44030-R3iANA1#..ARIAL200912-201102

sub69210-44030

main69210-44030-R3iANA1#..240200902-201102

LT.BLUE M.M.,8S7

sub69210-44030

main69211-28070-A3iANA1#..240201102-201310

sub69211-28070

main69211-28070-C1iANA1#..240201102-201310

sub69211-28070

main69211-28070-P2iANA1#..240201102-201310

sub69211-28070

main69211-28070-S2iANA1#..240201102-201310

sub69211-28070

main69211-28070-X1iANA1#..240201102-201310

sub69211-28070

main69211-28070-X2iANA1#..240201102-201310

sub69211-28070

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-28060iANA1#..240F200709-201102

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-33030iANA1#,GGA10201102

main69242-60030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-20020-C0iANA1#,GGA10..CBU200710-201310

BLACK

sub69283-20020

main69283-22020iANA1#,GGA10..CBU200709-200710

sub69283-20020

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-20010-C0iANA1#,GGA10..CBU200710-201310

BLACK

sub69284-20010

main69284-22020iANA1#,GGA10..CBU200709-200710

sub69284-20010

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69310LOCK ASSY, FRONT DOOR, RH

main69030-42210iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69320LOCK ASSY, FRONT DOOR, LH

main69040-12560iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8420

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-30130iANA1#,GGA10..CBU200709-201310

main89743-68010iANA1#,GGA10..CBU200709-201310

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9015940202

main90159-40202

9015950083

main90159-50083

9017905118

main90179-05118

9018905003

main90189-05003

9038608066

main90386-08066

36 parts on this diagram · 1 diagram in section
