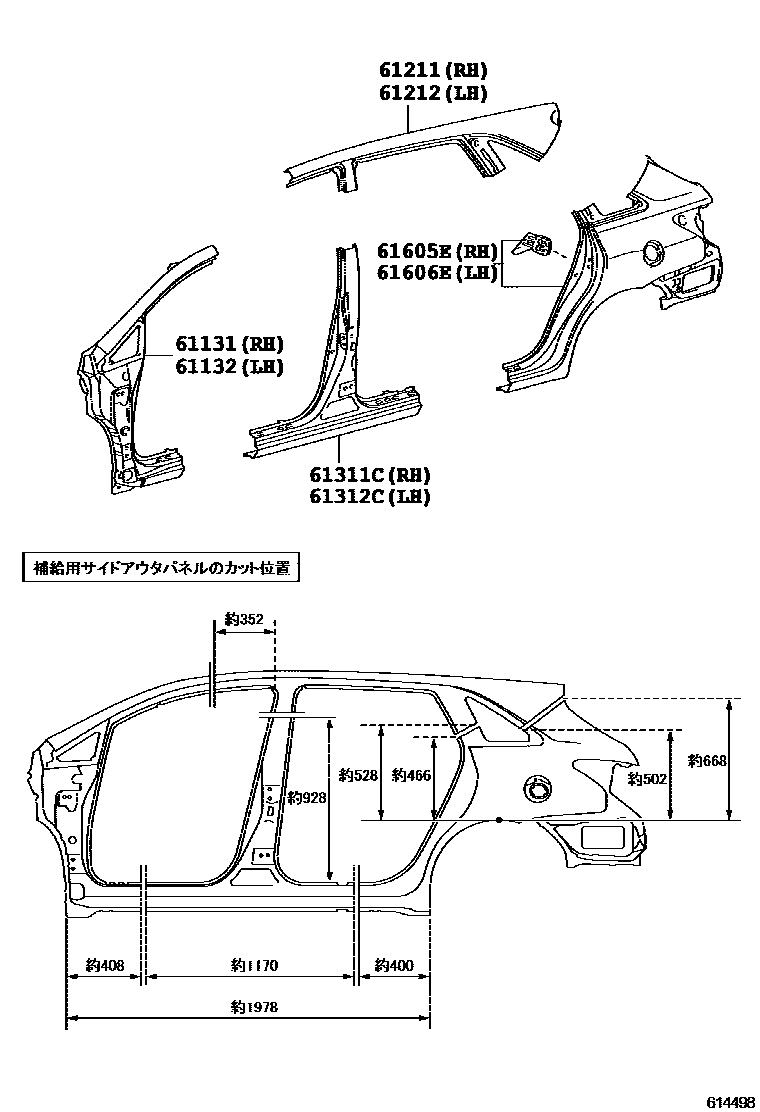

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-72010iANA1#,GGA10..CBU200709-200809

sub61131-72011

main61131-72011iANA1#,GGA10..(240,240F,240G,350G)..CBU200809-201310

main61131-72020iANA1#..ARIAL200902-201310

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-72010iANA1#,GGA10..CBU200709-200809

sub61132-72011

main61132-72011iANA1#,GGA10..(240,240F,240G,350G)..CBU200809-201310

main61132-72020iANA1#..ARIAL200902-201310

61211RAIL, ROOF SIDE, OUTER RH

main61211-72010iANA1#,GGA10..CBU200709-201310

61212RAIL, ROOF SIDE, OUTER LH

main61212-72010iANA1#,GGA10..CBU200709-201310

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-72010iANA1#,GGA10..CBU200709-200808

sub61311-72011

main61311-72011iANA1#,GGA10..(240,240F,240G,350G)..CBU200809-201310

main61311-72020iANA1#..ARIAL200902-201310

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-72010iANA1#,GGA10..CBU200709-200808

sub61312-72011

main61312-72011iANA1#,GGA10..(240,240F,240G,350G)..CBU200809-201310

main61312-72020iANA1#..ARIAL200902-201310

61605EPANEL, QUARTER, RH

main61605-72011iANA1#,GGA10..(240,240F,240G,350G)..CBU200709-201310

main61605-72020iANA1#..ARIAL..CBU200902-201310

61606EPANEL, QUARTER, LH

main61606-72011iANA1#,GGA10..(240,240F,240G,350G)..CBU200709-201310

main61606-72020iANA1#..ARIAL200902-201310

8 parts on this diagram · 3 diagrams in section
