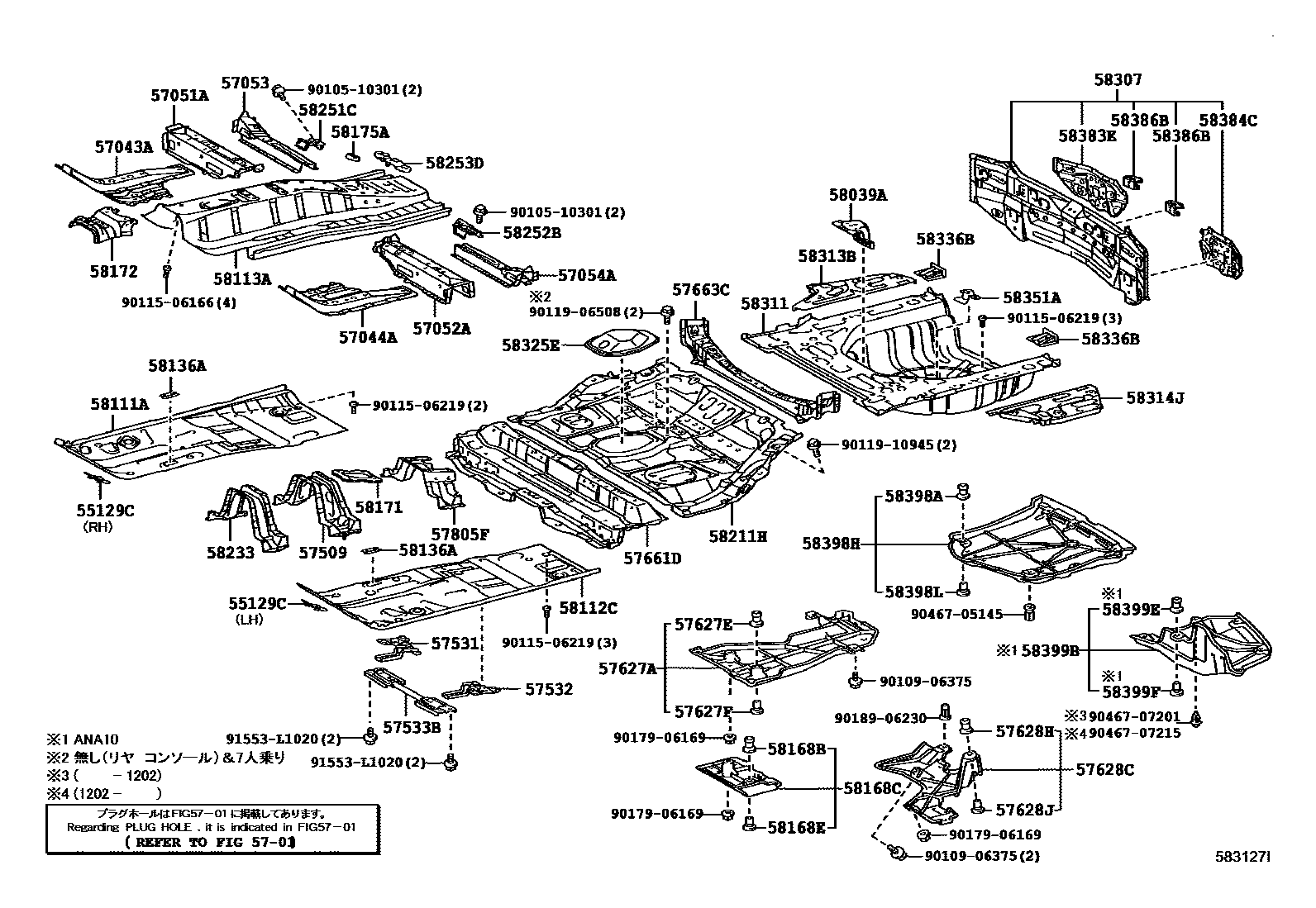

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55129CCOVER, DASH PANEL HOLE

main55129-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

main55139-12050iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-12060iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12060iANA10,GGA10..CBU200709-200802

sub57509-12061

main57509-12061iANA10..240F200803-201102

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

57533BBRACE, FRONT FLOOR, CENTER

main57501-12020iANA10,GGA10..240,240G,350G,ARIAL200709-201102

57627ACOVER, REAR FLOOR SIDE MEMBER, RH

main57627-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

57627ECLIP, REAR FLOOR SIDE MEMBER COVER, NO.1

main90467-17024-A0iANA10,GGA10..CBU200709-201209

SUPER WHITE 2

sub90467-17026

main90467-17026-A0iANA10,GGA10..CBU201210-201310

SUPER WHITE 2

57627FCLIP, REAR FLOOR SIDE MEMBER COVER, NO.2

main90467-17025-C0iANA10,GGA10..CBU200709-201209

BLACK

main90467-17027-C0iANA10,GGA10..CBU201210-201310

BLACK

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-72010iANA10,GGA10200709-201007

sub57628-72011

main57628-72011iANA10,GGA10..240,240G,350G,ARIAL201008-201102

57628HCLIP, REAR FLOOR SIDE MEMBER COVER, NO.1

main90467-17024-A0iANA10,GGA10..CBU200709-201209

SUPER WHITE 2

sub90467-17026

main90467-17026-A0iANA10,GGA10..CBU201210-201310

SUPER WHITE 2

57628JCLIP, REAR FLOOR SIDE MEMBER COVER, NO.2

main90467-17025-C0iANA10,GGA10..CBU200709-201209

BLACK

main90467-17027-C0iANA10,GGA10..CBU201210-201310

BLACK

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main57407-72020iANA15..240,240G,ARIAL200709-201102

57663CMEMBER, REAR FLOOR CROSS, CENTER

main58305-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-12150iANA10,GGA10200709-201208

sub57805-12151

main57805-12151iANA10,GGA10201209

58039AREINFORCEMENT SUB-ASSY, REAR FLOOR PANEL

main58039-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58111APAN, FRONT FLOOR, RH

main58111-72901iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58112CPAN, FRONT FLOOR, LH

main58112-72901iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58113APANEL, FRONT FLOOR, CENTER

main58113-72901iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main58113-72902iANA15..240,240G,ARIAL200709-201102

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58168BCLIP, NO.1(FOR FLOOR UNDER COVER)

main90467-17024-A0iANA1#,GGA10..CBU200709-201209

SUPER WHITE 2

sub90467-17026

main90467-17026-A0iANA1#,GGA10..CBU201210-201310

SUPER WHITE 2

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58168ECLIP, NO.2(FOR FLOOR UNDER COVER)

main90467-17025-C0iANA1#,GGA10..CBU200709-201209

BLACK

main90467-17027-C0iANA1#,GGA10..CBU201210-201310

BLACK

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12120iANA10,GGA10..240,240G,350G,ARIAL200709-201102

58172BRACKET, COMPUTER MOUNTING, NO.3

main58173-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58176-12010iANA15..240,240G,ARIAL200709-201102

main58176-12020iANA10..240F200709-201102

58211HPAN, CENTER FLOOR

main58211-72010iANA10,GGA10200709-201002

sub58211-72011

main58211-72011iANA10,GGA10..240,240G,350G,ARIAL201003-201102

main58211-72020iANA15200709-201003

sub58211-72021

main58211-72021iANA15..240F201003-201102

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-12070iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main58204-12020iANA15..240,240G,ARIAL200709-201102

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main58251-12050iANA15..240F200709-201102

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58253DBRACKET, PARKING BRAKE CABLE

main58253-12070iANA15..240,240G,ARIAL200709-201102

main58253-72010iANA10..240F200709-201102

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-72011iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58311PAN, REAR FLOOR

main58311-72901iANA10..240F200709-201102

main58311-72902iANA15..240F200709-201102

58313BPANEL, REAR FLOOR SIDE, RH

main58313-72010iANA1#..240F200709-201102

main58313-72020iGGA10200709-201102

58314JPANEL, REAR FLOOR SIDE, LH

main58314-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-72010iANA10..240F200709-201102

main58325-72020iANA15..240F200709-201102

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12090iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12060iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-72011iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-72011iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-12020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58398ACLIP, NO.3(FOR FLOOR UNDER COVER)

main90467-17024-A0iANA1#,GGA10..CBU200709-201209

SUPER WHITE 2

sub90467-17026

main90467-17026-A0iANA1#,GGA10..CBU201210-201310

SUPER WHITE 2

58398HCOVER, FLOOR UNDER, NO.1

main58398-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58398LCLIP, NO.4(FOR FLOOR UNDER COVER)

main90467-17025-C0iANA1#,GGA10..CBU200709-201209

BLACK

main90467-17027-C0iANA1#,GGA10..CBU201210-201310

BLACK

58399BCOVER, FLOOR UNDER, NO.2

main58399-72010iANA1#..240,240G,ARIAL200709-201102

58399ECLIP, NO.1(FOR FLOOR UNDER COVER)

main90467-17024-A0iANA1#..CBU200709-201209

SUPER WHITE 2

sub90467-17026

main90467-17026-A0iANA1#..CBU201210-201310

SUPER WHITE 2

58399FCLIP, NO.2(FOR FLOOR UNDER COVER)

main90467-17025-C0iANA1#..CBU200709-201209

BLACK

main90467-17027-C0iANA1#..CBU201210-201310

BLACK

9010510301

main90105-10301

9010906375

main90109-06375

9011506166

main90115-06166

9011506219

main90115-06219

9011906508

main90119-06508

9011910945

main90119-10945

9017906169

main90179-06169

9018906230

main90189-06230

9046705145

main90467-05145

9046707201

main90467-07201

9046707215

main90467-07215

91553L1020

main91553-L1020

65 parts on this diagram · 2 diagrams in section
