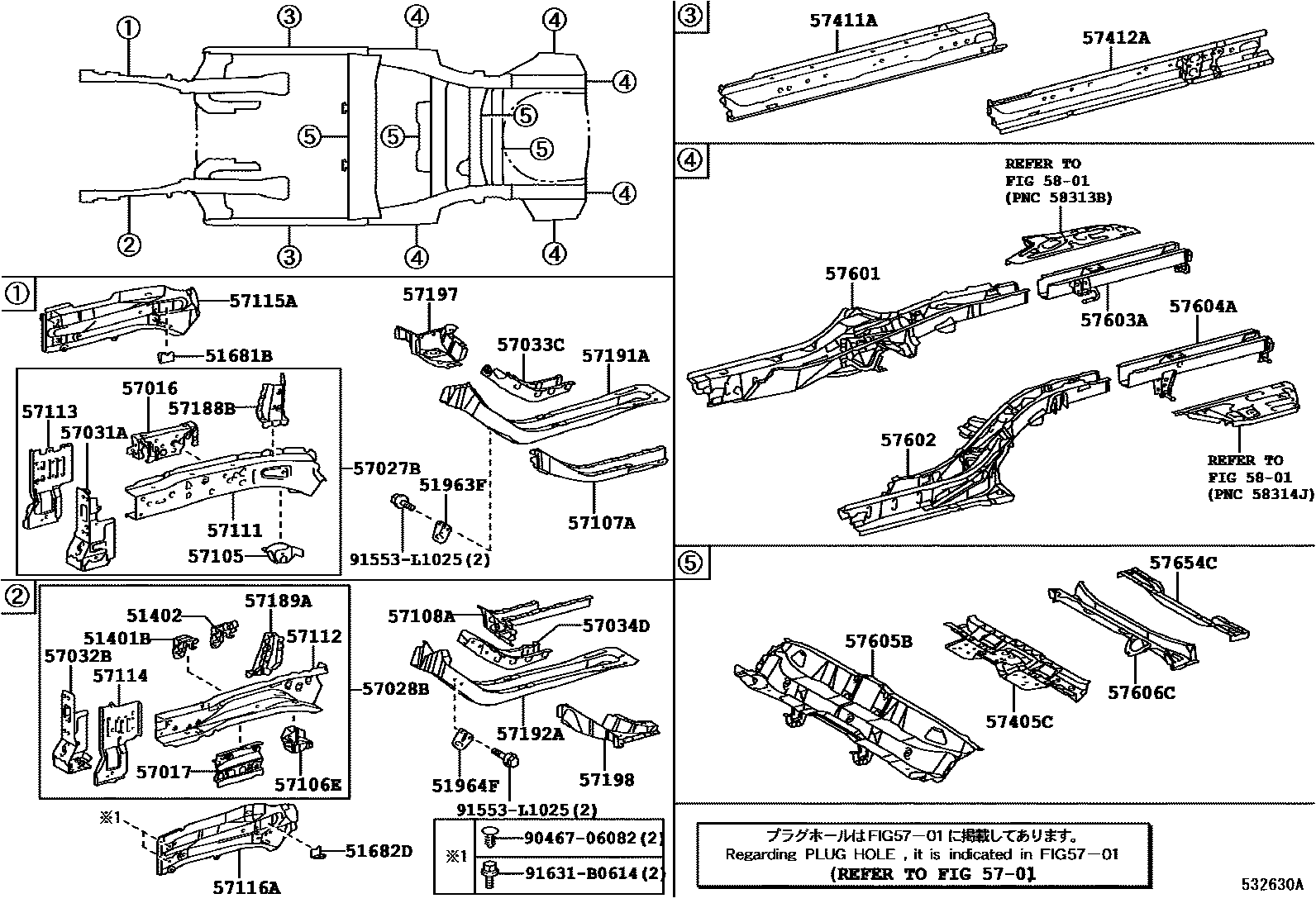

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020iANA1#..240F200709

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

51963FHOOK, TRANSPORT

main51963-12250iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

51964FHOOK, TRANSPORT, LH

main51964-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57111MEMBER, FRONT SIDE, RH

main57111-12230iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57112MEMBER, FRONT SIDE, LH

main57112-12190iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

sub57114-12191

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

sub57025-12010

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090iANA1#..240F200709

sub57116-12091

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57197BOX, TORQUE, FRONT RH

main57197-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57198BOX, TORQUE, FRONT LH

main57198-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-72010iANA1#,GGA10200709-201007

main57405-72011iANA1#,GGA10..240,240G,350G,ARIAL201008-201102

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-72010iANA10,GGA10200709-201003

main57601-72011iANA10,GGA10..240,240G,350G,ARIAL201102

main57601-72020iANA15200709-201003

main57601-72021iANA15..240,240G,ARIAL201003-201102

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-72010iANA10,GGA10200709-201003

main57602-72011iANA10,GGA10..240,240G,350G,ARIAL201003-201102

main57602-72020iANA15200709-201003

main57602-72021iANA15..240F201003

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-72010iANA10,GGA10..CBU200709-200806

main57605-72011iANA10,GGA10..240,240G,350G,ARIAL201102

main57605-72020iANA15..CBU200709-200806

main57605-72021iANA15..240F200807

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-72010iANA10,GGA10..CBU200709-200711

main57606-72011iANA10,GGA10..240,240G,350G,ARIAL200712-201102

main57606-72020iANA15..CBU200709-200711

main57606-72021iANA15..240F200712

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

5801

9046706082

main90467-06082

91553L1025

main91553-L1025

91631B0614

main91631-B0614

45 parts on this diagram · 1 diagram in section
