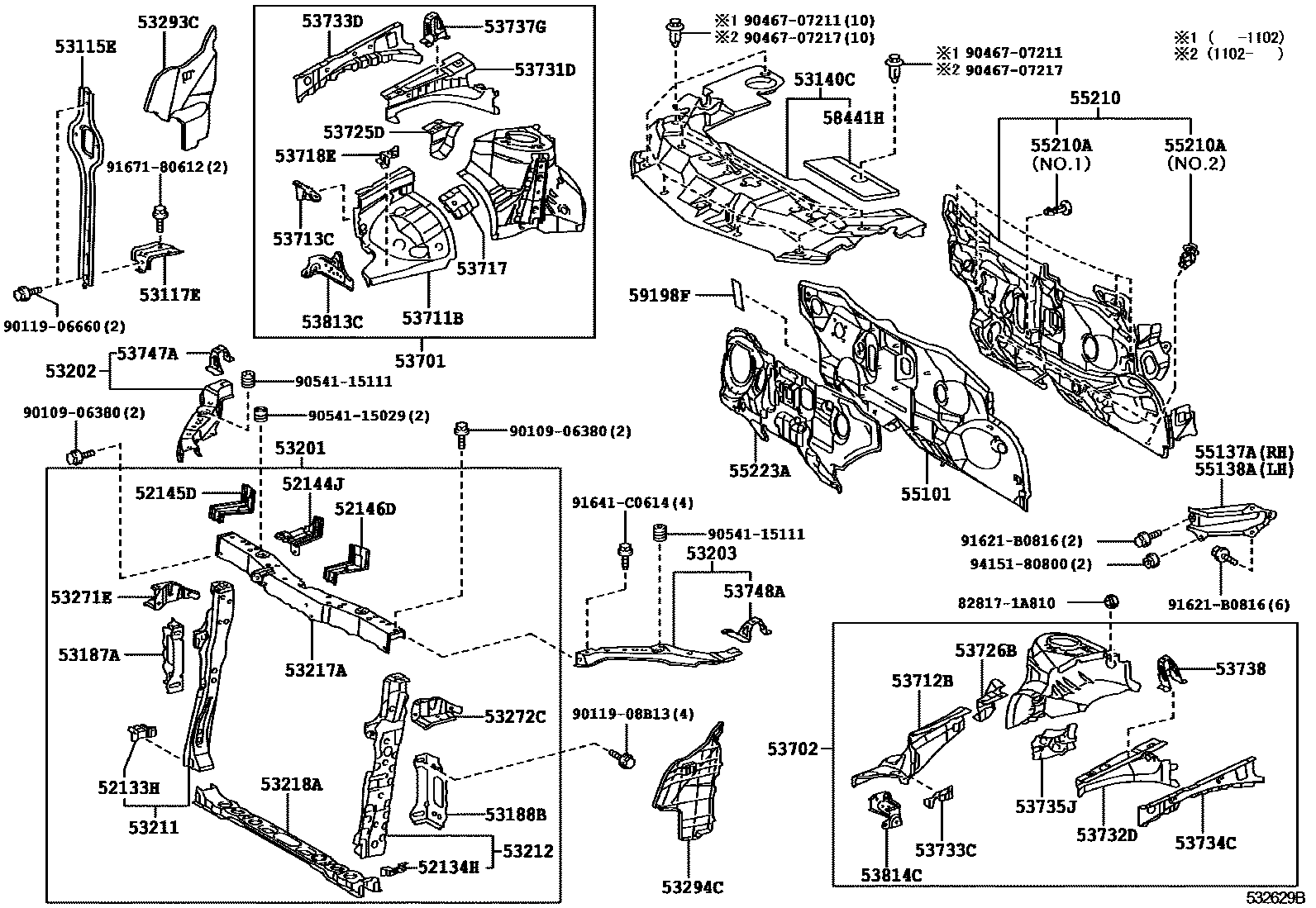

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52133HBRACKET, FRONT BUMPER, RH

main52133-12150iANA1#,GGA10..240,240G,350G,ARIAL200801-201102

52134HBRACKET, FRONT BUMPER, LH

main52134-12090iANA1#,GGA10..CBU200709-200801

52144JSTAY, FRONT BUMPER, CENTER

main52085-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53115EBRACKET, RADIATOR GRILLE

main53115-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53117EBRACKET, RADIATOR GRILLE, LOWER

main53117-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53140CCOVER ASSY, RADIATOR

main53140-72010iANA1#,GGA10..240,240G,350G201102

main53140-72020iANA1#..ARIAL201102

53187ASTAY, RADIATOR SUPPORT, RH

main53187-12030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53188BSTAY, RADIATOR SUPPORT, LH

main53188-12030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53201SUPPORT SUB-ASSY, RADIATOR

main53201-72901iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-72010iANA1#..240F200709

53211SUPPORT, RADIATOR, RH

main53209-12140iANA1#,GGA10..CBU200709-200801

53212SUPPORT, RADIATOR, LH

main53204-12060iANA1#,GGA10..CBU200709-200801

53217ABRACE, HOOD LOCK SUPPORT

main53208-12560iANA1#,GGA10..CBU200709-200801

main53208-72010iANA1#,GGA10..240,240G,350G,ARIAL201004-201102

53218ASUPPORT, RADIATOR, LOWER

main53218-12901iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-72010iANA1#,GGA10..240,240G,350G200709-201102

main53293-72020iANA1#..ARIAL200902-201102

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-72010iANA1#,GGA10..240,240G,350G201102

main53294-72020iANA1#..ARIAL200902-201102

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-72010iANA1#,GGA10..CBU200709-201102

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-72010iANA1#,GGA10..CBU200709-201102

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12270iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12220iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

sub53712-12221

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53717PLATE, FENDER APRON, RH

main53717-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53718ESTAY, FRONT FENDER APRON, FRONT

main53718-12060iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53733CPATCH, FRONT FENDER APRON

main53736-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-12070iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53813CEXTENSION, FRONT FENDER, RH

main53813-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53814CEXTENSION, FRONT FENDER, LH

main53814-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

55101PANEL SUB-ASSY, DASH

main55101-72010iANA1#,GGA10..CBU200709-201102

main55101-72011iANA1#,GGA10..CBU201203-201310

55137ABRACE, DASH TO FRAME, RH

main55137-12030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

sub55137-75010

55138ABRACE, DASH TO FRAME, LH

main55138-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

55210INSULATOR ASSY, DASH PANEL

main55210-72010iANA1#,GGA10..CBU200709-200801

main55210-72011iANA1#,GGA10..240,240G,350G,ARIAL201102

55210ACLIP

main90467-11122×5iANA1#,GGA10..240,240G,350G,ARIAL201102

main90467-11127×3iANA1#,GGA10..240,240G,350G,ARIAL201102

55223AINSULATOR, DASH PANEL, OUTER

main55223-12170iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

58441HCOVER, BATTERY SERVICE HOLE

main58441-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

59198FSEAL, NOISE SHUTTER

main59198-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010906380

main90109-06380

9011906660

main90119-06660

9011908B13

main90119-08B13

9046707211

main90467-07211

9046707217

main90467-07217

9054115029

main90541-15029

9054115111

main90541-15111

91621B0816

main91621-B0816

91641C0614

main91641-C0614

9167180612

main91671-80612

9415180800

main94151-80800

62 parts on this diagram · 2 diagrams in section
