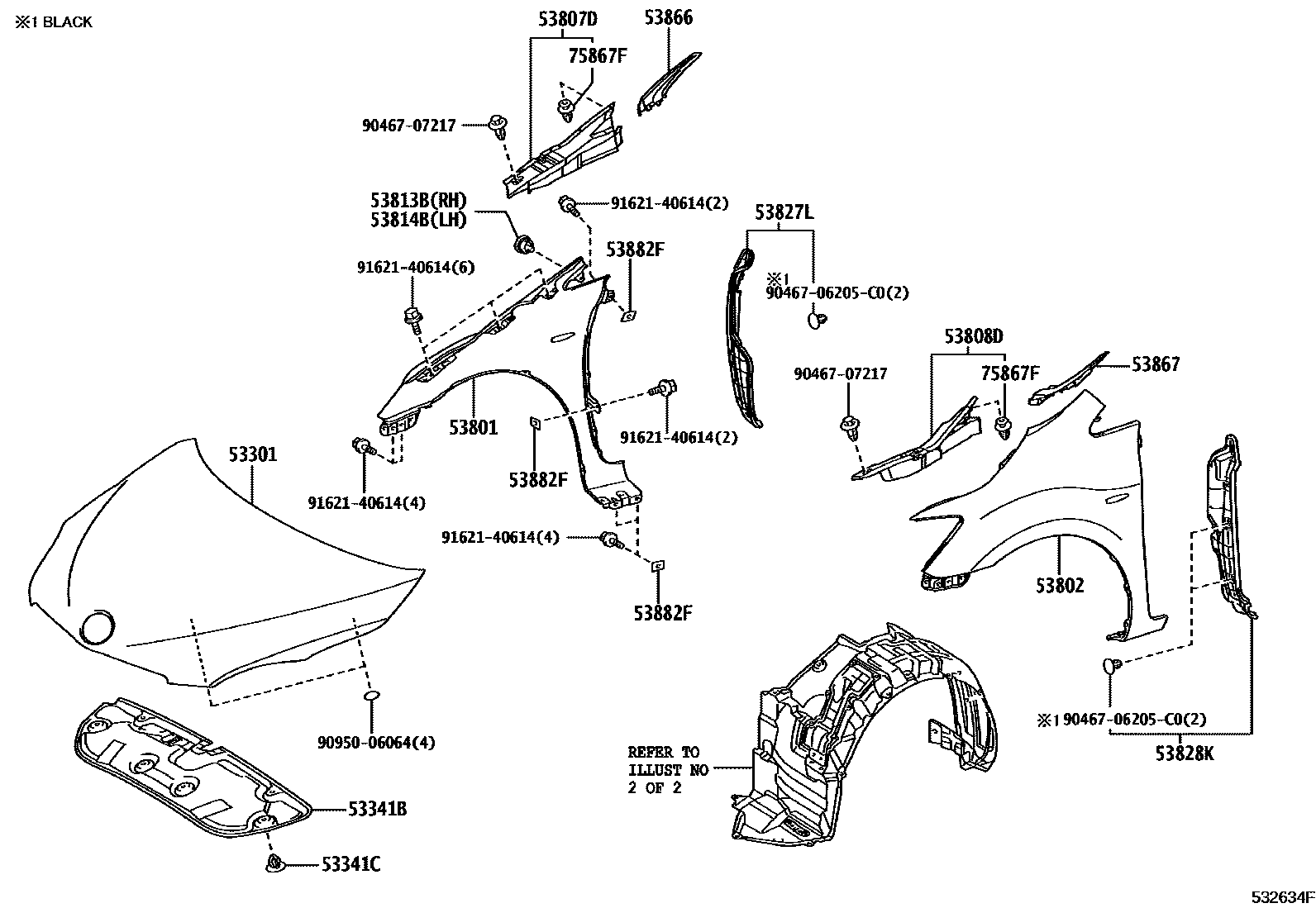

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-72010iANA1#,GGA10..240,240G,350G200709-201102

main53301-72020iANA1#..ARIAL200902-201102

53341BINSULATOR, HOOD

main53341-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53801FENDER SUB-ASSY, FRONT RH

main53811-72010iANA1#,GGA10..CBU200709-200902

main53811-72020iANA1#..(240F,240G)..CBU200807-200902

main53811-72020iANA1#..240G200807-200902

main53811-72020iANA1#,GGA10..240,240G,350G,ARIAL200902-201102

53802FENDER SUB-ASSY, FRONT LH

main53812-72010iANA1#,GGA10..CBU200709-200902

main53812-72020iANA1#..240G200807-200902

main53812-72020iANA1#..240G200807-200902

main53812-72020iANA1#,GGA10..240,240G,350G,ARIAL200902-201102

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53813BEXTENSION, FRONT FENDER, RH

main53813-48011iANA1#,GGA10201102

main53813-52020iANA1#,GGA10..CBU200709-201101

53814BEXTENSION, FRONT FENDER, LH

main53813-48011iANA1#,GGA10201102

main53813-52020iANA1#,GGA10..CBU200709-201101

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-72010iANA1#..240F200709-201102

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-72010iANA1#,GGA10..CBU200709-200808

sub53866-72011

main53866-72011iANA1#,GGA10..240,240G,350G,ARIAL200809-201102

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-72010iANA1#,GGA10..CBU200709-200808

sub53867-72011

main53867-72011iANA1#,GGA10..240,240G,350G,ARIAL200809-201102

53882FSEAL, FRONT FENDER

main53882-16030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75867FCLIP, ROCKER PANEL MOULDING

main75867-33030iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

9046706205C0

main90467-06205C0

9046707217

main90467-07217

9095006064

main90950-06064

9162140614

main91621-40614

19 parts on this diagram · 2 diagrams in section
