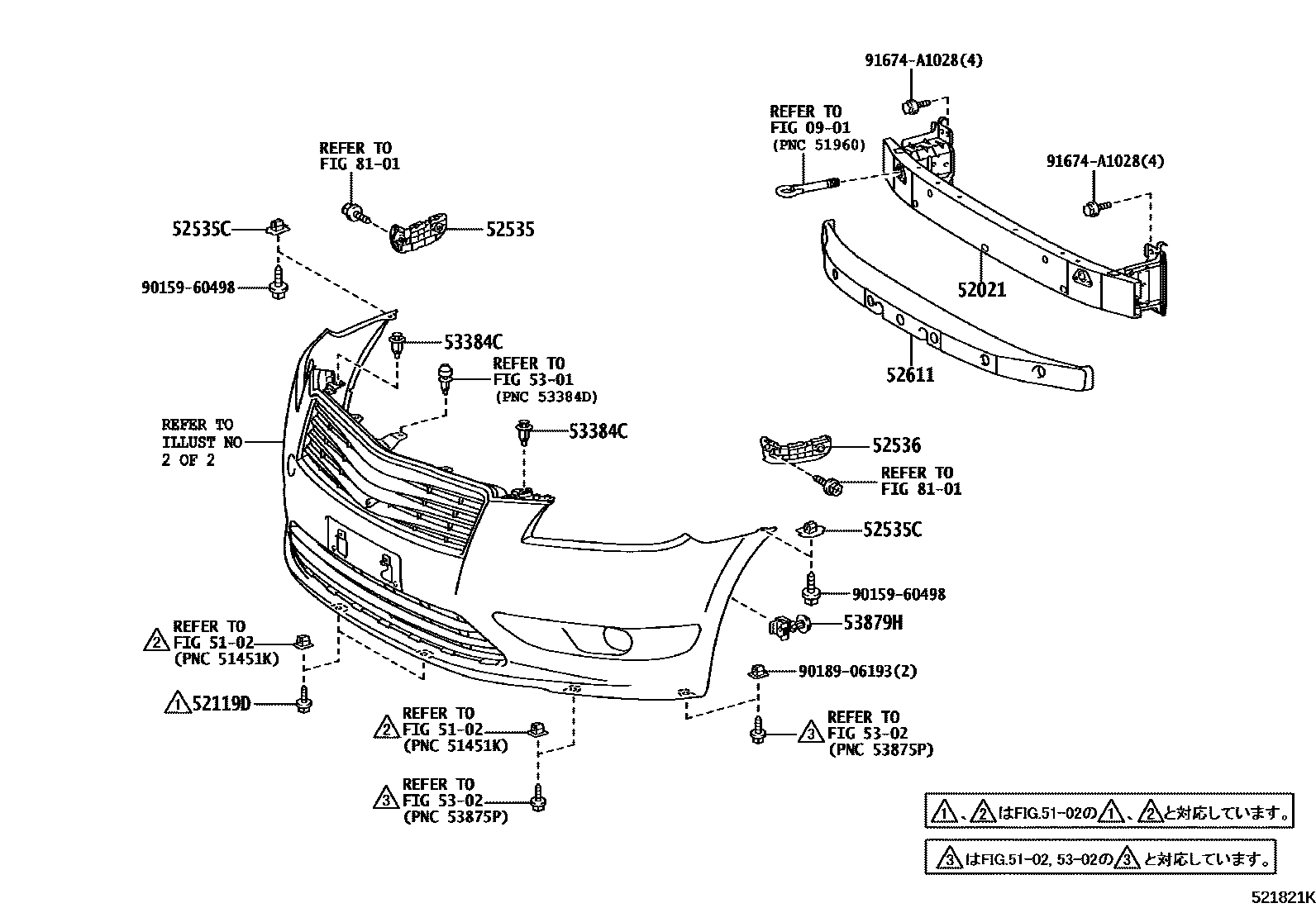

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1 0007 1���� ������ 0008 1���� ������ 0009 1������ 0010 1������

0901

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

52119DSCREW, NO.1

main90159-60498iANA1#,GGA10..CBU200712-201310

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-72010iANA1#..240F200709-201102

52611ABSORBER, FRONT BUMPER ENERGY

main52611-72010iANA1#,GGA10..CBU200709-200901

sub52611-72011

main52611-72011iANA1#..240F200902-201102

main52611-72020iANA1#,GGA10..240,240G,350G,ARIAL201102

5301

5302

53384CCUSHION, HOOD, CENTER

main53384-68010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

53879HRETAINER, FRONT FENDER LINER

main53879-28010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

8101

9015960498

main90159-60498

9018906193

main90189-06193

91674A1028

main91674-A1028

16 parts on this diagram · 8 diagrams in section
