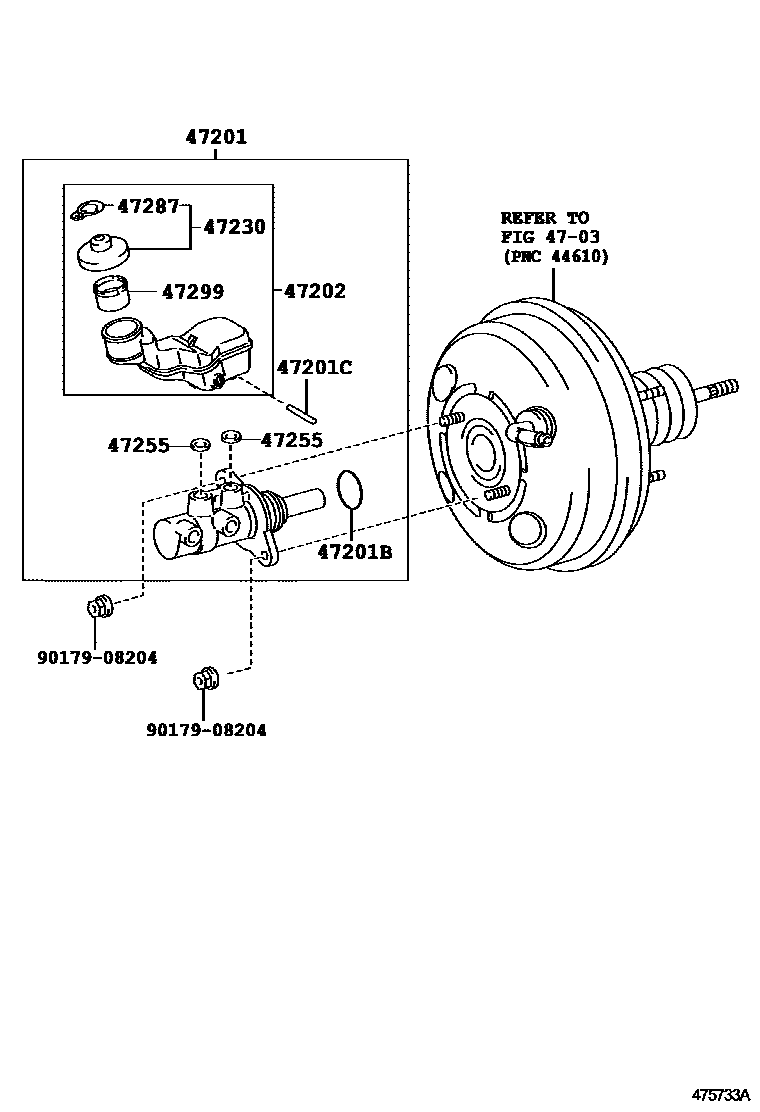

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12B00iANA1#,GGA10..240,240G,350G,ARIAL200709-201203

sub47201-12B01

main47201-12B01iANA1#,GGA10201204-201205

sub47201-12B02

main47201-12B02iANA1#,GGA10201205

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12220iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
