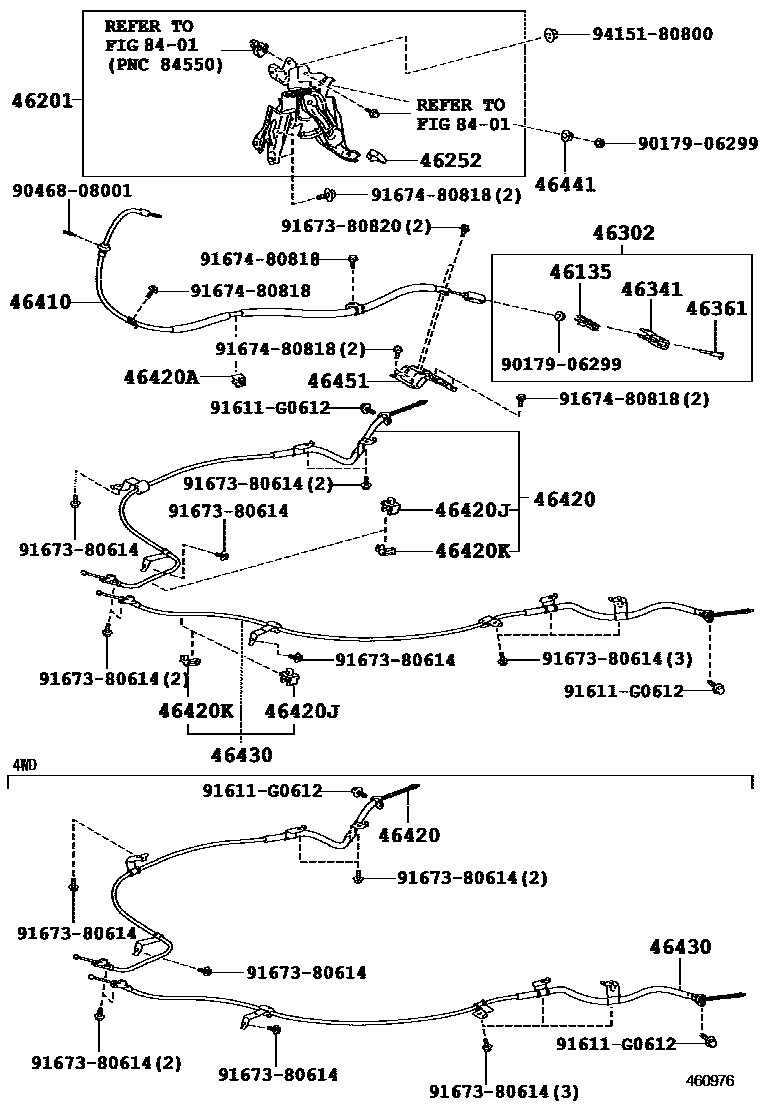

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iANA1#..240F200709-201102

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

46252PAD, PARKING PEDAL

main46252-22010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-72010iANA1#,GGA10200709-200903

sub46302-75010

main46302-75010iANA1#,GGA10..240,240G,350G,ARIAL200904-201102

46341EQUALIZER, PARKING BRAKE

main46341-12040iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

46361ROD, PARKING BRAKE PULL

main46326-47020iANA1#,GGA10..240,240G,350G,ARIAL200904-201102

main46326-72010iANA1#,GGA10200709-200903

sub46326-47020

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-72010iANA10,GGA10200709-200903

sub46410-72011

main46410-72011iANA10,GGA10..240,240G,350G,ARIAL200904-201102

main46410-72020iANA15200709-200903

sub46410-72021

main46410-72021iANA15..240,240G,ARIAL200904-201102

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-72010iANA10,GGA10..CBU200709-201310

main46420-72020iANA15..CBU200709-201310

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-12030iANA10,GGA10..240,240G,350G,ARIAL200709-201102

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46411-12040iANA10,GGA10..240,240G,350G,ARIAL200709-201102

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-72010iANA10,GGA10..CBU200709-201310

main46430-72020iANA15..CBU200709-201310

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

46451BRACKET, CABLE SUPPORT

main46451-72010iANA10,GGA10..240,240G,350G,ARIAL200709-201102

main46451-72020iANA15..240F200709-201102

8401

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9167380614

main91673-80614

9167380820

main91673-80820

9167480818

main91674-80818

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
