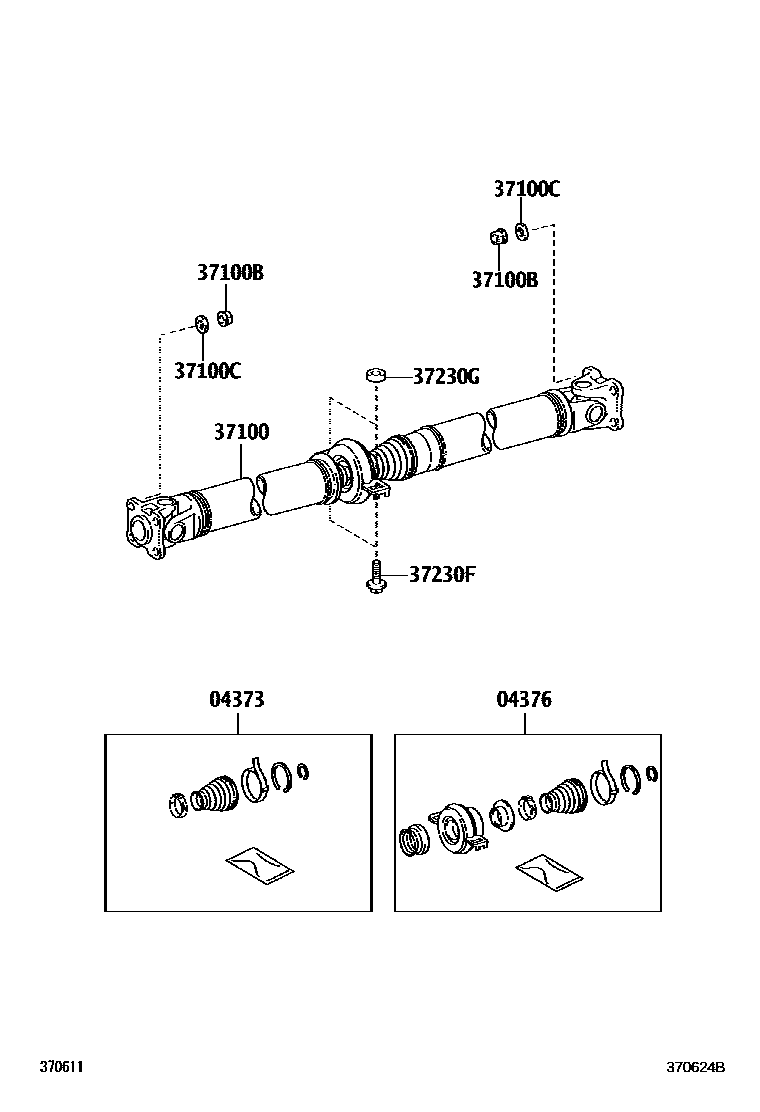

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iANA15..CBU200709-201310

04376BEARING KIT, CENTER SUPPORT

main04376-52010iANA15..CBU200709-201310

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-72010iANA15..240F200709-201102

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08197iANA15..240,240G,ARIAL200709-201102

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-08097iANA15..240,240G,ARIAL200709-201102

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444iANA15..240F200709-201102

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iANA15..240F200709-201102

main90201-10083iANA15..240,240G,ARIAL200709-201102

main90201-10123iANA15..240F200709-201102

7 parts on this diagram · 1 diagram in section
