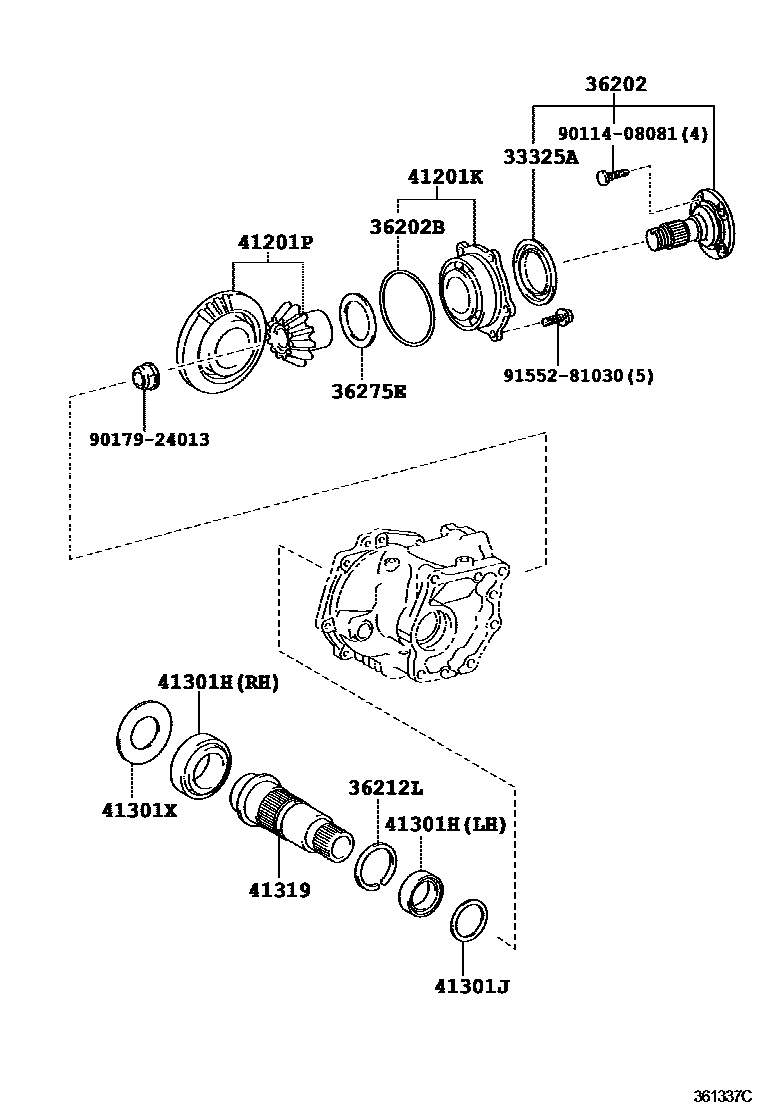

TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36202BRING, O(FOR TRANSFER OUTPUT REAR SHAFT)
36212LRING, SHAFT SNAP
36275EWASHER, TRANSFER OUTPUT SHAFT
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
sub36250-42030
41201PGEAR KIT, TRANSFER
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41319CASE, TRANSFER RING GEAR MOUNTING
9011408081
main90114-08081
9017924013
main90179-24013
9155281030
main91552-81030
14 parts on this diagram · 1 diagram in section
