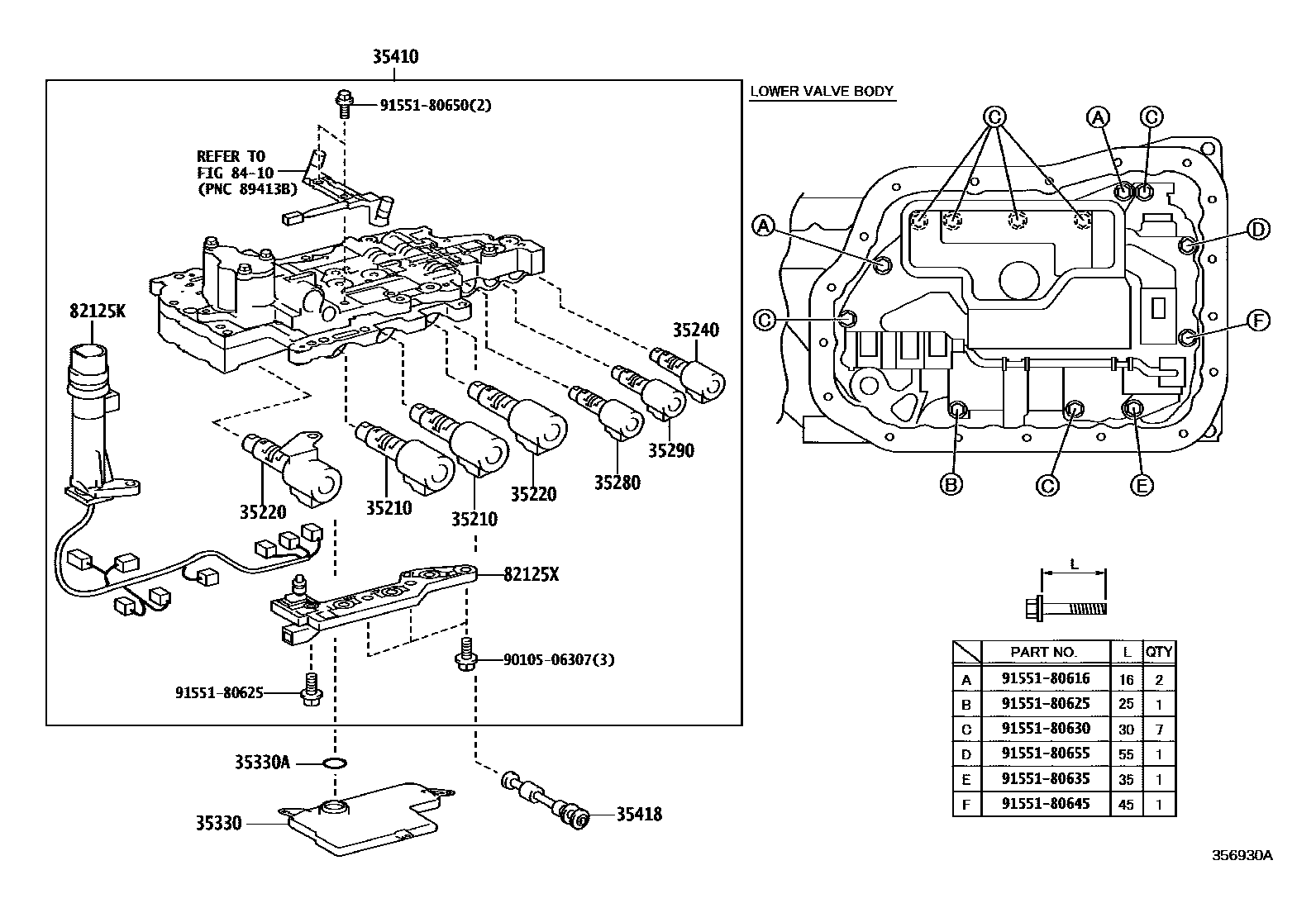

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E 0002 1U660E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iGGA10200709-201310

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iGGA10200709-201310

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-33040iGGA10..CBU200709-200812

sub35240-73010

main35240-73010iGGA10200812-201310

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52040iGGA10200709-201310

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iGGA10200709-201310

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGGA10200709-201308

sub35330-48020

main35330-48020iGGA10..CBU201308-201310

35330ARING, O (FOR OIL STRAINER)

main90301-27010iGGA10..CBU200709-201108

main90301-27015iGGA10..CBU201108-201310

35410BODY ASSY, TRANSMISSION VALVE

main35410-33171iGGA10200709-201310

35418VALVE, MANUAL

main35418-33020iGGA10..CBU200709-200812

sub35418-73010

main35418-73010iGGA10200812-201310

82125KWIRE, TRANSMISSION

main82125-33100iGGA10..CBU200709-201310

82125XWIRE, TRANSMISSION, WITH TEMPERATURE SENSOR

main82125-33090iGGA10..CBU200709-201310

sub82125-33091

8410

9010506307

main90105-06307

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180645

main91551-80645

9155180650

main91551-80650

9155180655

main91551-80655

20 parts on this diagram · 2 diagrams in section
