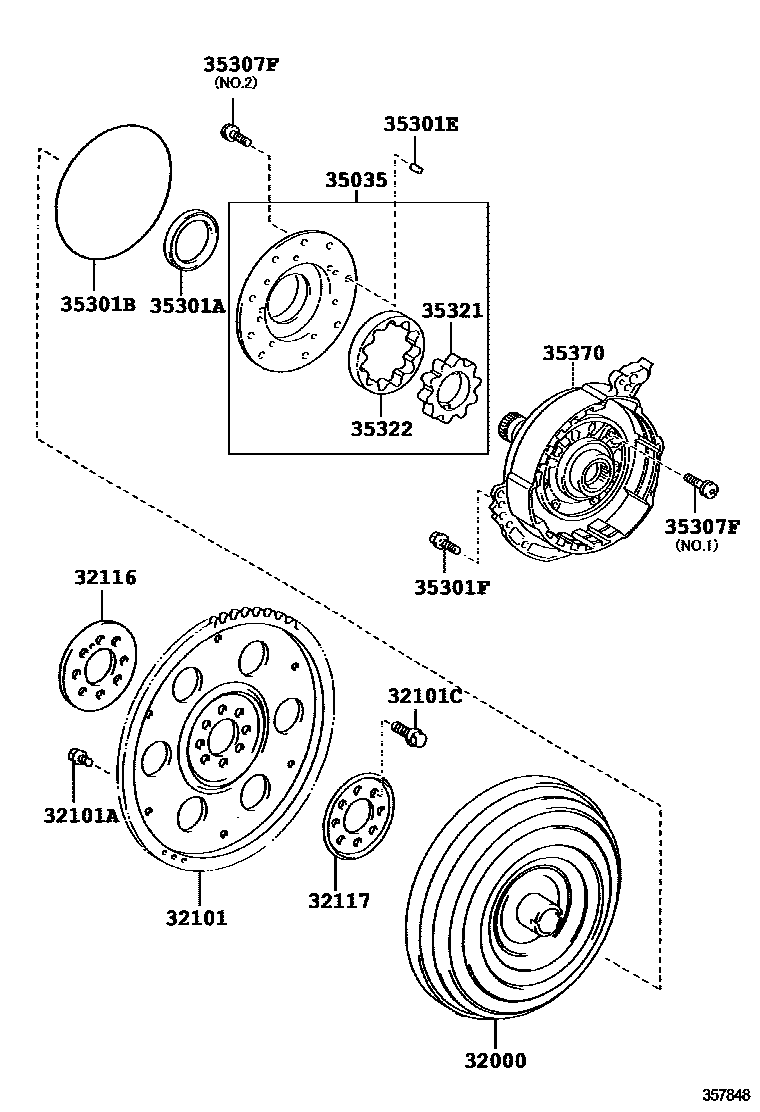

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-33131iGGA10..CBU200709-200812

main32000-33132iGGA10..CBU200812-200905

sub32000-33160

main32000-33133iGGA10..CBU201102-201103

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-48010iGGA10200709-201102

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001×8iGGA10200709-201102

main90119-09025×8iGGA10201102

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iGGA10201102

main90105-A0022×8iGGA10200709-201102

32116SPACER, DRIVE PLATE, FRONT

main32116-32020iGGA10201102

32117SPACER, DRIVE PLATE, REAR

main32117-32020iGGA10201102

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-33030iGGA10200709-201102

main35035-33031iGGA10..CBU201108-201310

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43010iGGA10200709-201102

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-33010iGGA10..CBU201105-201310

main90301-99158iGGA10..CBU200709-201102

35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)

main90250-08040×2iGGA10200709-201102

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main91551-80835×7iGGA10200709-201102

35307FBOLT (FOR STATOR SHAFT)

main90148-60064×7iGGA10200709-201102

main90148-60065×9iGGA10..CBU201102-201310

35321GEAR, FRONT OIL PUMP DRIVE

main35321-33110iGGA10200709-201010

main35321-33111iGGA10..CBU201102-201310

main35321-33120iGGA10200709-201010

main35321-33121iGGA10201010-201102

main35321-33130iGGA10200709-201010

main35321-33131iGGA10..CBU201102-201310

main35321-33140iGGA10200709-201010

main35321-33141iGGA10..CBU201102-201310

main35321-33150iGGA10200709-201010

main35321-33151iGGA10201010-201102

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-33110iGGA10200709-201102

main35322-33120iGGA10..CBU201102-201310

main35322-33130iGGA10200709-201102

main35322-33140iGGA10..CBU201102-201310

main35322-33150iGGA10200709-201102

35370SHAFT ASSY, STATOR

main35370-33031iGGA10200709-201102

15 parts on this diagram · 1 diagram in section
