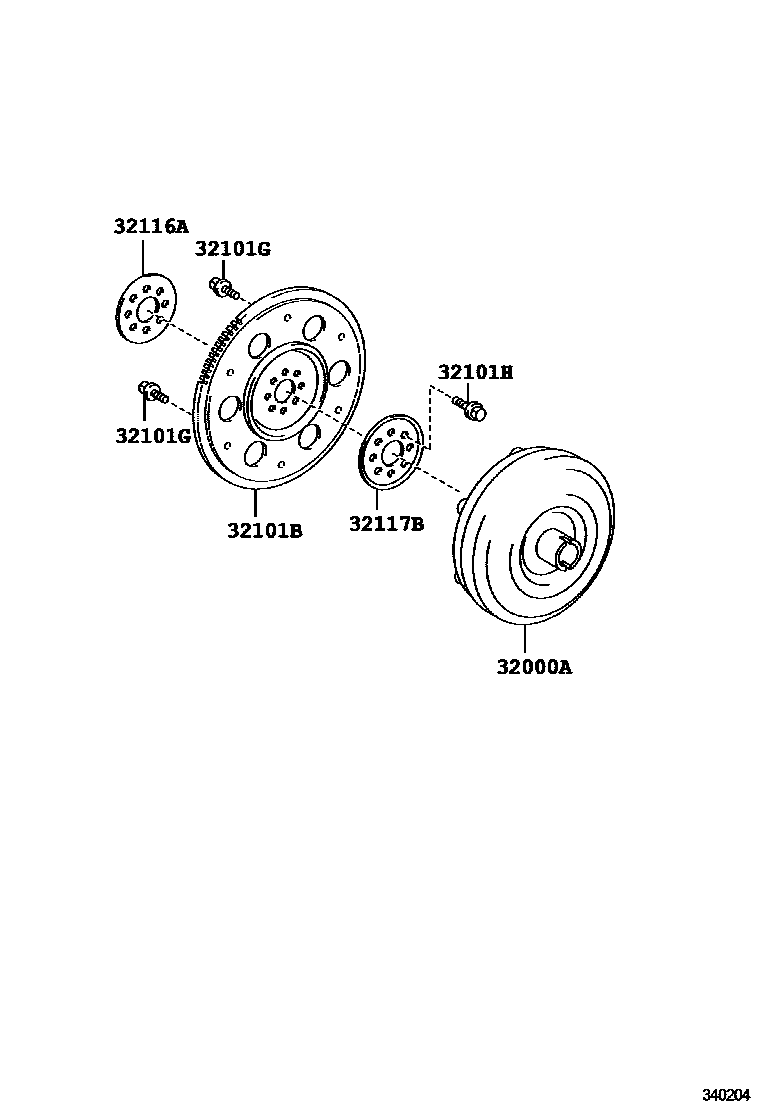

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-42050iANA1#..CBU200709-201310

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06040iANA1#..240F200808-201102

main32101-28040iANA1#..240,240G,ARIAL200709-201102

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iANA1#..240,240G,ARIAL200709-201102

main90119-09025iANA1#..240,240G,ARIAL200709-201102

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184iANA1#..240,240G,ARIAL200709-201102

sub90105-12384

main90105-12184iANA1#..240,240G,ARIAL201102

sub90105-12384

main90105-A0060iANA1#..240,240G,ARIAL200709-201102

sub90105-12184

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iANA1#..240F200709-201102

32117BSPACER, DRIVE PLATE, REAR

main32117-06010iANA1#201112

main32117-20060iANA1#..240,240G,ARIAL200709-201112

main32117-20060iANA1#201112

6 parts on this diagram · 1 diagram in section
