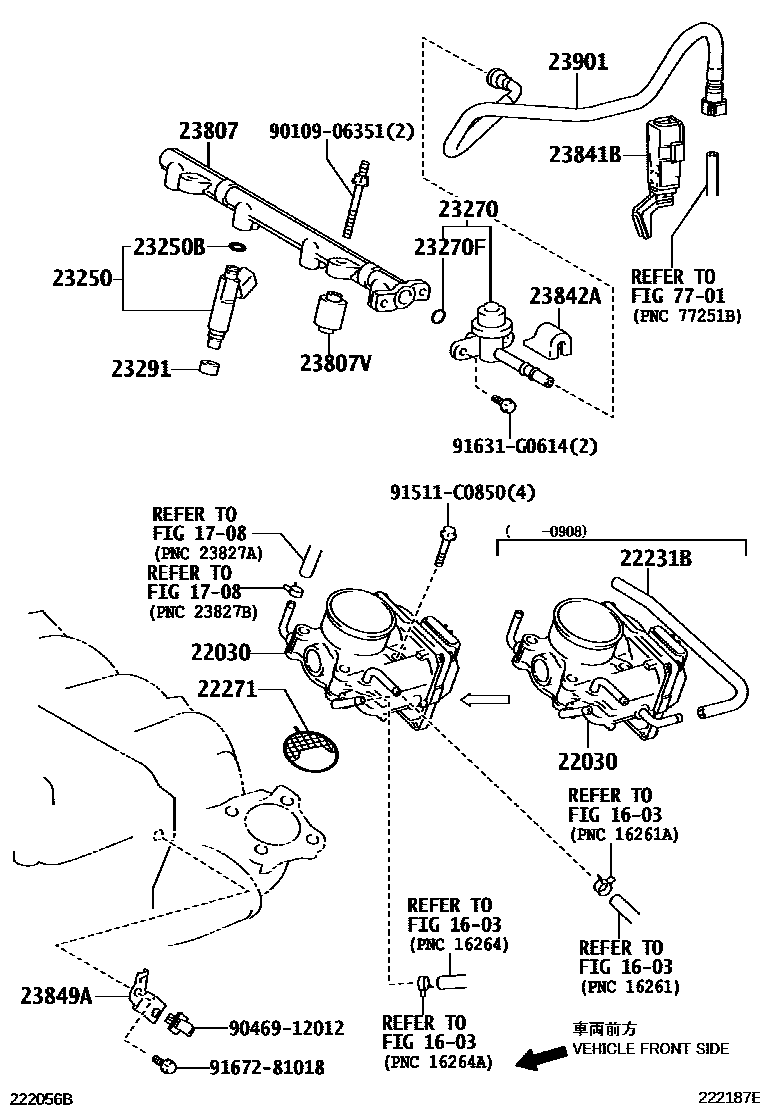

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i2AZFE..ANA1#200709-200908

main22030-28071i2AZFE..ANA1#..240,240G,ARIAL201102

main22030-31030i2GRFE..GGA10201102

22231BHOSE, THROTTLE BODY

main22231-28060i2AZFE..ANA1#200709-200908

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GGA10200709-201102

main22271-75031i2AZFE..ANA1#..240,240G,ARIAL200709-201102

23250INJECTOR ASSY, FUEL

main23209-31050×6i2GRFE..GGA10201102

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GGA10200709-201102

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main90301-07037

main23270-28051

main23270-28052

23270FRING, O(FOR PULSATION DAMPER)

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GGA10200709-201102

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31090i2GRFE..GGA10201102

23807VSPACER, NO.1(FOR DELIVERY PIPE)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2AZFE..ANA1#..240,240G,ARIAL200709-201102

main23841-37090i2AZFE..ANA1#201211

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2AZFE..ANA1#..240F200709

main23842-31040i2GRFE..GGA10200709-201102

23849ASUPPORT, FUEL PIPE

main23849-28080i2AZFE..ANA1#..240,240G,ARIAL201102

23901TUBE SUB-ASSY, FUEL

main23901-28390i2AZFE..ANA1#..240,240G,ARIAL201102

main23901-31150i2GRFE..GGA10200709-201102

7701

9010906351

main90109-06351

9046912012

main90469-12012

91511C0850

main91511-C0850

91631G0614

main91631-G0614

9167281018

main91672-81018

22 parts on this diagram · 2 diagrams in section
