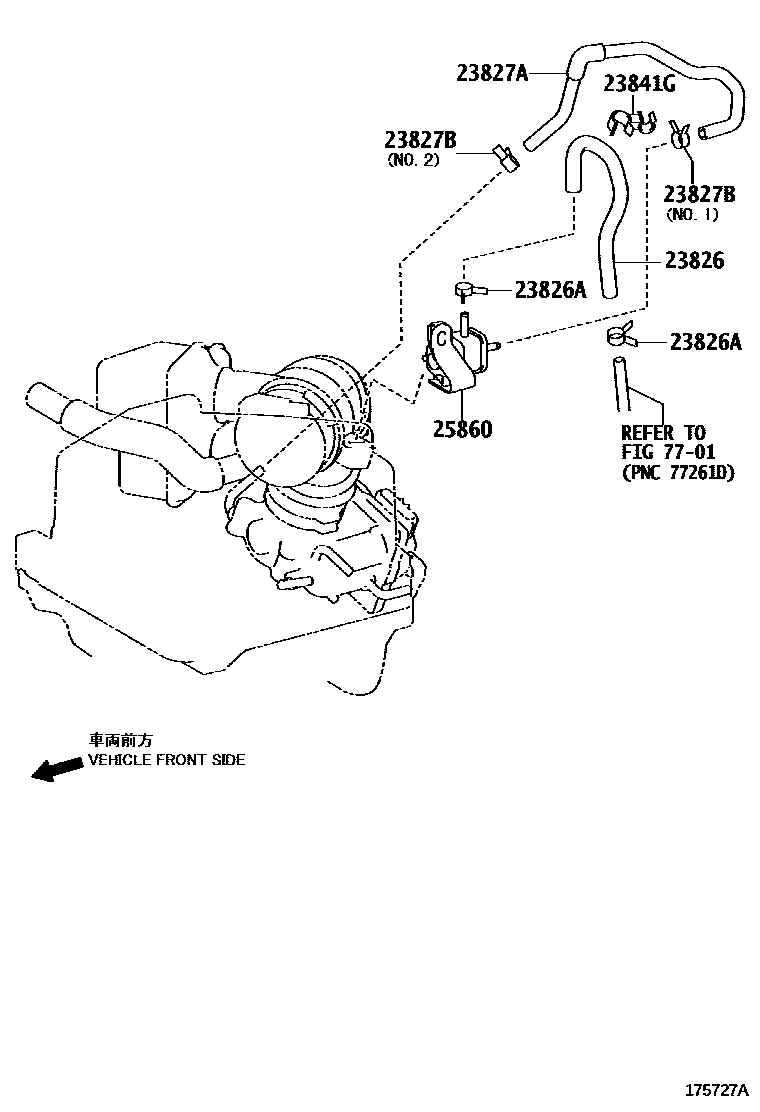

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28380i2AZFE..ANA1#..240F200709-201102

main23826-31080i2GRFE..GGA10200709-201102

main23826-31120i2GRFE..GGA10200709-201102

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2GRFE..GGA10200709-201102

main96132-51300i2AZFE..ANA1#..240,240G,ARIAL200709-201102

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28320i2AZFE..ANA1#..240F200709-201102

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51000i2AZFE..ANA1#..240,240G,ARIAL200709-201102

main96132-51100i2AZFE..ANA1#..240,240G,ARIAL200709-201102

23841GCLAMP, FUEL HOSE

main23841-28050i2AZFE..ANA1#..240F200709-201102

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28170i2AZFE..ANA1#..240,240G,ARIAL200709-201102

main25860-31070i2GRFE..GGA10200709-201102

7701

7 parts on this diagram · 2 diagrams in section
