EXHAUST PIPE

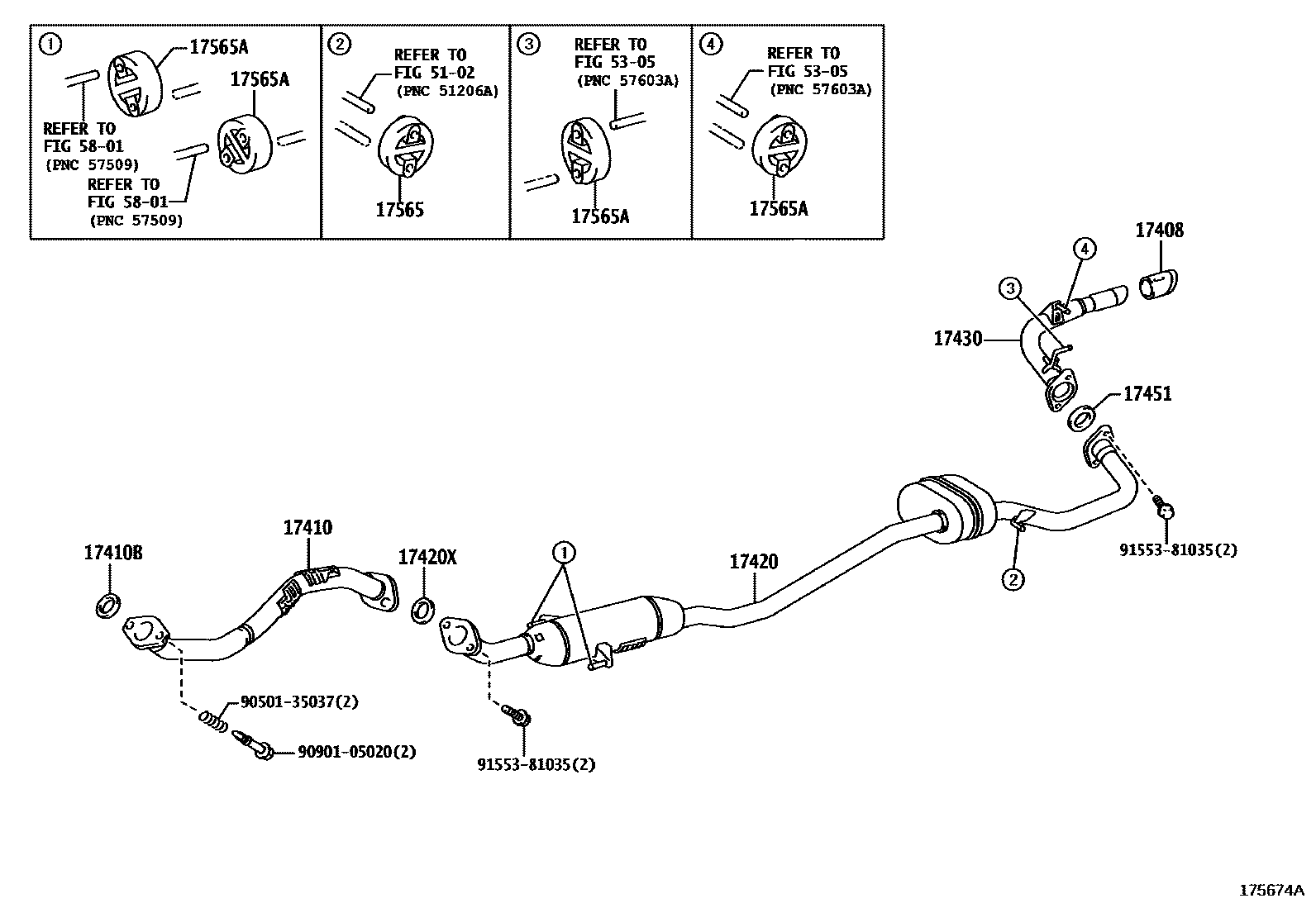

Parts diagram

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-31060i¥3,990200709-201102

main17408-46020i¥4,430200709-201102

17410PIPE ASSY, EXHAUST, FRONT

main17410-28610i¥19,400200709-200909

main17410-28620i¥19,400200709-201102

main17410-28660i¥19,400200910-201102

main17410-31690i¥21,600200709-201102

17410BGASKET, EXHAUST PIPE

main17451-28070i¥1,510200709-201102

sub17451-28040¥1,510

main90917-06089i¥500200709-201102

17420PIPE ASSY, EXHAUST, CENTER

main17420-28840i¥119,000200709-201008

main17420-28850i¥114,000200709-201001

sub17420-28852¥114,000

main17420-28851i¥114,000201002-201008

sub17420-28852¥114,000

main17420-28A60i¥119,000201008-201102

main17420-28A70i¥114,000201008-201301

sub17420-28A71¥114,000

main17420-28A71i¥114,000201302

17420XGASKET, EXHAUST PIPE, CENTER

main17451-28040i¥1,510200709-201102

sub17451-28041¥1,510

main90917-06078i¥340200709-201102

17430PIPE ASSY, EXHAUST, TAIL

main17430-28850i¥19,400200709-201102

main17430-28860i¥37,800200709-200909

sub17430-28861¥37,800

main17430-28861i¥37,800200910-201301

sub17430-28863¥37,800

main17430-28863i¥37,800201302

main17430-31590i¥37,800200709-200909

sub17430-31591¥37,800

main17430-31591i¥37,800200910-201301

sub17430-31593¥37,800

main17430-31593i¥37,800201302

17451GASKET, EXHAUST PIPE

main17451-28030i¥2,170200709-200712

sub17451-28031¥2,170

main17451-28031i¥2,170200801-201103

sub17451-28032¥1,360

main17451-28032i¥1,360201103

main90917-06078i¥340200709

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i¥570200709-201102

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i¥670200709-201102

5102

5305

5801

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9155381035

main91553-81035¥120

15 parts on this diagram · 4 diagrams in section
