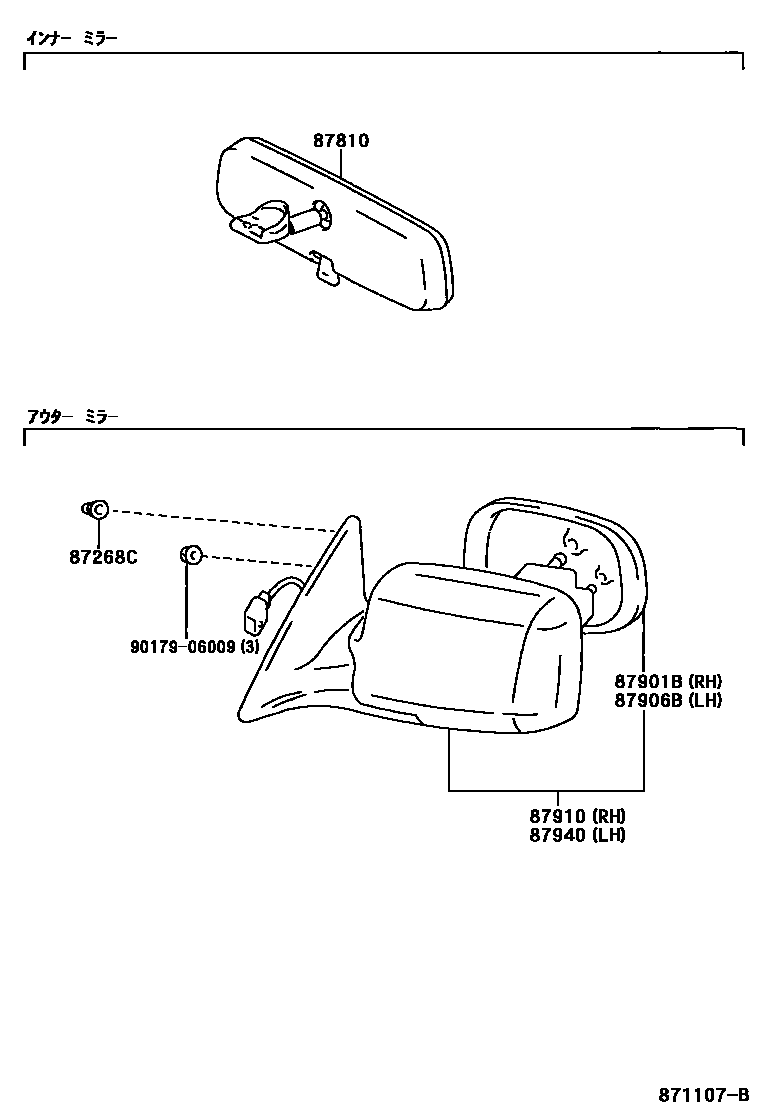

MIRROR

87268CPROTECTOR, OUTER MIRROR

main87268-33010iMCV2#,SXV2#199704

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030iMCV2#,SXV2#199704

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-33160iMCV2#,SXV2#199704-199808

main87931-33180iMCV2#,SXV2#199704-199808

main87931-33260iMCV21,25,SXV2#199704-199808

main87931-33350iMCV2#,SXV2#199808-200112

main87931-33360iMCV21,25,SXV2#199808-200112

main87931-33360iMCV20199808-199908

main87931-33370iMCV2#,SXV2#199808-199908

main87931-33380iMCV2#,SXV2#199808-199908

main87931-33440iMCV2#,SXV2#199908-200112

main87931-33450iMCV21,25,SXV2#199908-200112

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-33160iMCV2#,SXV2#199704-199808

main87961-33180iMCV2#,SXV2#199704-199808

main87961-33320iMCV2#,SXV2#199808-200112

main87961-33330iMCV2#,SXV2#199808-199908

main87961-33400iMCV2#,SXV2#199908-200112

main87961-33410iMCV21,25,SXV2#199908-200112

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-33180-A0iMCV2#,SXV2#199704-199808

SU.WHITE PM,051 ,28Y

sub87910-33270

sub87910-33350

main87910-33180-B1iMCV2#,SXV2#199704-199808

SILVER ME,199

sub87910-33270

sub87910-33350

main87910-33180-C0iMCV21,25,SXV2#199710-199807

sub87910-33270

sub87910-33350

main87910-33180-C0iMCV21,25,SXV2#199805-199807

sub87910-33270

sub87910-33350

main87910-33180-D1iMCV2#,SXV2#199704-199808

MAGENTA MC.,3L3

sub87910-33270

sub87910-33350

main87910-33180-G0iMCV2#,SXV2#199704-199808

DK.GREEN M.M.,2CK

sub87910-33270

sub87910-33350

main87910-33180-J0iMCV2#,SXV2#199704-199808

DK.BLUE M.M.,8L3

sub87910-33270

sub87910-33350

main87910-33260-A0iMCV21,25,SXV2#199704-199808

sub87910-33380

main87910-33260-B0iMCV21,25,SXV2#199704-199808

sub87910-33380

main87910-33260-C0iMCV21,25,SXV2#199805-199807

sub87910-33380

main87910-33260-C0iMCV21,25,SXV2#199710-199807

sub87910-33380

main87910-33260-D1iMCV21,25,SXV2#199704-199808

sub87910-33380

main87910-33260-G0iMCV21,25,SXV2#199704-199808

sub87910-33380

main87910-33260-J0iMCV21,25,SXV2#199704-199808

sub87910-33380

main87910-33270-A0iMCV2#,SXV2#199704-199808

sub87910-33370

main87910-33270-B0iMCV2#,SXV2#199704-199808

sub87910-33370

main87910-33270-D1iMCV2#,SXV2#199704-199808

sub87910-33370

main87910-33270-G0iMCV2#,SXV2#199704-199808

sub87910-33370

main87910-33270-J0iMCV2#,SXV2#199704-199808

sub87910-33370

main87910-33350-A0iMCV2#,SXV2#199908-200112

SU.WHITE PM,051 ,2GF

sub87910-33370

main87910-33350-A0iMCV2#,SXV2#199808-199908

SU.WHITE PM,051 ,28Y

sub87910-33370

main87910-33350-A1iSXV2#199810-199907

sub87910-33370

main87910-33350-A1iSXV2#199810-199907

sub87910-33370

main87910-33350-A1iMCV2#,SXV2#199908-200112

SUPER WHITE 2,040

sub87910-33370

main87910-33350-B1iSXV2#199810-199907

sub87910-33370

main87910-33350-B1iMCV21,25,SXV2#199810-199907

sub87910-33370

main87910-33350-B1iMCV2#,SXV2#199808-199908

SILVER ME,199

sub87910-33370

main87910-33350-B2iMCV2#,SXV2#199908-200112

DK.GRAY M.M.,1C6

sub87910-33370

main87910-33350-B3iMCV2#,SXV2#199908-200112

SLVER ME.,1C8

sub87910-33370

main87910-33350-C0iMCV21,25,SXV2#199810-199907

sub87910-33370

main87910-33350-C0iMCV21,25,SXV2#199810-199907

sub87910-33370

main87910-33350-D2iMCV2#,SXV2#199808-199908

DK.RED MC.,3N6

sub87910-33370

main87910-33350-G1iMCV2#,SXV2#199808-200112

DK.GREEN MC.P.I.O.,6N9

sub87910-33370

main87910-33350-J0iMCV2#,SXV2#199808-199908

DK.BLUE M.M.,8L3

sub87910-33370

main87910-33360-A0iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33360-A0iMCV21,25,SXV2#199908-200112

sub87910-33440

sub87910-33380

main87910-33360-A1iSXV2#199810-199907

sub87910-33440

sub87910-33380

main87910-33360-A1iMCV21,25,SXV2#199810-199907

sub87910-33440

sub87910-33380

main87910-33360-A1iMCV21,25,SXV2#199908-200112

sub87910-33440

sub87910-33380

main87910-33360-B1iMCV21,25,SXV2#199810-199907

sub87910-33440

sub87910-33380

main87910-33360-B1iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33360-B1iSXV2#199810-199907

sub87910-33440

sub87910-33380

main87910-33360-B2iMCV21,25,SXV2#199908-200112

sub87910-33440

sub87910-33380

main87910-33360-B3iMCV21,25,SXV2#199908-200112

sub87910-33440

sub87910-33380

main87910-33360-C0iMCV21,25,SXV2#199810-199907

sub87910-33440

sub87910-33380

main87910-33360-C0iMCV21,25,SXV2#199810-199907

sub87910-33440

sub87910-33380

main87910-33360-D1iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33360-G1iMCV2#,SXV2#199808-200112

sub87910-33440

sub87910-33380

main87910-33360-J0iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33370-A0iMCV2#,SXV2#199808-199908

sub87910-33370

main87910-33370-B0iMCV2#,SXV2#199808-199908

sub87910-33370

main87910-33370-D2iMCV2#,SXV2#199808-199908

sub87910-33370

main87910-33370-G1iMCV2#,SXV2#199808-199908

sub87910-33370

main87910-33370-J0iMCV2#,SXV2#199808-199908

sub87910-33370

main87910-33380-A0iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33380-B1iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33380-D2iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33380-G1iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33380-J0iMCV2#,SXV2#199808-199908

sub87910-33440

sub87910-33380

main87910-33440-A0iMCV2#,SXV2#199908-200112

main87910-33440-A1iMCV2#,SXV2#199908-200112

main87910-33440-B1iMCV2#,SXV2#199908-200112

main87910-33440-B2iMCV2#,SXV2#199908-200112

main87910-33440-G0iMCV2#,SXV2#199908-200112

main87910-33450-A0iMCV21,25,SXV2#199908-200112

main87910-33450-A1iMCV21,25,SXV2#199908-200112

main87910-33450-B0iMCV21,25,SXV2#199908-200112

main87910-33450-B1iMCV21,25,SXV2#199908-200112

main87910-33450-G0iMCV21,25,SXV2#199908-200112

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-33180-A0iMCV2#,SXV2#199704-199808

SU.WHITE PM,051 ,28Y

sub87940-33320

sub87940-33250

sub87940-33180

main87940-33180-B1iMCV2#,SXV2#199704-199808

SILVER ME,199

sub87940-33320

sub87940-33250

sub87940-33180

main87940-33180-C0iMCV21,25,SXV2#199805-199807

sub87940-33320

sub87940-33250

sub87940-33180

main87940-33180-C0iMCV21,25,SXV2#199710-199807

sub87940-33320

sub87940-33250

sub87940-33180

main87940-33180-D1iMCV2#,SXV2#199704-199808

MAGENTA MC.,3L3

sub87940-33320

sub87940-33250

sub87940-33180

main87940-33180-G0iMCV2#,SXV2#199704-199808

DK.GREEN M.M.,2CK

sub87940-33320

sub87940-33250

sub87940-33180

main87940-33180-J0iMCV2#,SXV2#199704-199808

DK.BLUE M.M.,8L3

sub87940-33320

sub87940-33250

sub87940-33180

main87940-33250-A0iMCV2#,SXV2#199704-199808

sub87940-33330

main87940-33250-B0iMCV2#,SXV2#199704-199808

sub87940-33330

main87940-33250-C0iMCV21,25,SXV2#199805-199807

sub87940-33330

main87940-33250-C0iMCV21,25,SXV2#199710-199807

sub87940-33330

main87940-33250-D1iMCV2#,SXV2#199704-199808

sub87940-33330

main87940-33250-G0iMCV2#,SXV2#199704-199808

sub87940-33330

main87940-33250-J0iMCV2#,SXV2#199704-199808

sub87940-33330

main87940-33320-A0iMCV2#,SXV2#199908-200112

SU.WHITE PM,051 ,2GF

sub87940-33400

sub87940-33330

main87940-33320-A0iMCV2#,SXV2#199808-199908

SU.WHITE PM,051 ,28Y

sub87940-33400

sub87940-33330

main87940-33320-A1iSXV2#199810-199907

sub87940-33400

sub87940-33330

main87940-33320-A1iMCV21,25,SXV2#199810-199907

sub87940-33400

sub87940-33330

main87940-33320-A1iMCV2#,SXV2#199908-200112

SUPER WHITE 2,040

sub87940-33400

sub87940-33330

main87940-33320-B1iSXV2#199810-199907

sub87940-33400

sub87940-33330

main87940-33320-B1iMCV21,25,SXV2#199810-199907

sub87940-33400

sub87940-33330

main87940-33320-B1iMCV2#,SXV2#199808-199908

SILVER ME,199

sub87940-33400

sub87940-33330

main87940-33320-B2iMCV2#,SXV2#199908-200112

DK.GRAY M.M.,1C6

sub87940-33400

sub87940-33330

main87940-33320-B3iMCV2#,SXV2#199908-200112

SLVER ME.,1C8

sub87940-33400

sub87940-33330

main87940-33320-C0iSXV2#199810-199907

sub87940-33400

sub87940-33330

main87940-33320-C0iSXV2#199810-199907

sub87940-33400

sub87940-33330

main87940-33320-D2iMCV2#,SXV2#199808-199908

DK.RED MC.,3N6

sub87940-33400

sub87940-33330

main87940-33320-G1iMCV2#,SXV2#199808-200112

DK.GREEN MC.P.I.O.,6N9

sub87940-33400

sub87940-33330

main87940-33320-J0iMCV2#,SXV2#199808-199908

DK.BLUE M.M.,8L3

sub87940-33400

sub87940-33330

main87940-33330-A0iMCV2#,SXV2#199808-199908

sub87940-33400

sub87940-33330

main87940-33330-B1iMCV2#,SXV2#199808-199908

sub87940-33400

sub87940-33330

main87940-33330-D2iMCV2#,SXV2#199808-199908

sub87940-33400

sub87940-33330

main87940-33330-G1iMCV2#,SXV2#199808-199908

sub87940-33400

sub87940-33330

main87940-33330-J0iMCV2#,SXV2#199808-199908

sub87940-33400

sub87940-33330

main87940-33400-A0iMCV2#,SXV2#199908-200112

main87940-33400-A1iMCV2#,SXV2#199908-200112

main87940-33400-B1iMCV2#,SXV2#199908-200112

main87940-33400-B2iMCV2#,SXV2#199908-200112

main87940-33400-G0iMCV2#,SXV2#199908-200112

main87940-33410-A0iMCV21,25,SXV2#199908-200112

main87940-33410-A1iMCV21,25,SXV2#199908-200112

main87940-33410-B0iMCV21,25,SXV2#199908-200112

main87940-33410-B1iMCV21,25,SXV2#199908-200112

main87940-33410-G0iMCV21,25,SXV2#199908-200112

9017906009

main90179-06009

7 parts on this diagram · 1 diagram in section
