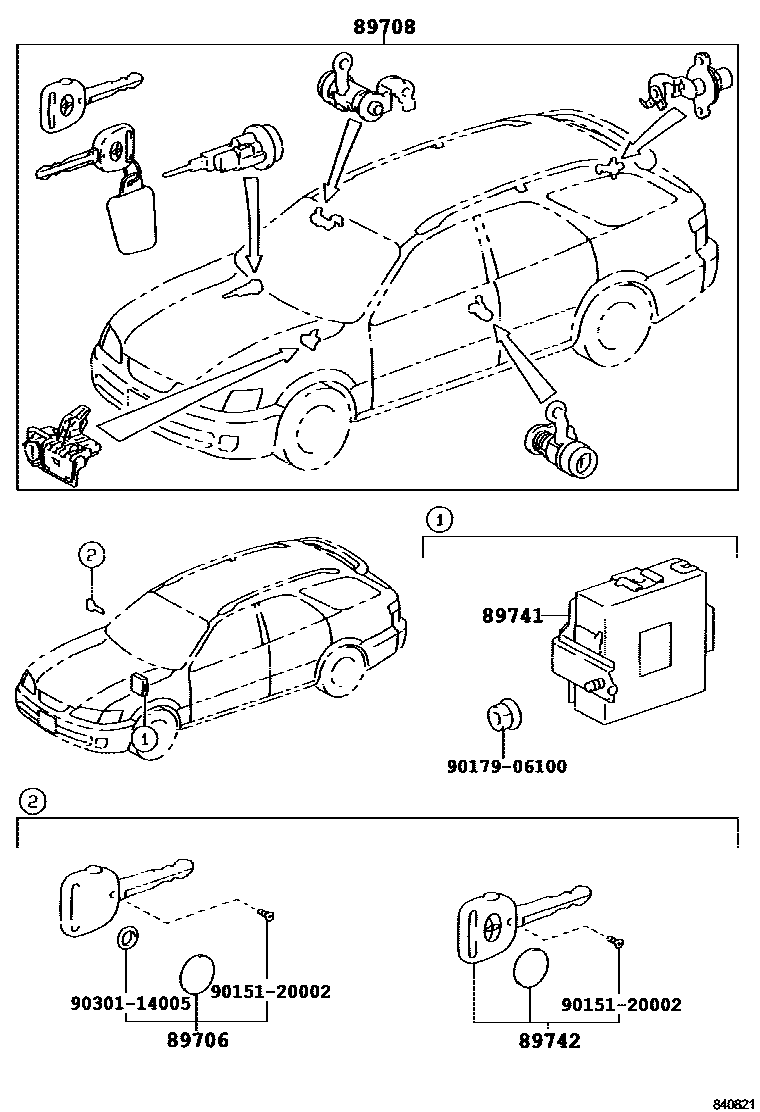

WIRELESS DOOR LOCK

0001 1 0002 1

89706BATTERY SET, TRANSMITTER

main89706-50010iMCV2#,SXV2#199704-199808

sub89745-48020

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-33180iMCV2#,SXV2#199704-199808

89741RECEIVER, DOOR CONTROL

main89741-33171iMCV2#,SXV2#199808-199908

main89741-33210iMCV2#,SXV2#199704-199808

main89741-33350iMCV2#,SXV2#199908

89742TRANSMITTER, DOOR CONTROL

main89742-26050iMCV2#,SXV2#199704-199808

9015120002

main90151-20002

9017906100

main90179-06100

9030114005

main90301-14005

7 parts on this diagram · 2 diagrams in section
