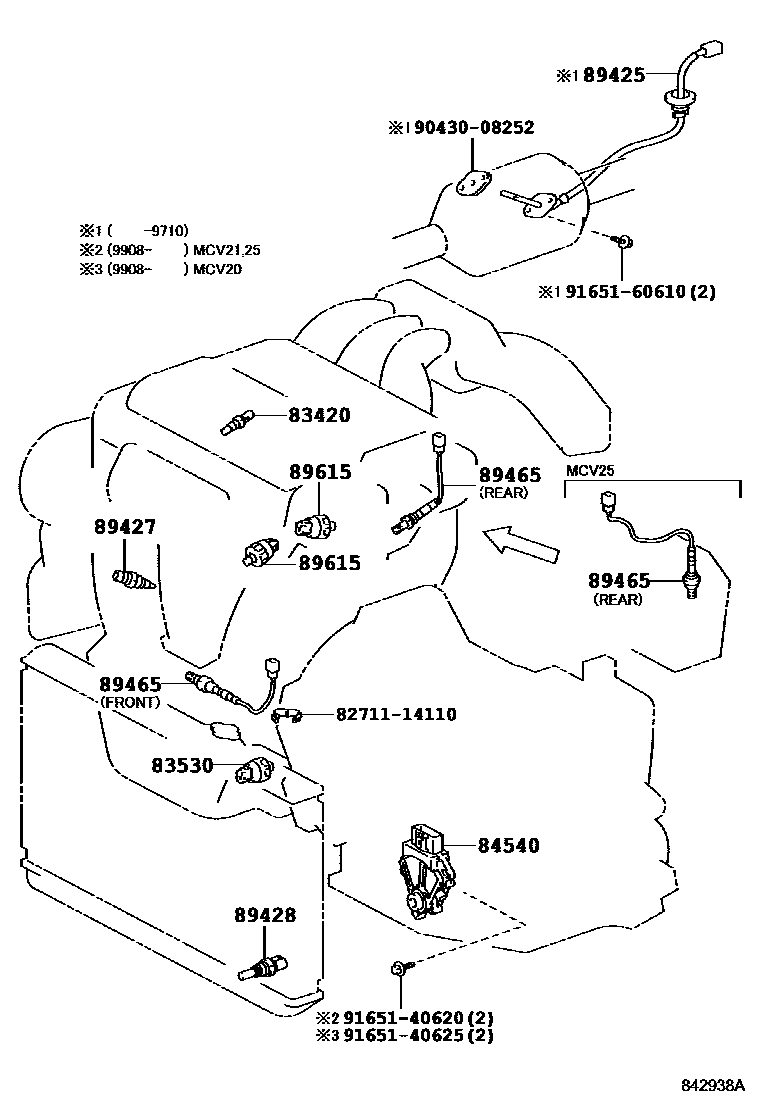

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1��� 0005 1������������ 0006 1�����-��� SW 0007 1���, ���, ����-��

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCV2#199704-200008

main83420-AA010iSXV2#199704-200008

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCV2#,SXV2#199802

main83530-30090iMCV2#,SXV2#199704-199802

sub83530-60020

main83530-60020iMCV2#,SXV2#199802

main83530-AA011iMCV2#,SXV2#200008

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-12200iMCV20199908

main84540-12210iMCV20199908

main84540-20200iMCV2#,SXV25199704-199908

main84540-20220iSXV20199704

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-39585iMCV20,21,SXV20199704-199710

main89425-39595iSXV25199706-199710

main89425-39605iMCV25199706-199710

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCV2#199704

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33010iSXV2#199704

main89428-33020iMCV2#199704

89465SENSOR, OXYGEN

main89465-30340iMCV25199706-199708

main89465-33160iMCV2#199704-199908

main89465-33170iMCV21199704-199908

main89465-33200iMCV25199708

main89465-41050iMCV20199908

main89465-41060iMCV20199908

main89465-80005iSXV2#199704

89615SENSOR, KNOCK CONTROL

main89615-12040iMCV2#199704-199908

main89615-12090iMCV2#199908

main89615-20030iSXV2#199704-199910

sub89615-32040

main89615-32030iSXV2#199910

main89615-32040iSXV2#199910

sub89615-32030

main89615-33020iSXV2#199704-199910

sub89615-32030

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9043008252

main90430-08252

9165140620

main91651-40620

9165140625

main91651-40625

9165160610

main91651-60610

13 parts on this diagram · 7 diagrams in section
