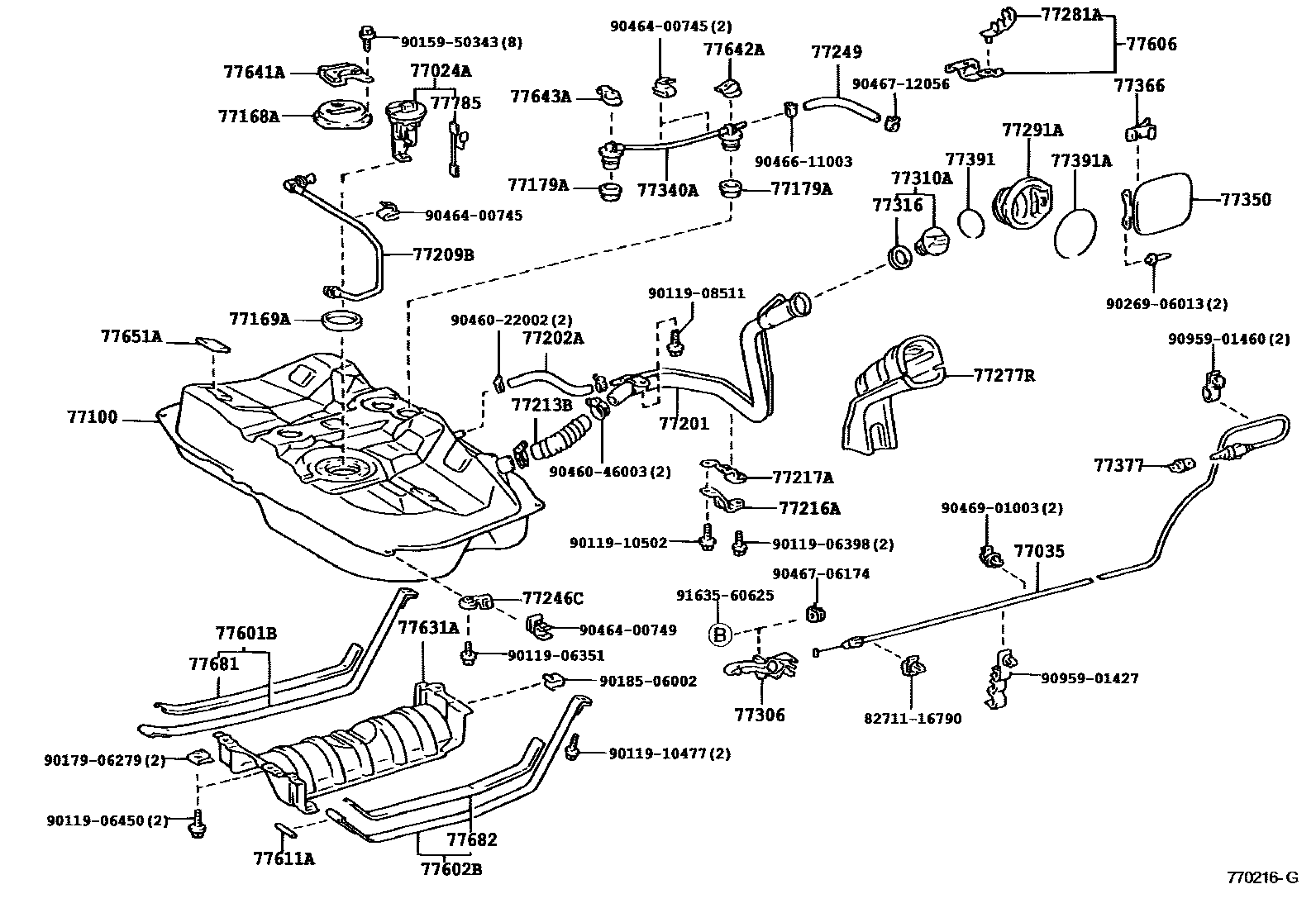

FUEL TANK & TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209BTUBE SUB-ASSY, FUEL PUMP
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77246CSUPPORT, FUEL MAIN TUBE
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77641APROTECTOR, FUEL TANK, NO.1
77643APROTECTOR, FUEL TANK, NO.3
sub77643-33030
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906351
main90119-06351
9011906398
main90119-06398
9011906450
main90119-06450
9011908511
main90119-08511
9011910477
main90119-10477
9011910502
main90119-10502
9015950343
main90159-50343
9017906279
main90179-06279
9018506002
main90185-06002
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9046400745
main90464-00745
9046400749
main90464-00749
9046611003
main90466-11003
9046706174
main90467-06174
9046712056
main90467-12056
9046901003
main90469-01003
9095901427
main90959-01427
9095901460
main90959-01460
9163560625
main91635-60625
60 parts on this diagram · 5 diagrams in section
