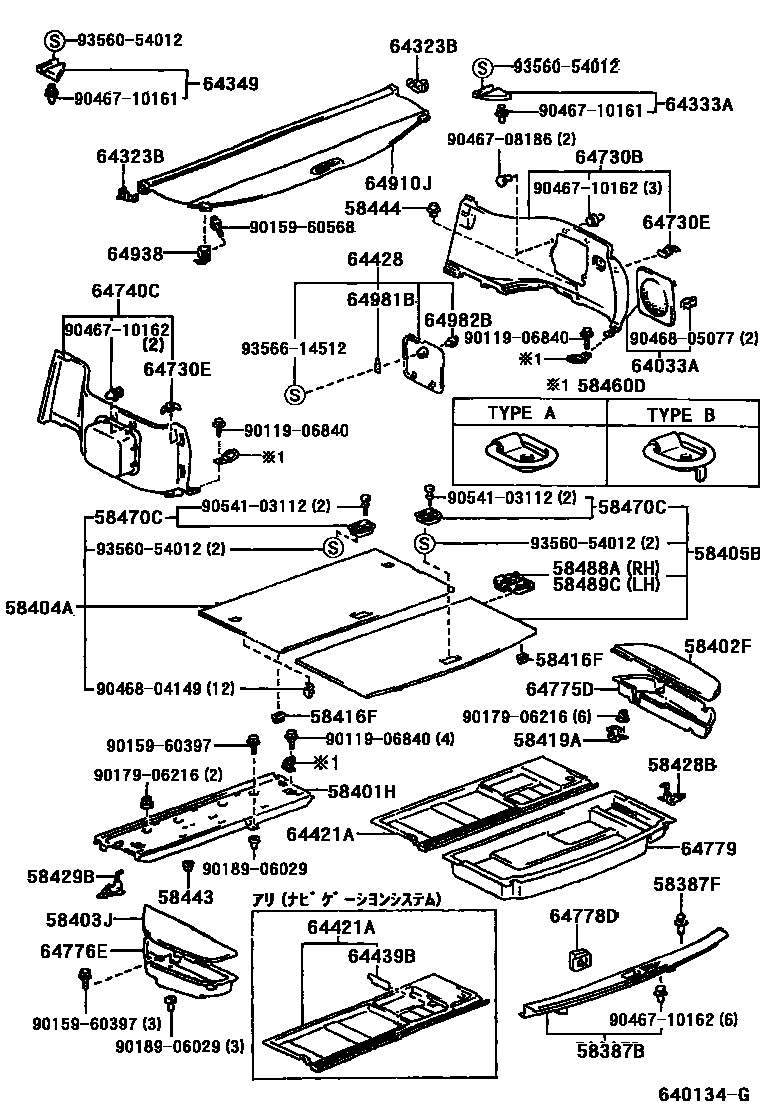

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58387FCLIP, REAR FLOOR FINISH PLATE
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
BLUE GRAY,TRIM1#
BLACK,TRIM2#
SAGE,TRIM6#
58403JBOARD SUB-ASSY, REAR FLOOR, NO.3
BLUE GRAY,TRIM1#
BLACK,TRIM2#
SAGE,TRIM6#
58404ABOARD SUB-ASSY, REAR FLOOR, NO.4
58405BBOARD SUB-ASSY, REAR FLOOR, NO.5
58416FBRACKET, DECK BOARD, NO.1
58419ABRACKET, DECK BOARD, NO.3
58428BBRACKET, DECK BOARD, NO.5 RH
58429BBRACKET, DECK BOARD, NO.5 LH
58443CUSHION, DECK BOARD, NO.1
58444CUSHION, DECK BOARD, NO.2
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
58488ASPRING, DECK BOARD, RH
58489CSPRING, DECK BOARD, LH
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
BLUE GRAY,TRIM1#
SAGE,TRIM6#
64323BCLAMP, TONNEAU COVER
64333ACOVER, TONNEAU SIDE, RH
BLUISH GRAY,TRIM1#
BLACK,TRIM2#
DK.SAGE,TRIM6#
64349COVER, TONNEAU SIDE, LH
BLUISH GRAY,TRIM1#
BLACK,TRIM2#
DK.SAGE,TRIM6#
64421ATRAY, LUGGAGE COMPARTMENT
64428LID, DECK SIDE TRIM
64439BCOVER, LUGGAGE ROOM BOX SIDE, RH
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLUE GRAY,TRIM1#
BLACK,TRIM2#
SAGE,TRIM6#
sub64730-33021
sub64730-33021
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLUE GRAY,TRIM1#
BLACK,TRIM2#
SAGE,TRIM6#
64775DGUARD, SPARE WHEEL
64776EGUARD, SPARE WHEEL, NO.2
64778DPROTECTOR, SPARE WHEEL
64910JCOVER ASSY, TONNEAU
BLUISH GRAY,TRIM1#
BLACK,TRIM2#
DK.SAGE,TRIM6#
64938HOOK, TONNEAU COVER, A
64981BSTOPPER, DECK SIDE TRIM LID
64982BKNOB, DECK SIDE TRIM LID
9011906840
main90119-06840
9015960397
main90159-60397
9015960568
main90159-60568
9017906216
main90179-06216
9018906029
main90189-06029
9046708186
main90467-08186
9046710161
main90467-10161
9046710162
main90467-10162
9046804149
main90468-04149
9046805077
main90468-05077
9054103112
main90541-03112
9356054012
main93560-54012
9356614512
main93566-14512
48 parts on this diagram · 1 diagram in section
