SIDE MEMBER
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213RAIL, ROOF SIDE, OUTER REAR RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214RAIL, ROOF SIDE, OUTER REAR LH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61235ARAIL, ROOF SIDE, INNER NO.3 RH
61236ARAIL, ROOF SIDE, INNER NO.3 LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61601BPANEL SUB-ASSY, QUARTER, RH
61602CPANEL SUB-ASSY, QUARTER, LH
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61623EEXTENSION, QUARTER INNER PANEL, REAR RH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61716AEXTENSION, ROOF SIDE, INNER UPPER LH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61724AREINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61751ARETAINER, QUARTER TRIM, RH
61752ARETAINER, QUARTER TRIM, LH
61753ARETAINER, QUARTER TRIM, LOWER
61754BRETAINER, QUARTER TRIM, LOWER LH
61755ARETAINER, DECK SIDE TRIM, UPPER RH
61756ARETAINER, DECK SIDE TRIM, UPPER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61797BSTAY, REAR WHEEL OPENING, REAR RH
61798BSTAY, REAR WHEEL OPENING, REAR LH
61815BCOVER, ROOF SIDE, INNER UPPER RH
61815CCOVER, ROOF SIDE, INNER UPPER
61815FCOVER, ROOF SIDE, INNER NO.2 RH
61816BCOVER, ROOF SIDE, INNER UPPER LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
62551HPAD, PILLAR, NO.1 RH
62552LPAD, PILLAR, NO.1 LH
72629ASILENCER, REAR SEATBACK LOCK
9017906216
main90179-06216
9017908086
main90179-08086
9033325001
main90333-25001
9033330008
main90333-30008
9033340001
main90333-40001
9033348001
main90333-48001
9095001539
main90950-01539
9095001557
main90950-01557
9095001841
main90950-01841
9095001871
main90950-01871
9095001872
main90950-01872
9095001919
main90950-01919
9095006109
main90950-06109
9151360612
main91513-60612
9165160816
main91651-60816

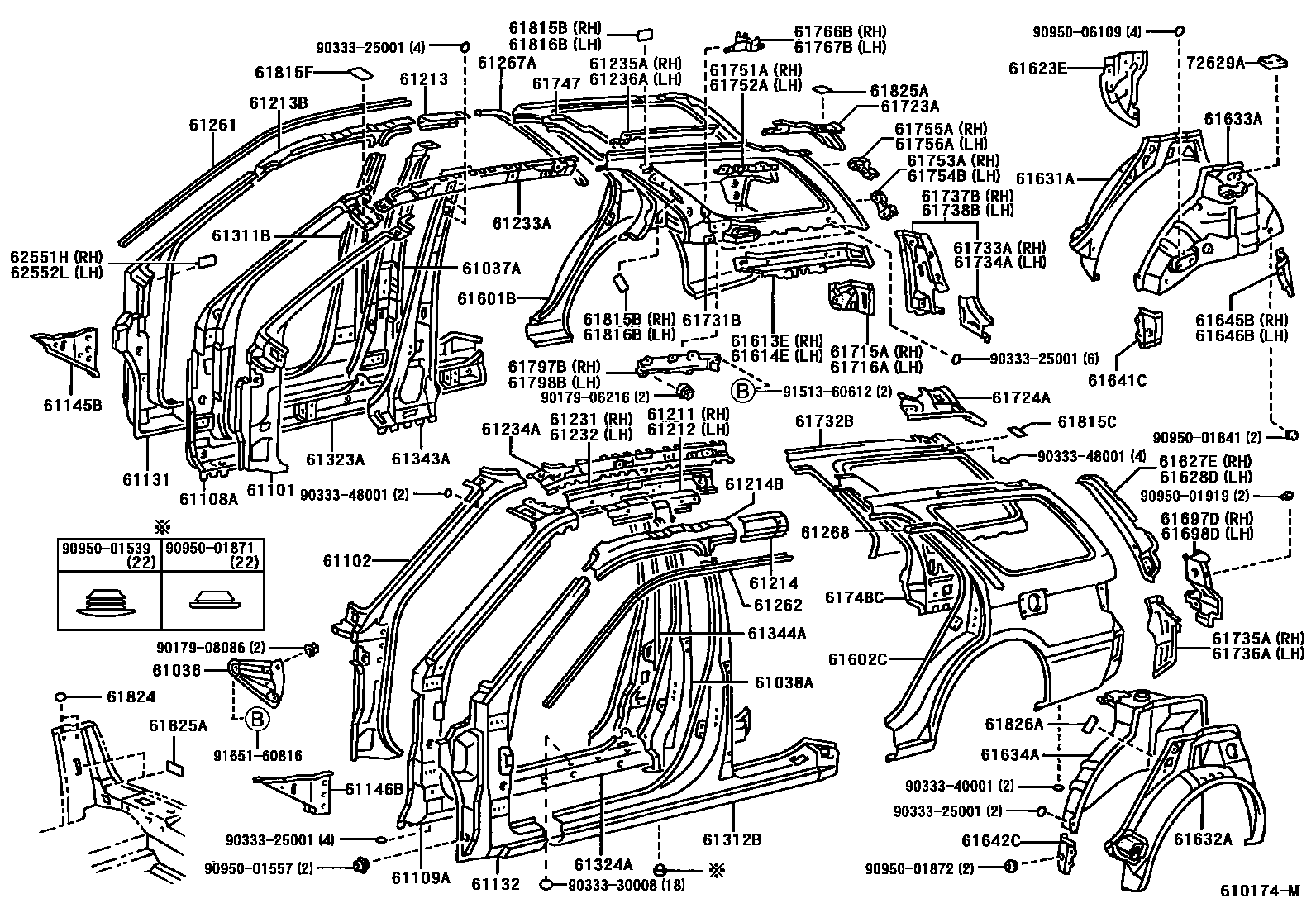

99 parts on this diagram · 1 diagram in section
