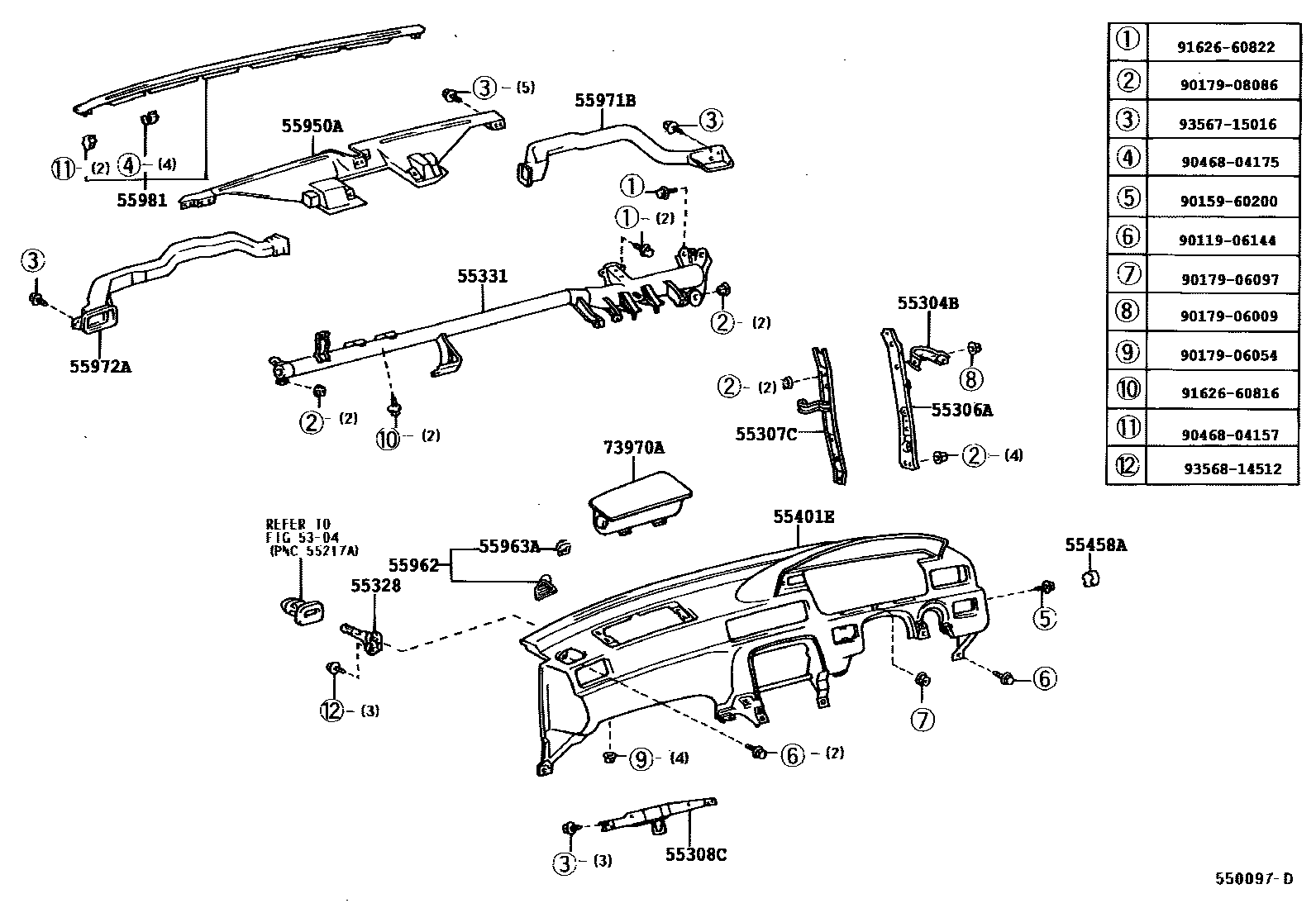

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55304BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING

main55381-33060iMCV2#,SXV2#199704

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55351-33060iMCV2#,SXV2#199704

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33080iMCV2#,SXV2#199704

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-33060iMCV2#,SXV2#199704

55328PIN, INSTRUMENT PANEL, NO.1

main55328-24010×3iMCV2#,SXV2#199704

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33140iMCV2#,SXV2#199704

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33120-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main55401-33120-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main55401-33120-G0iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-32020-B1iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main55458-32020-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main55458-32020-G0iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

55950ANOZZLE ASSY, DEFROSTER

main55950-33070iMCV2#,SXV2#199704-199806

main55950-33071iMCV2#,SXV2#199806

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-33050-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main55962-33050-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main55962-33050-G0iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

55963ARETAINER, SIDE DEFROSTER

main55963-33020iMCV2#,SXV2#199704

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-33040iMCV2#,SXV2#199704

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-33040iMCV2#,SXV2#199704

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33060iMCV2#,SXV2#199704

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0W080-B0iMCV2#,SXV2#199704-199710

BLUISH GRAY,TRIM1#

main73970-0W080-G0iMCV2#,SXV2#199704-199710

DK.SAGE,TRIM6#

main73970-0W100-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73970-0W100-G0iMCV2#,SXV2#199908

DK.SAGE,TRIM6#

main73970-0W140-B0iMCV2#,SXV2#199710-199808

BLUISH GRAY,TRIM1#

main73970-0W140-G0iMCV2#,SXV2#199710-199808

DK.SAGE,TRIM6#

main73970-0W141-B0iMCV2#,SXV2#199808-199908

BLUISH GRAY,TRIM1#

main73970-0W141-G0iMCV2#,SXV2#199808-199908

DK.SAGE,TRIM6#

9011906144

main90119-06144

9015960200

main90159-60200

9017906009

main90179-06009

9017906054

main90179-06054

9017906097

main90179-06097

9017908086

main90179-08086

9046804157

main90468-04157

9046804175

main90468-04175

9162660816

main91626-60816

9162660822

main91626-60822

9356715016

main93567-15016

9356814512

main93568-14512

27 parts on this diagram · 2 diagrams in section
