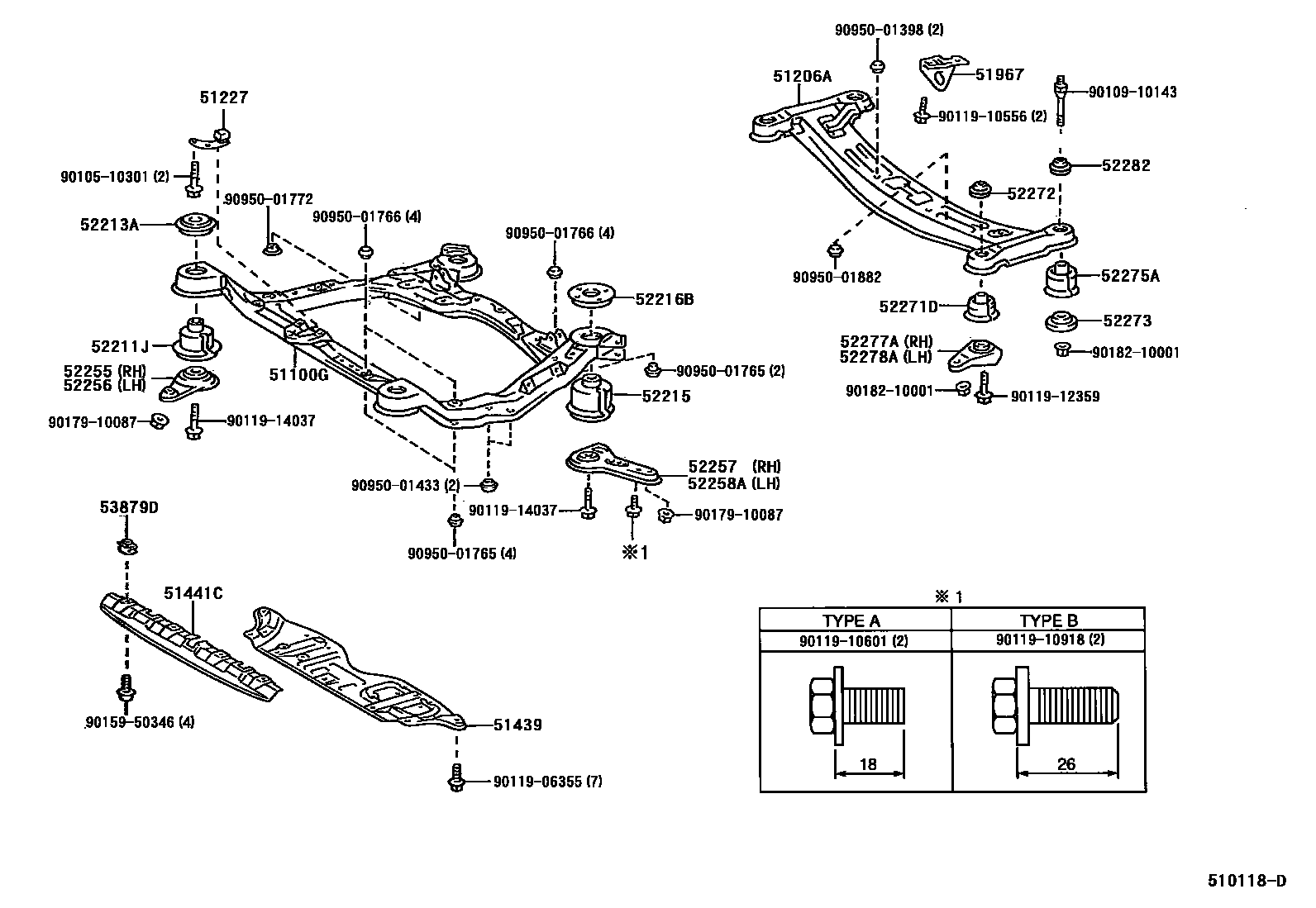

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51100GFRAME ASSY, FRONT

main51100-33020iMCV25,SXV25199706-199906

main51100-33030iMCV20,21,SXV20199704-199906

main51100-33040iMCV25,SXV25199906-200105

main51100-33050iMCV20,21,SXV20199906

main51100-48010iMCV25,SXV25200105

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33020iMCV20,21,SXV20199704-199710

main51206-33021iMCV20,21,SXV20199710-199808

main51206-33022iMCV20,21,SXV20199808-199901

main51206-33030iMCV25,SXV25199706-199908

main51206-33040iMCV20,21,SXV20199901

main51206-33050iMCV25,SXV25199908

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-33030iMCV25,SXV20199808

main51227-33060iMCV20,21199808-199908

51439PLATE, ENGINE REAR SIDE SHUTTER

main51439-33010iMCV20,21,SXV20199704

main51439-33030iMCV25,SXV25199706

51441CCOVER, ENGINE UNDER, RH

main51441-33030iMCV2#,SXV2#199704

51967HOOK, TRANSPORT, REAR

main51968-33010iMCV2#,SXV2#199704

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33010×2iMCV21,SXV20199908-200112

main52211-33050×2iMCV25,SXV25199706-200112

main52211-33060×2iMCV20199908-200112

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33010×2iMCV20,21,SXV20199704-199908

main52213-33050×2iMCV25,SXV25199706-200112

main52213-33060×2iMCV20199908-200112

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33010×2iMCV20,21,SXV20199704-199908

main52215-33050×2iMCV25,SXV25199706-200112

main52215-33060×2iMCV20,21,SXV20199908-200112

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33020×2iMCV20,21,SXV20199704-200112

main52216-33050×2iMCV25,SXV25199706-200112

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33020iMCV20,21,SXV20199704-199908

main52255-33030iMCV25,SXV25199706-200112

main52255-33040iMCV20,21,SXV20199908-200006

PLANT NO. Q11

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33020iMCV20,21,SXV20200006-200112

main52256-33030iMCV25,SXV25199706-200112

main52256-33040iMCV20,21,SXV20199908-200006

PLANT NO. Q11

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV20,21,SXV20200006-200112

main51023-33020iMCV25,SXV25199706-200112

main51023-33030iMCV20,21,SXV20199908-200006

PLANT NO. Q11

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV20,21,SXV20200006-200112

main51024-33020iMCV25,SXV25199706-200112

main51024-33030iMCV20,21,SXV20199908-200006

PLANT NO. Q11

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32050×2iMCV20,21,SXV20199704

main52271-33020×2iMCV25,SXV25199706

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010×2iMCV25,SXV25199706

main52272-33010×2iMCV20,21,SXV20199704

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-32010×2iMCV20,21,SXV20199704-200107

main52273-33010×2iMCV20,21,SXV20200107-200112

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33030×2iMCV20,21,SXV20199704

main52275-33040×2iMCV25,SXV25199706

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV20,21,SXV20199704-200107

main52203-33020iMCV20,21,SXV20200107-200112

main52277-32010iMCV25,SXV25199706

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV20,21,SXV20199704-200107

main52204-33020iMCV20,21,SXV20200107-200112

main52277-32010iMCV25,SXV25199706

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33030×2iMCV20,21,SXV20199704

53879DRETAINER, FRONT FENDER LINER

main53879-20020×4iMCV2#,SXV2#199704

9010510301

main90105-10301

9010910143

main90109-10143

9011906355

main90119-06355

9011910556

main90119-10556

9011910601

main90119-10601

9011910918

main90119-10918

9011912359

main90119-12359

9011914037

main90119-14037

9015950346

main90159-50346

9017910087

main90179-10087

9018210001

main90182-10001

9095001398

main90950-01398

9095001433

main90950-01433

9095001765

main90950-01765

9095001766

main90950-01766

9095001772

main90950-01772

9095001882

main90950-01882

39 parts on this diagram · 2 diagrams in section
