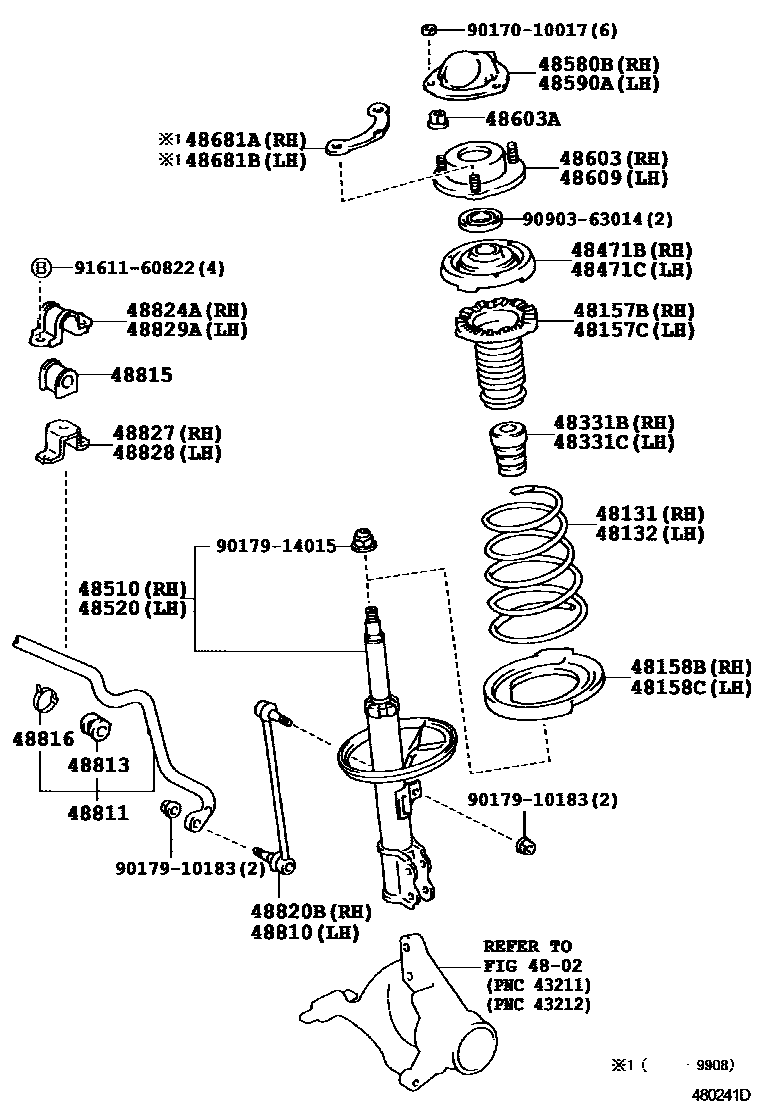

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-33890iSXV20199704-199908

main48131-3T010iMCV20,21199704-199908

sub48131-3T040

main48131-3T030iSXV25199706-199808

main48131-3T040iMCV25199706-199908

main48131-3T070iSXV25199808-199908

main48131-3T170iSXV20199908

main48131-3T180iMCV20,21199908

main48131-3T190iSXV25199908

main48131-3T200iMCV25199908

48132SPRING, FRONT COIL, LH

main48131-33890iSXV20199704-199908

main48131-3T010iMCV20,21199704-199908

sub48131-3T040

main48131-3T030iSXV25199706-199808

main48131-3T040iMCV25199706-199908

main48131-3T070iSXV25199808-199908

main48131-3T170iSXV20199908

main48131-3T180iMCV20,21199908

main48131-3T190iSXV25199908

main48131-3T200iMCV25199908

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33030iMCV2#,SXV2#199704

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33030iMCV2#,SXV2#199704

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33020iMCV2#,SXV2#199704

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33020iMCV2#,SXV2#199704

48331BBUMPER, FRONT SPRING, RH

main48331-33020iMCV2#,SXV2#199704

sub48331-33021

48331CBUMPER, FRONT SPRING, LH

main48331-33020iMCV2#,SXV2#199704

sub48331-33021

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-41010iMCV2#,SXV2#199704

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-41010iMCV2#,SXV2#199704

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39615iMCV21,SXV20199704

sub48510-80138

main48510-39635iMCV20,21199704

main48510-39645iMCV25,SXV25199706-199808

sub48510-80136

main48510-39745iMCV25,SXV25199808

sub48510-80136

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-39255iMCV21,SXV20199704

sub48520-39615

main48520-39275iMCV20,21199704

main48520-39285iMCV25,SXV25199706-199808

sub48520-39645

main48520-39315iMCV25,SXV25199808

sub48520-39645

48580BCAP ASSY, FRONT SHOCK ABSORBER, RH

main48580-33030iMCV20,21199704-200106

sub48580-33031

main48580-33031iMCV20,21200106

48590ACAP ASSY, FRONT SHOCK ABSORBER, LH

main48590-33020iMCV20,21199704-200106

sub48590-33021

main48590-33021iMCV20,21200106

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48603-06011iMCV2#,SXV2#199908

main48603-33010iMCV2#,SXV2#199704-199908

sub48603-33021

main48603-33021iMCV2#,SXV2#199908

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10008iMCV21,25,SXV2#199908-200106

main90178-10017iMCV20200106

main90178-10018iMCV21,25,SXV2#200106

main90179-10095iMCV21199908-200106

main90179-10095iMCV2#,SXV2#199704-199908

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06061iMCV2#,SXV2#199908

main48609-33110iMCV2#,SXV2#199704-199912

sub48609-33121

main48609-33121iMCV2#,SXV2#199912

48681AGASKET, FRONT SUSPENSION SUPPORT, RH

main48681-33010iMCV21,25,SXV2#199704-199908

48681BGASKET, FRONT SUSPENSION SUPPORT, LH

main48681-33010iMCV21,25,SXV2#199704-199908

48810LINK ASSY, FRONT STABILIZER, LH

main48810-33010iMCV2#,SXV2#199704

48811BAR, STABILIZER, FRONT

main48811-07010iMCV20,21,SXV20199704-200108

main48811-33080iMCV20,21,SXV20200108-200112

main48811-33080iMCV20,21,SXV20199704-200108

main48811-33100iMCV25,SXV25199706-200112

48813STOPPER, FRONT STABILIZER

main48813-33020iMCV20,21,SXV20199704

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-33050iMCV20,21,SXV20199704

main48815-33060iMCV25,SXV25199706

48816CLAMP, FRONT STABILIZER STOPPER

main48816-33010iMCV20,21,SXV20199704

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33020iMCV2#,SXV2#199704

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-33020iMCV20,21,SXV20199704

main48824-33030iMCV25,SXV25199706

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-33010iMCV25,SXV25199706

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-33010iMCV25,SXV25199706

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-33020iMCV20,21,SXV20199704

main48824-33030iMCV25,SXV25199706

9017010017

main90170-10017

9017910183

main90179-10183

9017914015

main90179-14015

9090363014

main90903-63014

9161160822

main91611-60822

35 parts on this diagram · 1 diagram in section
