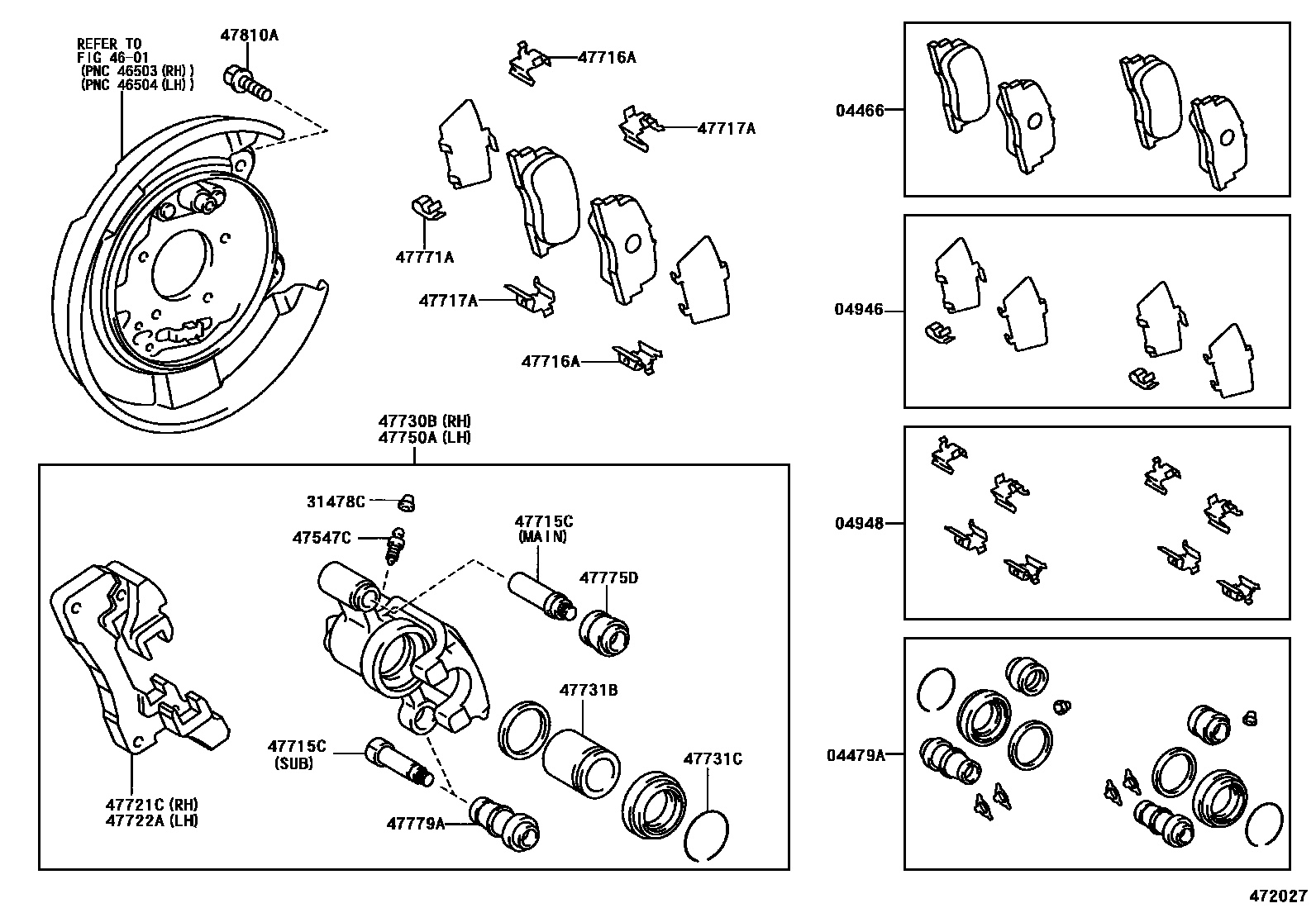

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-32030iMCV20,21,SXV20199908

main04466-33040iMCV20,21,SXV20199704-199908

main04466-33050iMCV25,SXV25199706

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33041iMCV2#,SXV2#199704-199908

main04479-33110iMCV20,21,SXV20199908

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32070iMCV25,SXV25199706

main04946-32080iMCV20,21,SXV20199908

main04946-33010iMCV20,21,SXV20199704-199908

04948FITTING KIT, DISC BRAKE, REAR

main04948-32040iMCV20,21,SXV20199908

main04948-33010iMCV2#,SXV2#199704-199908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCV2#,SXV2#199704

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMCV2#,SXV2#199704

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020iMCV20,21,SXV20199908-200112

main47715-32030iMCV20,21,SXV20199908-200112

main47715-33020iMCV2#,SXV2#199704-200112

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32060iMCV20,21,SXV20199908

main47716-33070iMCV25,SXV25199704-199908

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32060iMCV20,21,SXV20199908

main47717-33050iMCV2#,SXV2#199704-199908

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20321iMCV25,SXV25199706

main47721-33070iMCV20,21,SXV20199704-199908

main47721-33110iMCV20,21,SXV20199908

sub47721-33111

sub47715-32040

sub47771-32050

sub47875-30340

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20321iMCV25,SXV25199706

main47721-33070iMCV20,21,SXV20199704-199908

main47722-33110iMCV20,21,SXV20199908

sub47722-33111

sub47715-32040

sub47771-32050

sub47875-30340

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-33051iMCV25,SXV25199706

main47730-33100iMCV20,21,SXV20199704-199908

main47730-33160iMCV20,21,SXV20199908

47731BPISTON, REAR DISC BRAKE

main47731-20130iMCV2#,SXV2#199704-199908

main47731-33040iMCV20,21,SXV20199908

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43003iMCV2#,SXV2#199704

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-33051iMCV25,SXV25199706

main47750-33100iMCV20,21,SXV20199704-199908

main47750-33160iMCV20,21,SXV20199908

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iMCV20,21,SXV20199908

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-16020iMCV2#,SXV2#199704-199908

main47775-32020iMCV2#,SXV2#199704-199908

main47775-32050iMCV20,21,SXV20199908

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030iMCV20,21,SXV20199908

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iMCV20,21,SXV20199704

main90119-10445iMCV25,SXV25199706
