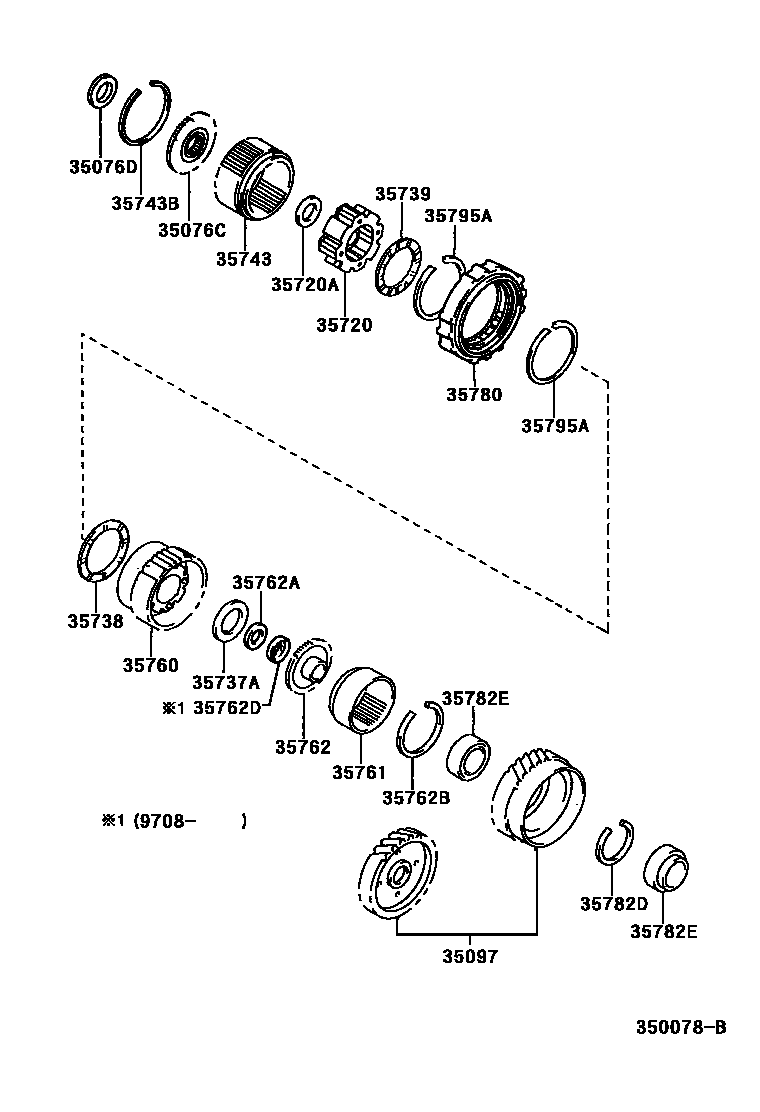

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A541E,A541F 0003 1A140E 0004 1U140E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-32030iSXV20199704-200112

main35076-33011iMCV21,25,SXV25199908-200112

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iSXV20199704-200112

main90374-31003iMCV2#,SXV25199704-199908

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-20040iSXV20199704-200112

main35097-33010iMCV21,25,SXV25199908-200112

35720GEAR ASSY, FRONT PLANETARY

main35720-17010iSXV20199704-200112

main35720-21020iMCV20199908-200112

sub35720-21030

main35720-32020iMCV2#,SXV25199704-199811

main35720-33010iMCV21,25,SXV25199908-200112

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iSXV20199704-200112

main90374-30015iMCV2#,SXV25199704-199908

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iMCV20199908

main35738-33010iMCV21,25,SXV25199908

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iMCV20199908-200112

main35738-32010×2iSXV20199704-200112

main35738-33020iMCV2#,SXV25199704-199908

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iSXV20199704-200112

main35739-33010iMCV2#,SXV25199704-199908

35743GEAR, FRONT PLANETARY RING

main35743-21010iMCV20199908-200112

sub35743-28010

main35743-32040iSXV20199704-200112

main35743-33020iMCV2#,SXV25199704-199908

35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-90002iMCV2#,SXV25199704-199908

35760GEAR ASSY, REAR PLANETARY

main35760-21020iMCV20199908-200112

sub35760-33030

main35760-32030iSXV20199704-200112

main35760-33020iMCV2#,SXV25199704-199908

35761GEAR, REAR PLANETARY RING

main35761-32010iSXV20199704-200112

main35761-32020iMCV2#,SXV25199704-199908

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iSXV20199704-200112

main35762-32021iMCV2#,SXV25199704-199708

main35762-33010iMCV2#,SXV25199708-199908

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-22002iMCV2#,SXV25199704-199708

main90374-22006iMCV21,25,SXV25199908-200112

main90374-24002iSXV20199704-200112

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-82002iMCV2#,SXV25199704-199908

main90521-90001iSXV20199704-200112

35762DRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-33020iMCV21,25,SXV25199908

35780CLUTCH ASSY, 1 WAY NO.2

main35780-33010iMCV2#,SXV25199704-199908

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iMCV20199908-200112

main90520-89002iMCV20199908-200112

sub90520-89004

main90521-67001iMCV2#,SXV2#199704-199908

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-40077×2iMCV2#,SXV2#199704-199908

main90366-60009×2iMCV20199908-200112

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iSXV20199908-200112

main35795-32010iSXV20199704-199908

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90520-99017×2iMCV2#,SXV25199704-199908

main90521-99011×2iSXV20199704-200112

21 parts on this diagram · 3 diagrams in section
