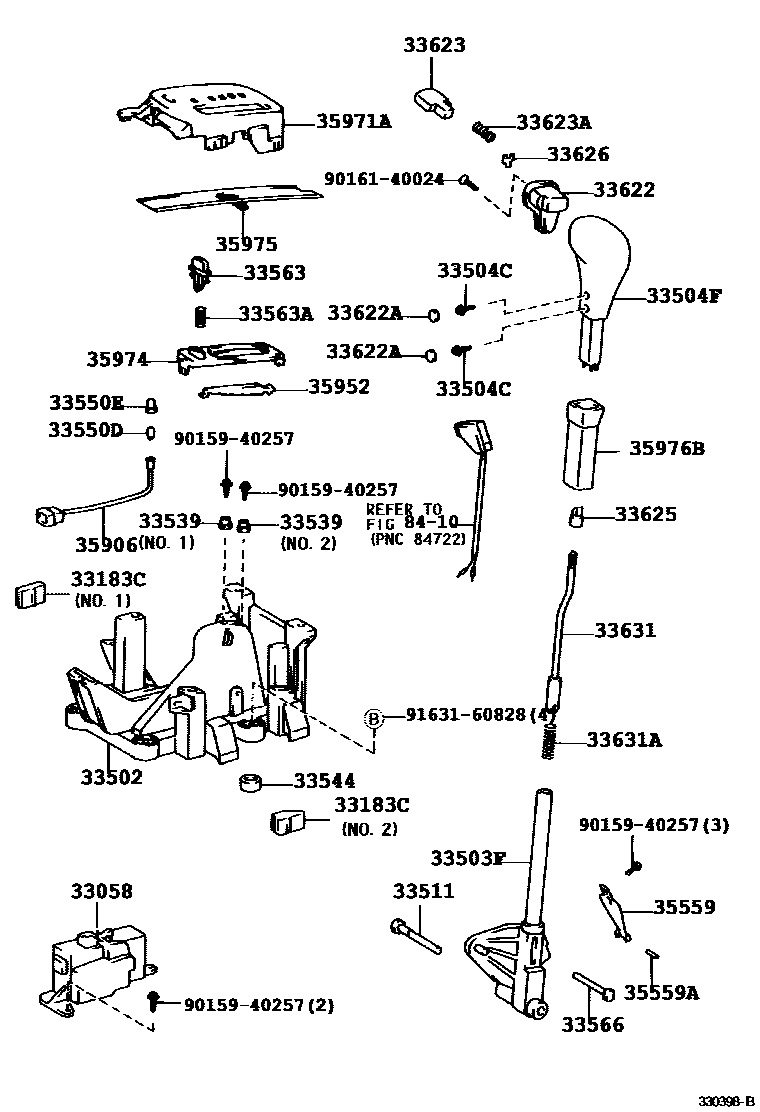

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33539CUSHION, SHIFT LEVER ANTI-RATTLE
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
sub33563-33130
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33566PIN, SHIFT LEVER STOP
33622COVER, SHIFT LEVER KNOB, NO.1
33622ACOVER, SHIFT LEVER KNOB, NO.2
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
35559SPRING, MANUAL DETENT
35559APIN (FOR MANUAL DETENT SPRING)
35906WIRE SUB-ASSY, INDICATOR LAMP
sub35906-33060
35952LENS, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
8410
9015940257
main90159-40257
9016140024
main90161-40024
9163160828
main91631-60828
34 parts on this diagram · 5 diagrams in section
