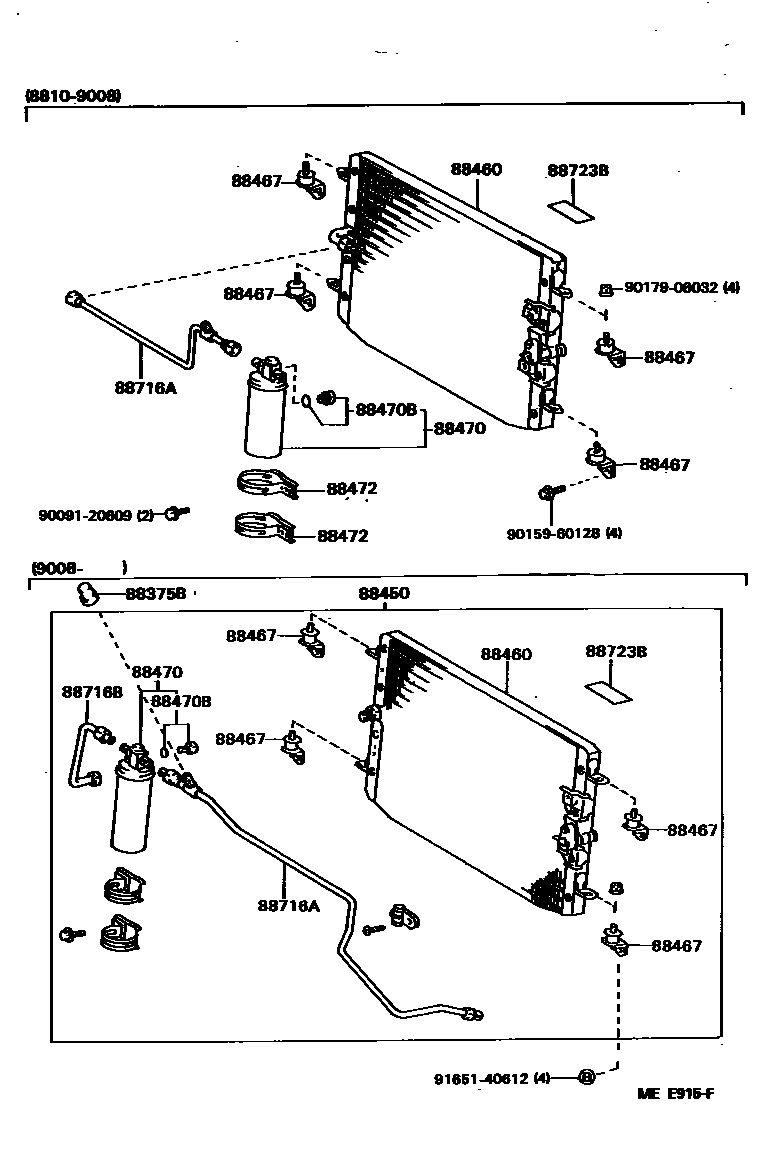

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88375BCAP, SERVICE VALVE, NO.1

main88375-24010iGX70199008-199302

main88375-30280iGX70,LX76,YX78199302-199704

88450CONDENSER ASSY, W/RECEIVER

main88450-22050iGX70199302-199704

main88460-22294iGX70199008-199302

88460CONDENSER ASSY, COOLER

main88460-22271iGX70198810-199008

sub88460-22231

main88460-22281iYX76198812-199302

main88460-22301iGX70199008-199302

main88460-22320iLX76198812-199302

main88460-22460iLX76199302-199409

main88460-22470iYX78199302-199704

main88460-22530iGX70199302-199704

88467CUSHION, COOLER CONDENSER, NO.1

main88467-22060×4iGX70,LX76,YX7#198810-199704

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iGX70,LX76,YX76198810-199302

main88471-34010iGX70,LX76,YX78199302-199704

88470BBOLT, FUSE

main88475-12020iGX70199302-199306

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090×2iGX70,LX76,YX76198810-199008

main88473-22040iYX78199302-199704

main88473-22050iLX76199302-199409

main88473-22060iGX70199302-199704

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22430iGX70198810-199008

main88716-22451iYX76198812-199302

main88716-22632iGX70199008-199302

main88716-22641iLX76198812-199302

main88716-2A290iGX70199302-199704

main88716-2A310iYX78199302-199704

main88716-2A350iLX76199302-199409

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-22491iGX70199008-199302

main88716-22531iYX76199008-199302

main88716-22651iLX76198812-199302

main88716-2A280iGX70199302-199704

main88716-2A320iYX78199302-199704

main88716-2A340iLX76199302-199409

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iGX70,LX76,YX78199302-199501

sub88733-30040

main88723-22040iGX70,LX76,YX76198912-199008

main88723-50140iGX70199501-199704

9009120609

main90091-20609

9015960128

main90159-60128

9017906032

main90179-06032

9165140612

main91651-40612

14 parts on this diagram · 6 diagrams in section
