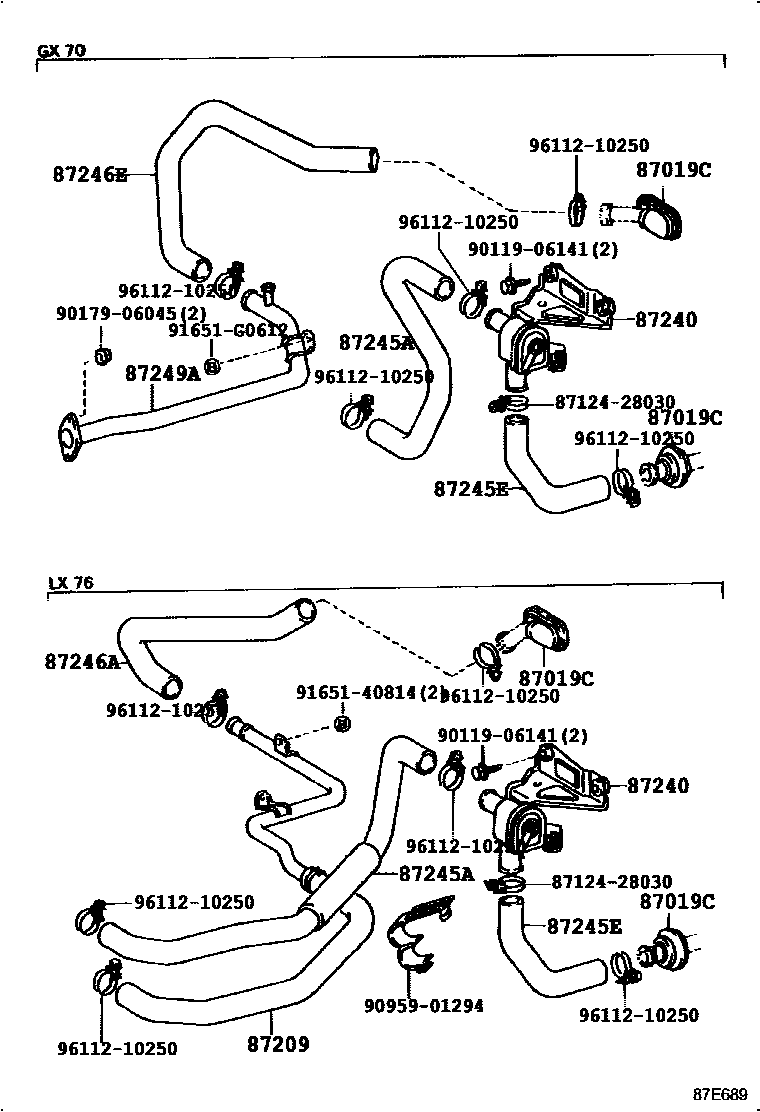

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90480-01272iGX70,LX76,YX76198810-199008

INLET

main90480-36011iGX70,LX76,YX76198810-199008

OUTLET

87209HOSE SUB-ASSY, WATER

main87209-22150iLX76198812-199409

87240VALVE ASSY, HEATER WATER

main87240-22261iGX70,LX76,YX76198810-199008

main87240-22270iGX70199008-199704

87245AHOSE, HEATER WATER, INLET A

main87245-22802iYX76198812-199302

main87245-2A220iLX76198812-199409

main87245-2A280iGX70198810-199704

main87245-2A530iYX78199302-199704

87245EHOSE, HEATER WATER, INLET E

main87245-22620iGX70,LX76,YX7#198810-199704

87246AHOSE, HEATER WATER, OUTLET A

main87245-22810iYX76198812-199302

main87245-2A230iLX76198812-199409

main87245-2A540iYX78199302-199704

87246EHOSE, HEATER WATER, OUTLET E

main87245-2A290iGX70198810-199704

87249APIPE, HEATER WATER OUTLET, A

main87208-22182iGX70198810-199007

main87208-22260iGX70199007-199111

main87208-22261iGX70199111-199205

main87208-22262iGX70199205-199704

8712428030CLAMP, HEATER

main87124-28030

9011906141

main90119-06141

9017906045

main90179-06045

9095901294

main90959-01294

9165140814

main91651-40814

91651G0612

main91651-G0612

9611210250

main96112-10250

15 parts on this diagram · 3 diagrams in section
