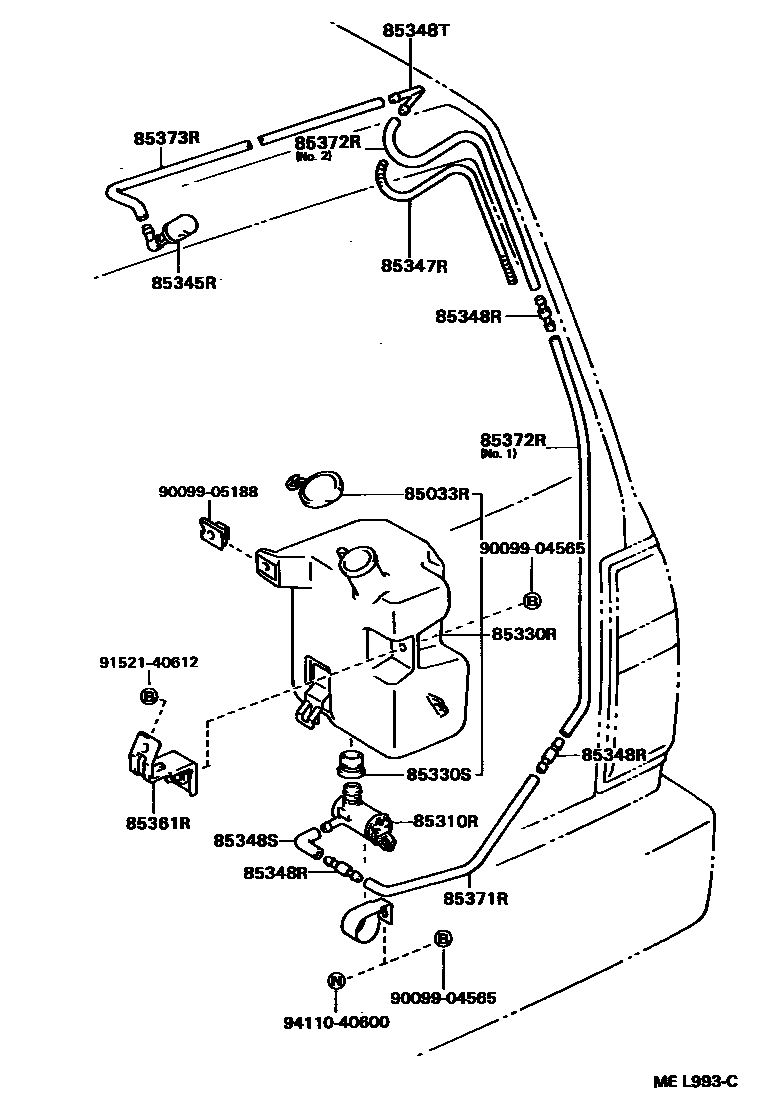

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85332-30050iGX70,LX76,YX7#198810-199704

85310RMOTOR ASSY, REAR WASHER

main85310-16050iGX70,LX76,YX78199302-199704

sub85330-60140¥5,500

main85310-30060iGX70,LX76,YX76198810-199302

sub85310-89115¥0

85330RJAR ASSY, REAR WASHER

main85331-22430iGX70,LX76,YX7#198810-199704

85330SBUSH, REAR WASHER JAR

main90099-32089iGX70,LX76,YX7#198810-199704

85345RNOZZLE, REAR WASHER

main85341-16090iGX70,LX76,YX7#198810-199704

85347RSPRING

main85349-22191iGX70,LX76,YX7#198810-199704

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iGX70,LX76,YX7#198810-199704

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iGX70,LX76,YX7#¥0198810-199704

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-12360iGX70,LX76,YX7#¥0198810-199704

85361RHOLDER, REAR WASHER

main85361-22430iGX70,LX76,YX7#198810-199704

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iGX70,LX76,YX7#198810-199704

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iGX70,LX76,YX7#198810-199704

main90446-07001iGX70,LX76,YX7#198810-199704

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iGX70,LX76,YX7#198810-199704

9009904565

main90099-04565¥0

9009905188

main90099-05188

9152140612

main91521-40612¥110

9411040600

main94110-40600¥80

17 parts on this diagram · 1 diagram in section
