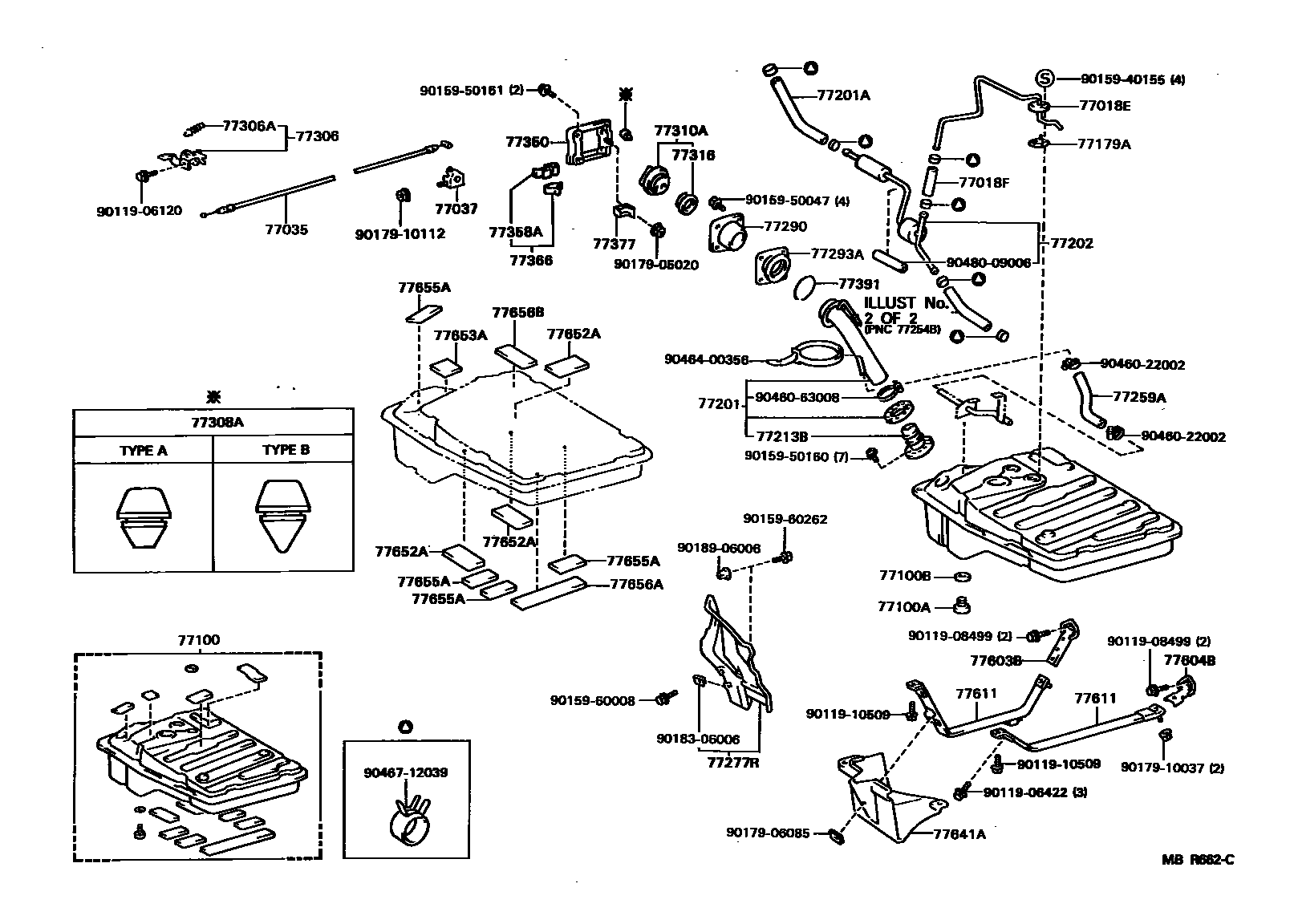

FUEL TANK & TUBE
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018FHOSE, FUEL TANK EVAPORATION VENT
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77202TUBE SUB-ASSY, BREATHER
77213BHOSE, FUEL TANK TO FILLER PIPE
77259AHOSE, FUEL(FOR BREATHER TUBE)
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77358ASTOPPER, FUEL FILLER OPENING LID
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH
77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH
77611BAND, FUEL TANK
77641APROTECTOR, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77655ACUSHION, FUEL TANK, NO.5
77656ACUSHION, FUEL TANK, NO.4
77656BCUSHION, FUEL TANK, NO.6
9011906120
main90119-06120
9011906422
main90119-06422
9011908499
main90119-08499
9011910509
main90119-10509
9015940155
main90159-40155
9015950047
main90159-50047
9015950160
main90159-50160
9015950161
main90159-50161
9015960008
main90159-60008
9015960262
main90159-60262
9017905020
main90179-05020
9017906085
main90179-06085
9017910037
main90179-10037
9017910112
main90179-10112
9018306006
main90183-06006
9018906006
main90189-06006
9046022002
main90460-22002
9046063008
main90460-63008
9046400356
main90464-00356
9046712039
main90467-12039
9048009006
main90480-09006
56 parts on this diagram · 6 diagrams in section
