BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-16010iGX70,LX76,YX7#198810-199704

main74451-22020iLX76198812-199409

74414DSUPPORT, BATTERY CARRIER

main74414-22010iLX76198812-199302

74431TRAY, BATTERY

main74411-22100iLX76198812-199409

main74431-22010iYX7#198812-199704

main74431-22030iYX78199302-199704

main74431-22040iGX70,LX76198810-199704

74473SPACER, BATTERY

main74473-22010iGX70,LX76,YX7#198810-199704

74474ASPACER, BATTERY, NO.2

main74474-22010iGX70,LX76,YX7#198810-199704

74481CLAMP, BATTERY HOLD DOWN

main74404-22170iYX7#198812-199704

main74404-22180iYX78199302-199704

main74404-22210iLX76198812-199409

9011906352

main90119-06352

9011906451

main90119-06451

9017906146

main90179-06146

9165140614

main91651-40614

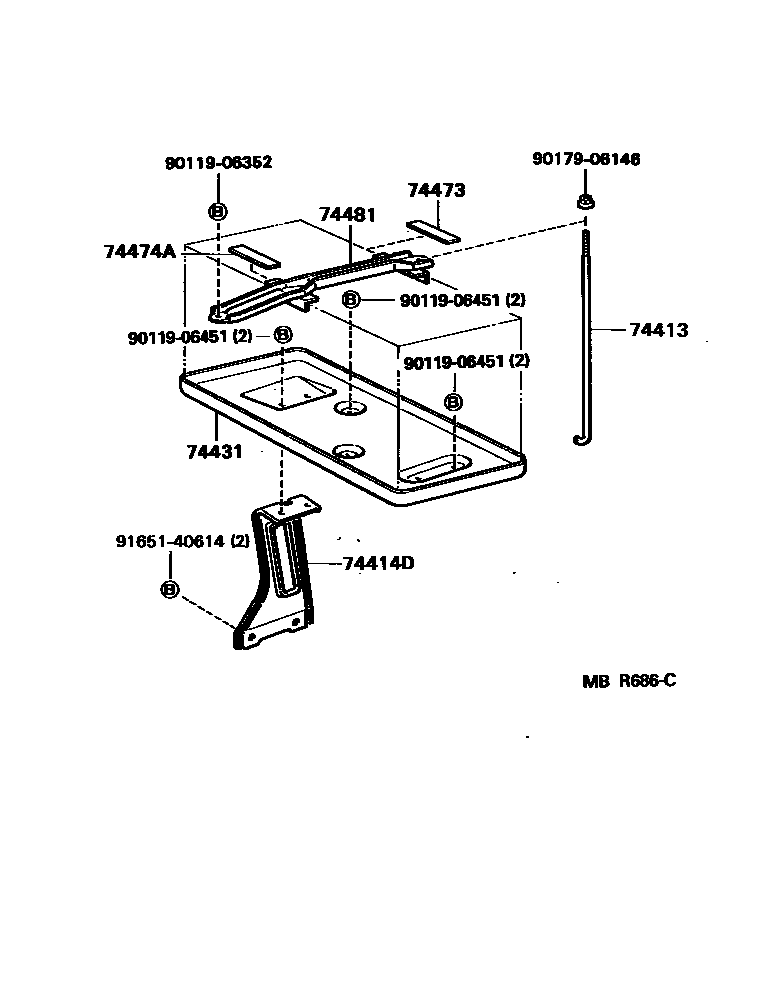

10 parts on this diagram · 1 diagram in section
