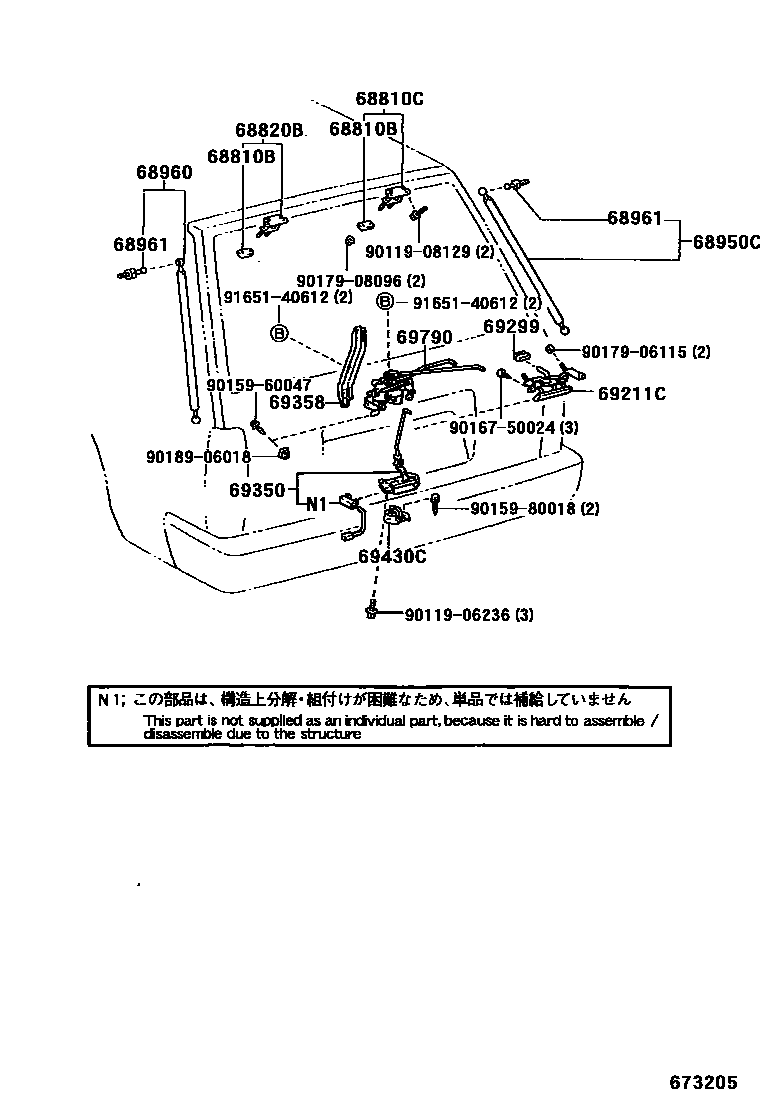

BACK DOOR LOCK & HANDLE

68810BPAD, BACK DOOR HINGE

main68838-23011×2iGX70,LX76,YX7#198810-199704

68810CHINGE ASSY, BACK DOOR, RH

main68810-23011iGX70,LX76,YX7#198810-199704

68820BHINGE ASSY, BACK DOOR, LH

main68810-23011iGX70,LX76,YX7#198810-199704

68950CSTAY ASSY, BACK DOOR, RH

main68950-29395iLX76,YX7#..DX198812-199704

main68950-29405iGX70,YX7#..GL,LG198810-199704

68960STAY ASSY, BACK DOOR, LH

main68960-29235iLX76,YX7#..DX198812-199704

main68960-29245iGX70,YX7#..GL,LG198810-199704

68961BOLT, BACK DOOR STAY

main68961-23010×4iGX70,LX76,YX7#198810-199704

69211CHANDLE, BACK DOOR OUTSIDE

main69209-23010iGX70,YX7#..GL,LG198810-199704

main69211-23010iLX76,YX7#..DX198812-199704

69299GROMMET, BACK DOOR HANDLE

main69299-91701iGX70,LX76,YX7#198810-199704

69350LOCK ASSY, BACK DOOR

main69350-23020iGX70,LX76,YX78199302-199704

main69350-91610iGX70,LX76,YX76198810-199302

sub69350-23010

69358PROTECTOR, BACK DOOR LOCK

main69358-23010iGX70,LX76,YX7#198810-199704

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-23010iGX70,LX76,YX7#198810-199704

69790CONTROL ASSY, BACK DOOR LOCK

main69790-23010iLX76,YX7#..DX198812-199704

main69790-23020iGX70,YX7#..GL,LG198810-199704

9011906236

main90119-06236

9011908129

main90119-08129

9015960047

main90159-60047

9015980018

main90159-80018

9016750024

main90167-50024

9017906115

main90179-06115

9017908096

main90179-08096

9018906018

main90189-06018

9165140612

main91651-40612

21 parts on this diagram · 1 diagram in section
