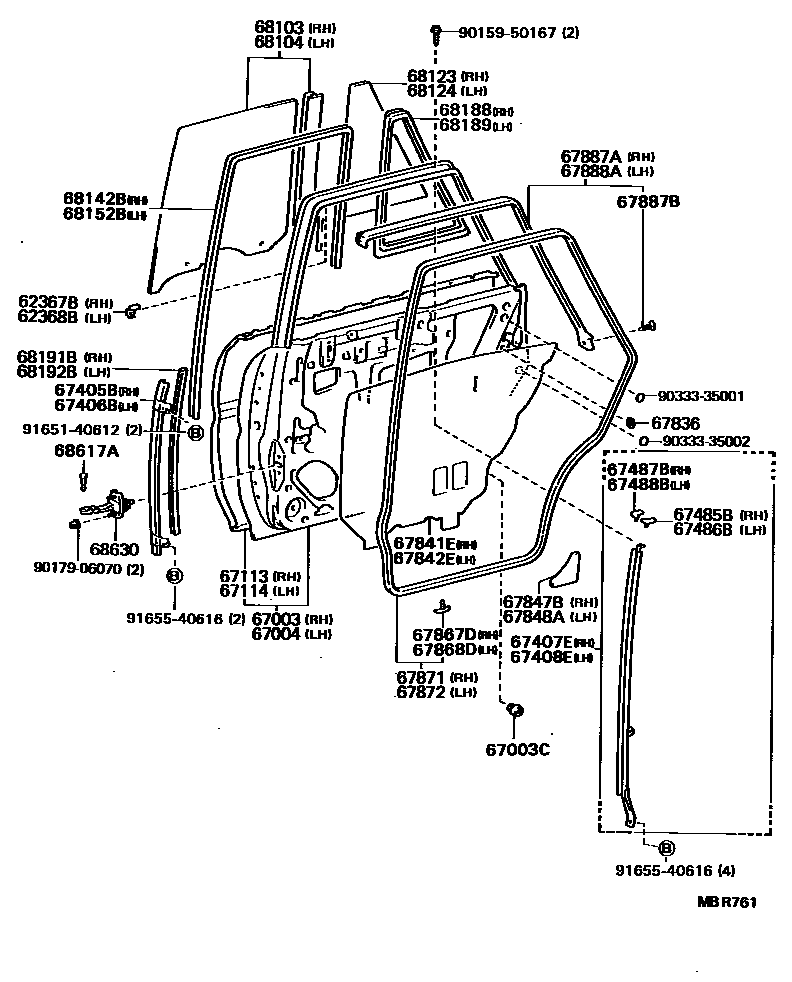

REAR DOOR PANEL & GLASS
62367BCLIP, DOOR WINDOW GLASS, REAR RH
62368BCLIP, DOOR WINDOW GLASS, REAR LH
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH
67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH
67487BSEAL, REAR DOOR DIVISION BAR, RH
67488BSEAL, REAR DOOR DIVISION BAR, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123GLASS, REAR DOOR WINDOW, RH
68124GLASS, REAR DOOR WINDOW, LH
68142BRUN, REAR DOOR WINDOW, RH
68152BRUN, REAR DOOR WINDOW, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68191BRUN, REAR DOOR GLASS, NO.2 RH
68192BRUN, REAR DOOR GLASS, NO.2 LH
68617APIN, REAR DOOR CHECK
68630CHECK ASSY, REAR DOOR
9015950167
main90159-50167
9017906070
main90179-06070
9033335001
main90333-35001
9033335002
main90333-35002
9165140612
main91651-40612
9165540616
main91655-40616
45 parts on this diagram · 2 diagrams in section
