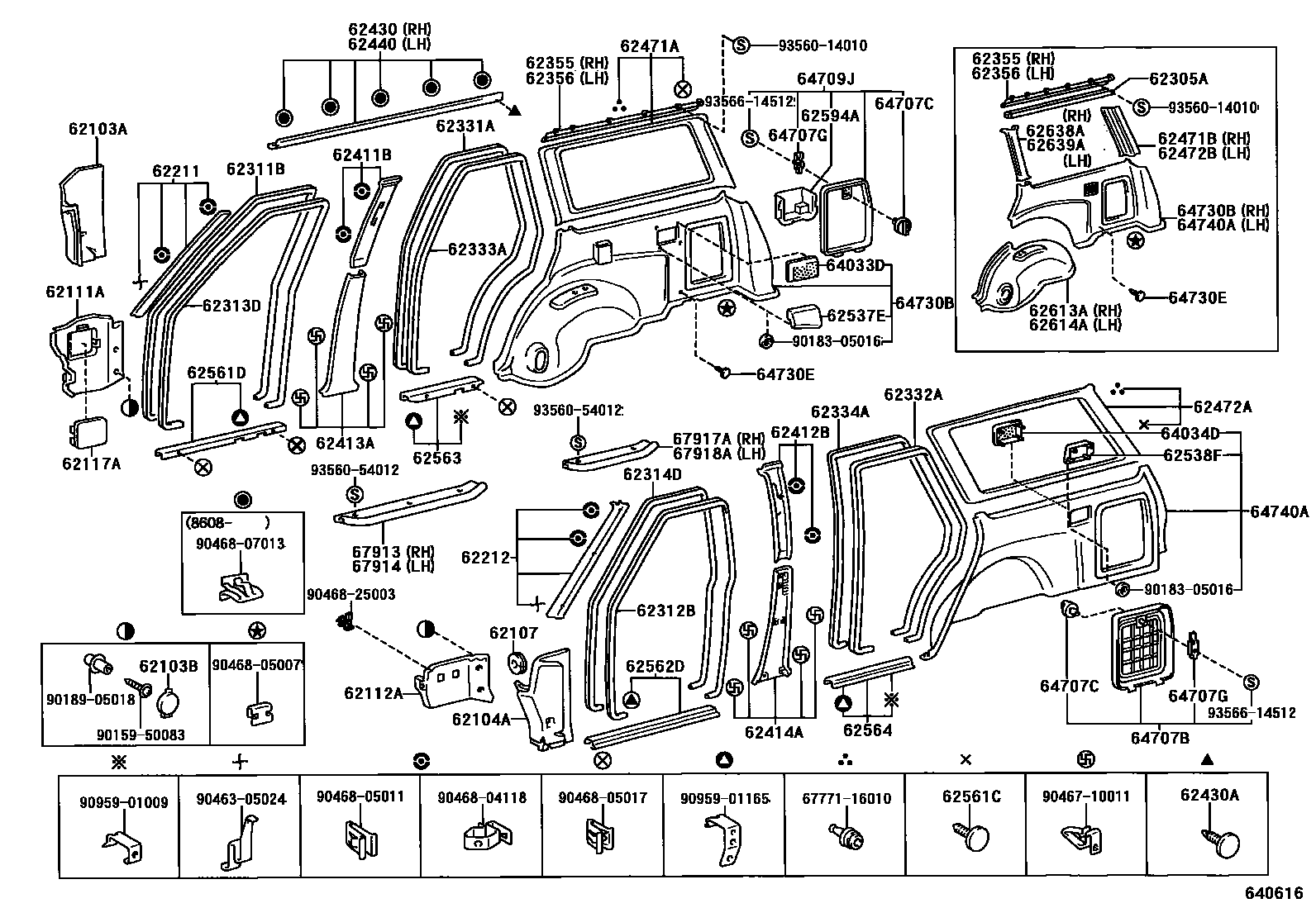

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
62103BPLUG(FOR COWL SIDE TRIM BOARD)
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
62107INSULATOR SUB-ASSY, COWL SIDE, UPPER RH
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
62305ATRIM SUB-ASSY, QUARTER WINDOW INSIDE
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62313DTRIM, FRONT DOOR OPENING, RH
MEDIUM GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
MEDIUM GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62333ATRIM, REAR DOOR OPENING, RH
62334ATRIM, REAR DOOR OPENING, LH
62355RETAINER, QUARTER WINDOW INSIDE TRIM, RH
62356RETAINER, QUARTER WINDOW INSIDE TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62430GARNISH ASSY, ROOF SIDE RAIL, RH
62430ACLIP, ROOF SIDE RAIL GARNISH
62440GARNISH ASSY, ROOF SIDE RAIL, LH
62471AGARNISH, ROOF SIDE, INNER RH
SABLE,TRIM4#
NEW MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
62471BCOVER, REAR PILLAR, RH
MEDIUM GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
62472AGARNISH, ROOF SIDE, INNER LH
SABLE,TRIM4#
NEW MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
62472BCOVER, REAR PILLAR, LH
MEDIUM GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
62537ELID, QUARTER TRIM BELT HOLE, RH
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
62538FLID, QUARTER TRIM BELT HOLE, LH
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH
62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH
62563PROTECTOR, ROCKER PANEL, INNER REAR RH
62564PROTECTOR, ROCKER PANEL, INNER REAR LH
62594APOCKET, QUARTER TRIM, NO.1
62613ACOVER, QUARTER WHEEL HOUSE, RH
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
62614ACOVER, QUARTER WHEEL HOUSE, LH
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
62638AGARNISH, QUARTER PILLAR, RH
MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
62639AGARNISH, QUARTER PILLAR, LH
MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
64033DGRILLE SUB-ASSY, REAR SPEAKER, RH
SABLE,TRIM4#
MEDIUM GRAY,TRIM1#
64034DGRILLE SUB-ASSY, REAR SPEAKER, LH
SABLE,TRIM4#
MEDIUM GRAY,TRIM1#
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
sub64707-23060
sub64707-23060
sub64707-23060
sub64707-23060
sub64707-23060
64707CKNOB, JACK COVER
64707GSTOPPER, JACK COVER
64709JCOVER SUB-ASSY, DECK TRIM POCKET
sub64709-23060
sub64709-23060
sub64709-23060
sub64709-23060
sub64709-23060
64730BPANEL ASSY, DECK TRIM SIDE, RH
sub64730-23140
sub64730-23140
MEDIUM GRAY,TRIM1#
sub64730-23130
sub64730-23130
sub64730-23130
sub64730-23130
sub64730-23130
sub64730-23130
sub64730-23130
sub64730-23130
sub64730-23130
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740APANEL ASSY, DECK TRIM SIDE, LH
sub64740-23140
sub64740-23140
MEDIUM GRAY,TRIM1#
sub64740-23130
sub64740-23130
sub64740-23130
sub64740-23130
sub64740-23130
sub64740-23130
sub64740-23130
sub64740-23130
sub64740-23130
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
6777116010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16010
9015950083
main90159-50083
9018305016
main90183-05016
9018905018
main90189-05018
9046305024
main90463-05024
9046710011
main90467-10011
9046804118
main90468-04118
9046805007
main90468-05007
9046805011
main90468-05011
9046805017
main90468-05017
9046807013
main90468-07013
9046825003
main90468-25003
9095901009
main90959-01009
9095901165
main90959-01165
9356014010
main93560-14010
9356054012
main93560-54012
9356614512
main93566-14512
73 parts on this diagram · 1 diagram in section
