MAT & CARPET

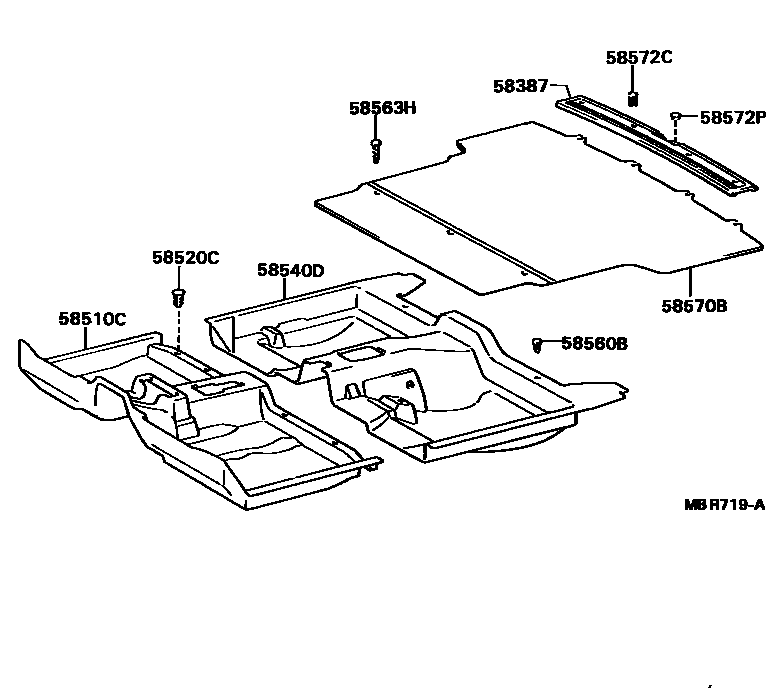

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-23010-06i198810-199704
SABLE,TRIM4#
sub58387-23010
main58387-23010-12i198810-199302
NEW MAROON,TRIM3#
sub58387-23010
main58387-23010-13i199008-199704
MEDIUM GRAY,TRIM1#
sub58387-23010
main58387-23010-14i198810-199008
BLUE,TRIM8#
sub58387-23010
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-23010-02i199008-199302
sub58510-23030
main58510-23010-03i199008-199509
sub58510-23030
main58510-23010-06i199008-199509
sub58510-23030
main58510-23020-B1i199509-199704
MEDIUM GRAY,TRIM1#
sub58510-23030
main58510-23020-E1i199509-199704
SABLE,TRIM4#
sub58510-23030
main58510-23030-B1i199509-199704
sub58510-23030
main58510-23030-E2i199509-199704
sub58510-23030
main58510-91625-02i198810-199302
NEW MAROON,TRIM3#
sub58510-91625
sub58510-23020
main58510-91625-03i199008-199509
MEDIUM GRAY,TRIM1#
sub58510-91625
sub58510-23020
main58510-91625-04i198810-199008
BLUE,TRIM8#
sub58510-91625
sub58510-23020
main58510-91625-06i198810-199509
SABLE,TRIM4#
sub58510-91625
sub58510-23020
main58510-91626-03i199008-199409
MEDIUM GRAY,TRIM1#
main58510-91626-04i198812-199008
BLUE,TRIM8#
main58510-91626-06i198812-199302
SABLE,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06055-06i198810-199704
SABLE,TRIM4#
sub90467-06055
main90467-06055-12i198810-199302
NEW MAROON,TRIM3#
sub90467-06055
main90467-06055-14i198810-199008
BLUE,TRIM8#
sub90467-06055
main90467-06055-23i199008-199704
MEDIUM GRAY,TRIM1#
sub90467-06055
58540DCARPET ASSY, FLOOR, REAR
main58540-22510-06i198810-198907
SABLE,TRIM4#
sub58540-22510
sub58540-91619
main58540-22510-12i198810-198907
NEW MAROON,TRIM3#
sub58540-22510
sub58540-91619
main58540-22510-14i198810-198907
BLUE,TRIM8#
sub58540-22510
sub58540-91619
main58540-22570-06i198812-198907
SABLE,TRIM4#
sub58540-22570
sub58540-91618
main58540-22570-14i198812-198907
BLUE,TRIM8#
sub58540-22570
sub58540-91618
main58540-23020-B1i199509-199704
MEDIUM GRAY,TRIM1#
main58540-23030-B1i199509-199704
MEDIUM GRAY,TRIM1#
sub58540-23040
main58540-23030-E1i199509-199704
SABLE,TRIM4#
sub58540-23040
main58540-23040-B1i199509-199704
sub58540-23040
main58540-23040-E1i199509-199704
sub58540-23040
main58540-91616-02i199008-199302
sub58540-23040
main58540-91616-03i199008-199509
sub58540-23040
main58540-91616-06i199008-199509
sub58540-23040
main58540-91618-03i199008-199509
MEDIUM GRAY,TRIM1#
sub58540-23020
main58540-91618-04i198907-199008
BLUE,TRIM8#
sub58540-23020
main58540-91618-06i198907-199302
SABLE,TRIM4#
sub58540-23020
main58540-91619-02i198907-199302
NEW MAROON,TRIM3#
sub58540-23030
main58540-91619-03i199008-199509
MEDIUM GRAY,TRIM1#
sub58540-23030
main58540-91619-04i198907-199008
BLUE,TRIM8#
sub58540-23030
main58540-91619-06i198907-199509
SABLE,TRIM4#
sub58540-23030
58560BCLIP(FOR FLOOR CARPET, REAR)
main90467-07158-01i199302-199704
BLACK,TRIM1#,4#
sub90467-07158
main90467-07158-01i198810-199008
BLACK,TRIM3#,4#,8#
sub90467-07158
main90467-07158-01i199008-199302
BLACK,TRIM1#,3#,4#
sub90467-07158
58563HCLIP(FOR REAR FLOOR MAT)
main90467-06016-48i198812-199008
BLUE,TRIM8#
sub90467-06016
sub90467-07049
main90467-06016-49i199008-199704
GRAY,TRIM1#
sub90467-06016
sub90467-07049
main90467-06016-57i198812-199302
SABLE,TRIM4#
sub90467-06016
sub90467-07049
58570BMAT ASSY, REAR FLOOR
main58570-23040-06i198812-199302
SABLE,TRIM4#
sub58570-23040
main58570-23040-13i199008-199704
MEDIUM GRAY,TRIM1#
sub58570-23040
main58570-23040-14i198812-199008
BLUE,TRIM8#
sub58570-23040
58572CCLIP, REAR FLOOR MAT SET
main90467-06017-41i198810-199302
NEW MAROON,TRIM3#
sub90467-06017
main90467-06017-48i198810-199008
BLUE,TRIM8#
sub90467-06017
main90467-06017-58i198810-199704
SABLE,TRIM4#
sub90467-06017
main90467-06017-59i199008-199704
MEDIUM GRAY,TRIM1#
sub90467-06017
58572PPLUG, HOLE(FOR SET PLATE)
main90950-01484-06i198810-199704
SABLE,TRIM4#
sub90950-01484
main90950-01484-12i198810-199302
NEW MAROON,TRIM3#
sub90950-01484
main90950-01484-13i199008-199704
MEDIUM GRAY,TRIM1#
sub90950-01484
main90950-01484-14i198810-199008
BLUE,TRIM8#
sub90950-01484

9 parts on this diagram · 2 diagrams in section
