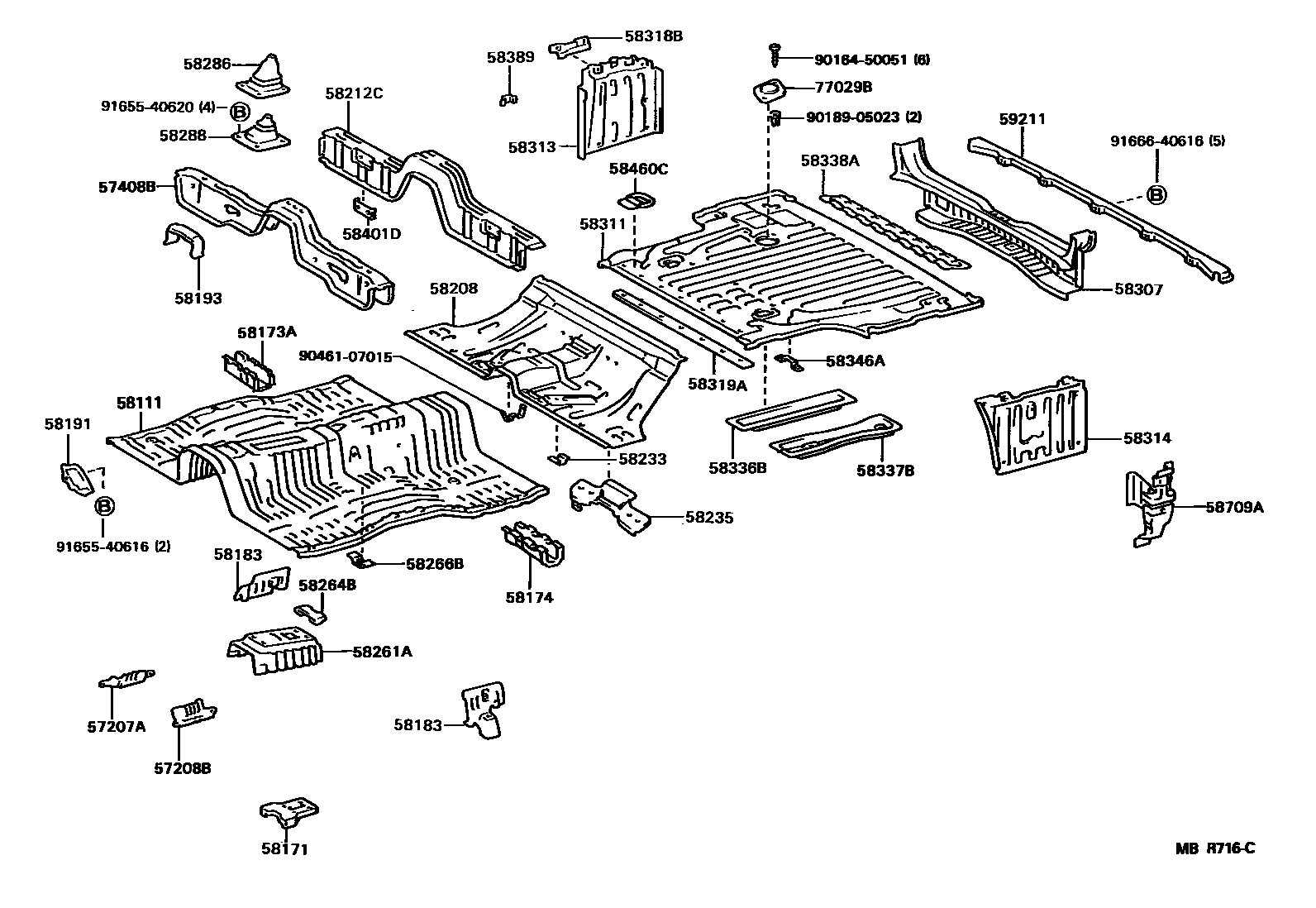

FLOOR PAN & LOWER BACK PANEL
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
58171REINFORCEMENT, PARKING BRAKE BASE
58173ADEFLECTOR, FRONT FLOOR STONE, RH
58174DEFLECTOR, FRONT FLOOR STONE, LH
58183BRACKET, FRONT SEAT MOUNTING, INNER
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58233BRACKET, EXHAUST PIPE MOUNTING
58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING
58261ACOVER, TRANSMISSION
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58266BBRACKET, FUEL TUBE CLAMP
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58318BREINFORCEMENT, WASHER TANK BRACKET
58319APLATE, REAR FLOOR PANEL, FRONT
58336BREINFORCEMENT, REAR FLOOR PAN
58337BREINFORCEMENT, NO.7 BODY MOUNTING
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58389BRACKET, REAR WASHER TANK MOUNTING, NO.2
58401DBRACKET SUB-ASSY, REAR SEAT SUPPORT, NO.1
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58709ACARRIER SUB-ASSY, JACK
59211DEFLECTOR, REAR BUMPER STONE
77029BCOVER SUB-ASSY, FUEL SENDER GAGE
9016450051
main90164-50051
9018905023
main90189-05023
9046107015
main90461-07015
9165540616
main91655-40616
9165540620
main91655-40620
9166640616
main91666-40616
41 parts on this diagram · 2 diagrams in section
